Installation instructions Monza 5-point-harness

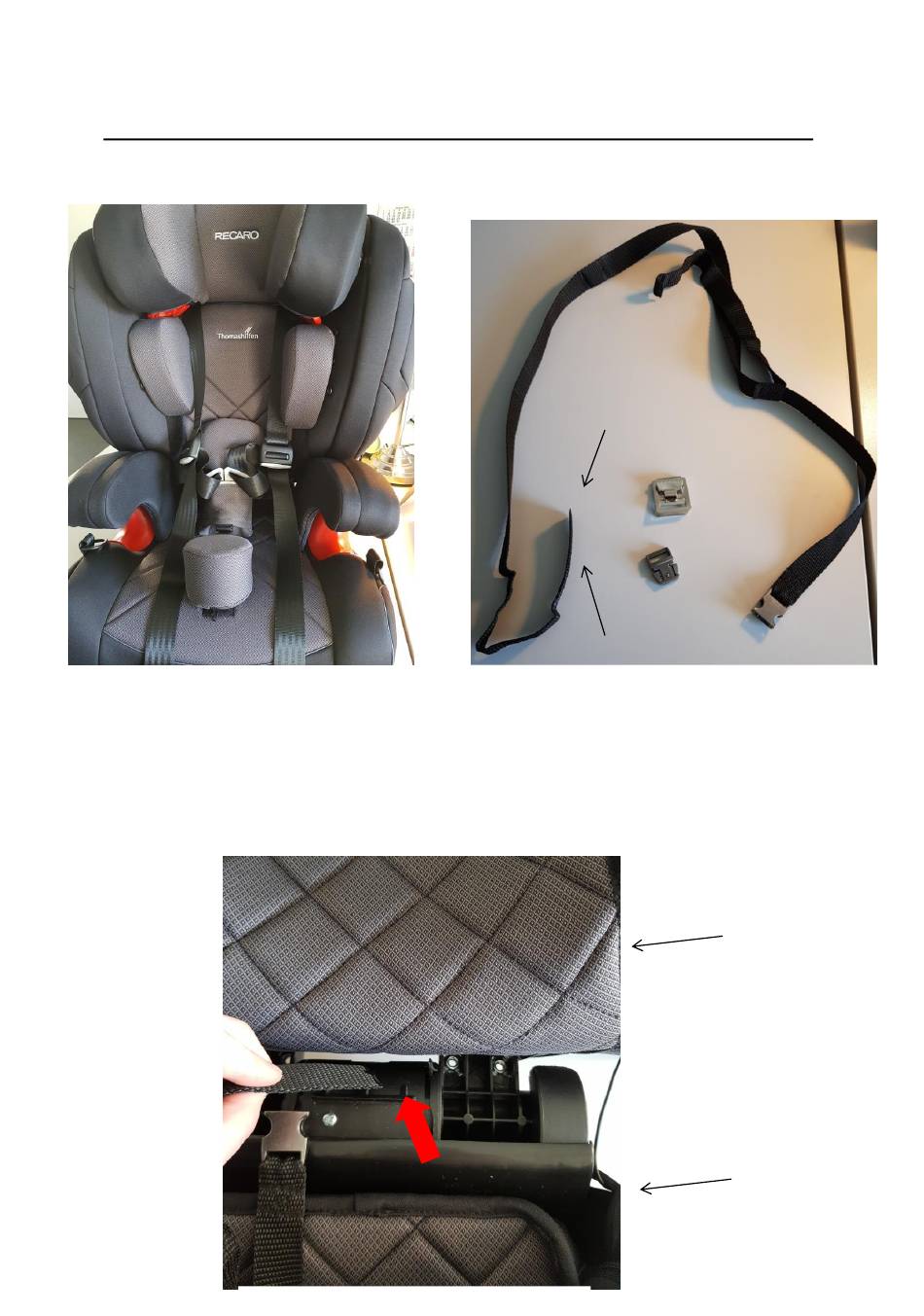

The first step is to attach the crotch strap:
(2. crotch strap)

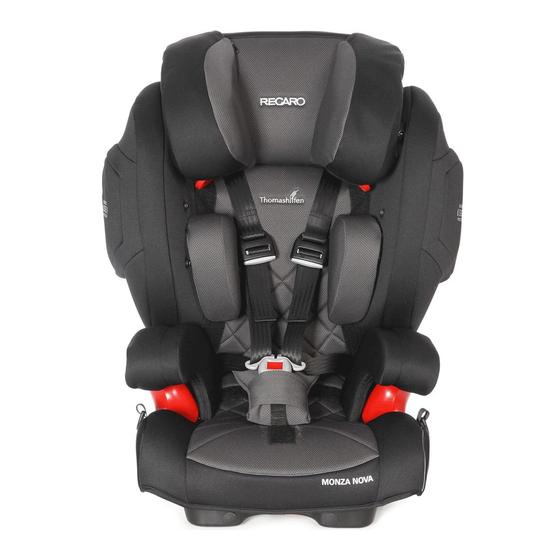

(1. fully fitted belt in the car seat)
To do so, fold the backrest backwards (if installed, remove the back stabilisers).
Afterwards, the belt side without buckle (marked with arrows in the second
picture) is inserted between the backrest and seat (see third picture). Then
place this end of the belt centrally under the seat.
Backrest
Seat
(3. Gap between backrest and seat.)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for RECARO Monza
Summary of Contents for RECARO Monza
- Page 1 Installation instructions Monza 5-point-harness The first step is to attach the crotch strap: (2. crotch strap) (1. fully fitted belt in the car seat) To do so, fold the backrest backwards (if installed, remove the back stabilisers). Afterwards, the belt side without buckle (marked with arrows in the second picture) is inserted between the backrest and seat (see third picture).
- Page 2 Now thread the other side of the strap, which has a buckle, between the fabric pad and foam (like in the fourth picture). Now pass the buckle under the pad and pull the short end through the hole in the foam upwards (as shown in the fifth picture).
- Page 3 Finally put the two buckles together so that they are centrally under the seat (see picture). Now the belt buckle has to be attached:...
- Page 4 Guide the short strap which was passed through the foam through the abduction block. Then they guide the belt through the plastic adjuster from behind then from the front to the back through the top slit. Now the adjuster should look like in the picture. Further, pull the belt through the strap in the belt buckle from the rear.
- Page 5 Finally, pull the end through the black plastic adjuster as indicated by the arrows. Attach shoulder straps:...
- Page 6 The strap end with two eyelets on the headrest screws (screw + nut). For a shorter strap, the lower eyelet can be used. Then pull the shoulder straps between the headrest and the backrest forward onto the seat. Guide the other end of the belt to the side between seat and backrest and screw it on.
