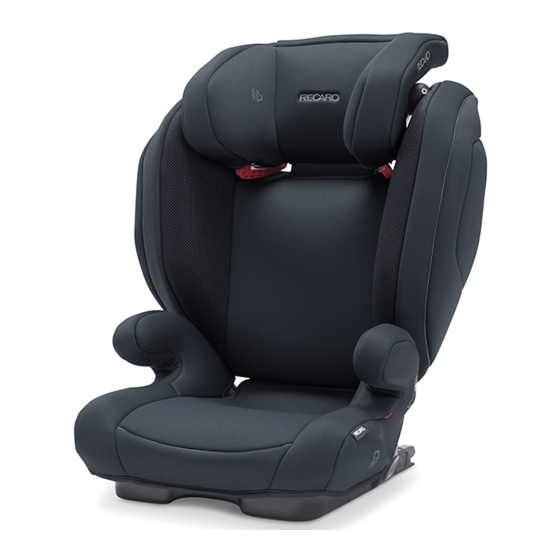

Monza Seatfix / Monza

Assembly and Usage Instructions

Group II and III (30-80 lb / 15-36 kg)

Only suitable for use in vehicles fitted with approved 3-point safety belts that conform with ECE Regulation No.

16 or comparable standards.

This is a seat in weight class II and III for children weighing between 30 and 80 lb (15 and 36 kg).

These Assembly and Usage Instructions must be handed over to the buyer.

Subject to printing errors, mistakes and technical changes.

WARNING: Keep for future reference.

Manufacturer:

RECARO GmbH & Co. KG, Competence Center Child Safety

Guttenbergstraße 2, 95352 Marktleugast - Mannsflur

Phone: +49/(0)9255/77-0, Fax: +49/(0)9255/77-13

e-mail: info@recaro-cs.com, www.recaro-cs.com

sto5668-6-06 - Version 220311

Need help?

Do you have a question about the Monza Seatfix and is the answer not in the manual?

Questions and answers

Summary of Contents for RECARO Monza Seatfix

Page 1 These Assembly and Usage Instructions must be handed over to the buyer. Subject to printing errors, mistakes and technical changes. WARNING: Keep for future reference. Manufacturer: RECARO GmbH & Co. KG, Competence Center Child Safety Guttenbergstraße 2, 95352 Marktleugast - Mannsflur Phone: +49/(0)9255/77-0, Fax: +49/(0)9255/77-13 e-mail: info@recaro-cs.com, www.recaro-cs.com...
Page 2 RECARO. For us, outstanding safety, best ergonomics, state-of-the- art design, comfort and highest quality are obligatory. For example, at RECARO, all child seats are treated like car seats and are tested in accordance with the strict requirements of the automotive industry. The...
Page 3 5670-6-01 The cable to the sound system can be easily placed under the cushion. The opening for this is located next to the pocket for your MP3/CD player. Attention! Avoid loops! Store any excess length in the pocket. 4760F-4-02/1 Now inflate the adjustable air cushion to the standard “full”...
Page 4 5671-6-01 Installation with Seatfix Attention! To secure your child, always use the 3-point safety belt of the vehicle! The Seatfix system improves the level of protection in the event of a side impact, and secures the seat when it is not in use. Insert the insertion aids through the upholstery slot of the backrest and seat area onto the Isofix brackets.
Page 5 5672-6-01 Note! In the event of an impact at more than 6 mph (10 km/h), the child seat may be damaged and must be replaced and checked in the factory. The possible release of the connectors is intentional and increases the level of safety.
Page 6 5673-6-01 The belt lock must be seated below the belt guide of the seat. The lap belt must be placed as low as possible above the groin of the child. 4755F-4-03/1 Subsequently insert the diagonal belt in the belt guide on the headrest.
Page 7 5674-6-01 The optimum location of the belt is along the centre of the collarbone (Fig. 16) and not too close to the neck of your child. 4688-4-02/1 The belt guide should be set slightly above the shoulder. Your child will then be properly secured by the seatbelt.
Page 8 5675-6-01 The reinforcing ribs on the sides improve the safety of your child in the event of a side impact and permit comfortable ventilation along the complete backrest. 4728F-4-02/1 To remove the seat cover, initially release all the elastic and buttonhole connections. 4757F-4-00/1 Pull the lower plastic strips out from the pertinent slots.
Page 9 5676-6-01 Pull the seat cushion off towards the front. Proceed in the same manner with the backrest and headrest. To reattach the cover, proceed in the reverse order. 4759F-4-01/1 • The child seat is only intended for use in • Bulky clothing must be removed before you strap your child in.
Page 10 (e.g. car seat cover) for the seats of your • Weight category 30 to 80 lb (15 to 36 kg). vehicle. RECARO GmbH & Co. KG and • The seat and belt can be cleaned with its dealers are not liable for possible lukewarm water and soap.
