BOXLIGHT Studio Experience Matinee 1HD User Manual

Studio experience matinee 1hd home theater projector user's guide
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

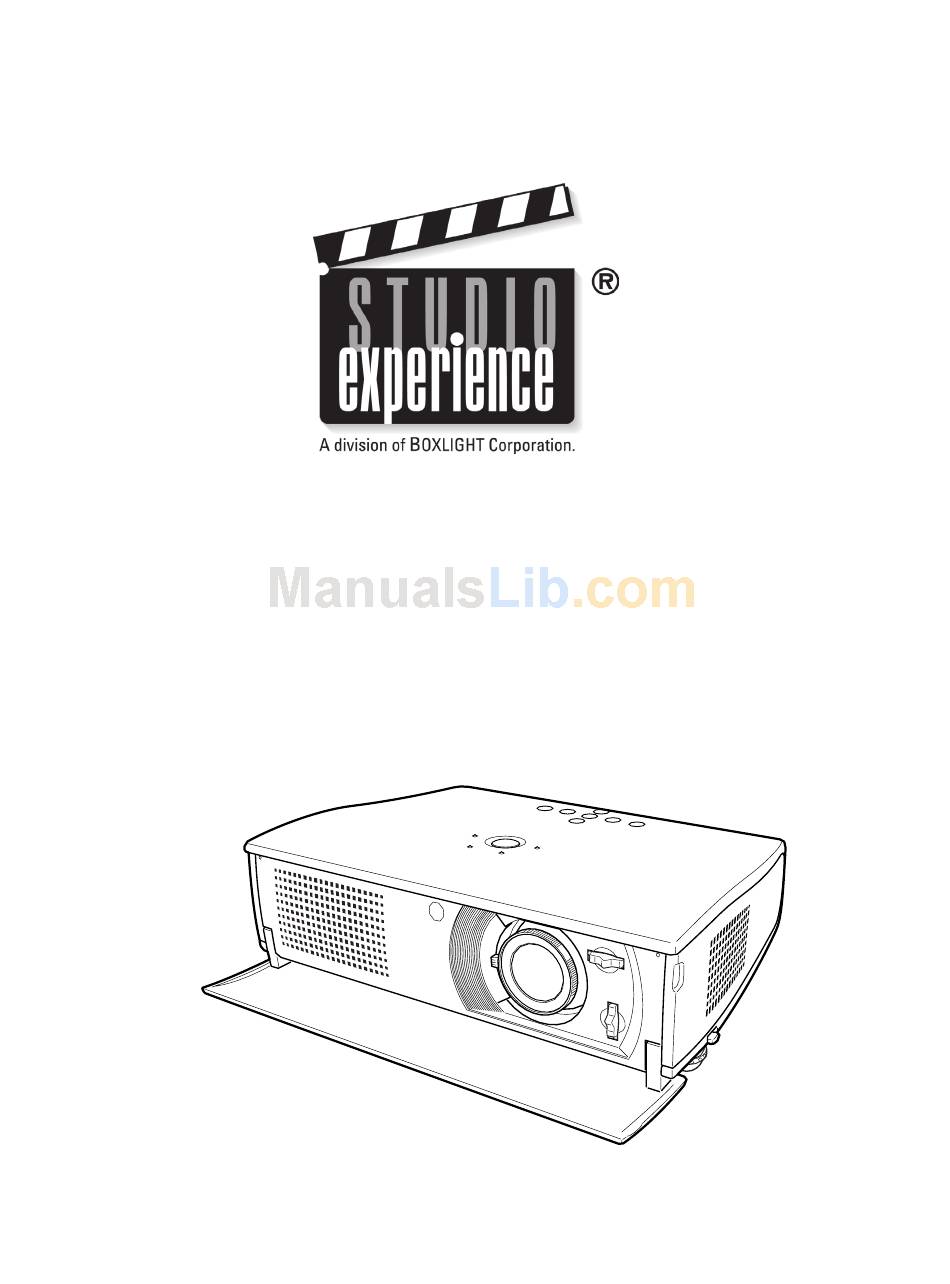

USER'S GUIDE
Matinee 1HD
HOME THEATER
PROJECTOR

Advertisement

Table of Contents
loading

Related Manuals for BOXLIGHT Studio Experience Matinee 1HD

Summary of Contents for BOXLIGHT Studio Experience Matinee 1HD

  • Page 1 USER'S GUIDE Matinee 1HD HOME THEATER PROJECTOR...

  • Page 2: Table Of Contents

    Installation Positioning the Projector Tilting the Projector Moving the Lens Connecting to Video Equipment Connecting to a Computer Basic Operation Turning On the Projector Turning Off the Projector Focus Adjustment Zoom Adjustment Keystone Adjustment No Show Function On-Screen Menu Contents of Menus TRADEMARKS G Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer,Inc.

  • Page 3: To The Owner

    If your projector seems to operate improperly, read this manual again, check operations and cable connections and try the solutions in the Troubleshooting section at the end of this manual. If the problem still persists, contact BOXLIGHT. WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

  • Page 4: Safety Instructions

    Do not use attachments not recommended by the manufacturer as they may cause hazards. Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector.

  • Page 5: Moving The Projector

    G Do not transport a projector by using a courier or transport service in an unsuitable transport case. This may cause damage to a projector. To transport a projector through a courier or transport service, consult Boxlight dealer for best way.

  • Page 6: Compliance

    : (800)762-5757 or +1-360-779-7901 AC POWER CORD REQUIREMENT The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it. AC Power Cord for the United States and Canada : AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) and certified by the Canadian Standard Association (CSA).

  • Page 7: Connecting The Ac Power Cord

    NOTE ON THE POWER CORD AC Power Cord must meet requirements of the country where you use a projector. Confirm an AC plug type with the chart below and proper AC Power Cord must be used.

  • Page 8: Feature And Design

    Feature and Design This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology. Short Zoom Lens This projector is equipped with Short Zoom Lens which allows you to enjoy 100"...

  • Page 9: Part Names And Functions

    Part Names and Functions Front CAUTION This projector is equipped with Cooling Fans for protection from overheating. Pay attention to the following to ensure proper ventilation and avoid a possible risk of fire and malfunction. G Do not cover vent holes.

  • Page 10: Bottom

    MAIN ON/OFF SWITCH CAUTION Hot air is exhausted from the exhaust vents. When using or installing the projector, the following precautions should be taken. G Do not put any flammable objects near these vents. G Keep front grills at least 3’(1m) away from any objects, especially heat-sensitive objects.

  • Page 11: Terminal

    (Refer to page 17.) This projector uses a micro processor to control this unit, and occasionally, this micro processor may malfunction and need to be reset. This can be done by pressing the RESET button with a pen, which will shut down and restart the unit. Do not use the RESET function excessively.

  • Page 12: Top Controls And Indicators

    Used to open or close the on-screen menu. (p22) WARNING TEMP. INDICATOR READY INDICATOR Flashes red when internal Lights green when the projector temperature is projector is ready to be too high. (p46) turned on. It flashes green management mode. (p43) WARNING READY TEMP.

  • Page 13: Remote Control

    G For cleaning, use soft dry cloth. Do not apply benzene, thinner, splay or any chemical material. Part Names and Functions POWER ON-OFF BUTTON Used to turn the projector on or off. (p19) ON-OFF AUTO PC ADJ. LIGHT...

  • Page 14: Remote Control Batteries Installation

    G Risk of explosion if battery is replaced by an incorrect type. G Dispose of used batteries according to the instructions. Operating Range Point the remote control toward the projector (Infrared Remote Receiver) whenever pressing any button. Maximum operating range for the remote control is about 16.4’ (5m) and 60°...

  • Page 15: Installation

    Adjustable feet. Projection angle can be adjusted up to 11.8 degrees with the Adjustable feet. Lift the front of the projector and pull the Feet lock latches on both sides of the projector. Release the Feet lock latches to lock the Adjustable feet and rotate the Adjustable feet to adjust position and tilt.

  • Page 16: Moving The Lens

    Installation The Projection lens can be moved up and down with manual lens shift function. This function makes it easy to provide a projected image where you want. U/D ratio can be adjusted from 10 : 0 ~ 0 : 10 (refer to the figures below). Turn the lens shift ring (left/right) left/right to move the lens leftward / rightward.

  • Page 17: Connecting To Video Equipment

    (See page 51 for order.) Terminals of the Projector NOTE When selecting the video input with the "AUTO" on the remote control or through menu operation, the projector selects connection in the following order: Y-Pb/Cb-Pr/Cr S-VIDEO VIDEO • Scart-VGA Cable Component video output equipment.

  • Page 18: Connecting To A Computer

    VGA Cable COMPUTER IN NOTE : When connecting the cable, the power cords of both the projector and the external equipment should be disconnected from AC outlet. Turn the projector and peripheral equipment on before the computer is switched on.

  • Page 19: Basic Operation

    To maintain the life of the lamp, once you turn the projector on, wait at least 5 minutes before turning it off. Do not use the projector for more than 24 hours continuously. Turn off the projector at least once every 24 hours and give it a rest.

  • Page 20: Focus Adjustment

    Basic Operation Focus Adjustment Rotate the FOCUS RING to adjust the image focus. FOCUS RING Zoom Adjustment Move the ZOOM LEVER upward to make the image larger. Move the ZOOM LEVER ZOOM LEVER downward to make the image smaller. WIDE TELE...

  • Page 21: Keystone Adjustment

    If the projected image has keystone distortion after adjusting the lens shift, correct the image with the Keystone Adjustment. Press the KEYSTONE L/M button on the remote control or select the Keystone in the Setting menu. (Refer to page 42.) The Keystone dialog box appears.

  • Page 22: On-Screen Menu

    Basic Operation The projector has the on-screen menu that provides a variety of adjustment and settings. Display the on-screen menu by pressing the MENU button on the top control or the remote control. A main menu appears. Select a menu from the main menu by pressing the POINT UP/DOWN button, and press the POINT RIGHT button to enter the sub-menu.

  • Page 23: Contents Of Menus

    VIDEO MENUS INPUT SOURCE SELECTION: select input source either Video [Auto, Video, S-Video, (Y-Pb/Cb-Pr/Cr)] or VIDEO SYSTEM SELECTION: select Video system from AUTO, PAL, SECAM, NTSC, NTSC4.43, PAL-M, IMAGE LEVEL SELECTION: select image level from Standard, Cinema, and Image 1 ~ 4. (Refer to page IMAGE LEVEL ADJUSTMENT: adjust SCREEN SIZE ADJUSTMENT: set the screen size from Full, Zoom, or Normal.

  • Page 24: Video Input

    Input Source Selection (Direct Operation) INPUT BUTTON You can select Video input or Computer input with the INPUT button. (The input source that was selected last is selected when the projector is turned on.) If the projector cannot reproduce proper video source, select correct input source through menu operation on the next page.

  • Page 25: Input Source Selection (Menu Operation)

    Input Source Selection (Menu Operation) Press the MENU button, and the main menu appears. Select the Input Source Selection menu with the POINT UP/DOWN button, and then press the POINT RIGHT button to enter the sub-menu. Choose Video with the POINT UP/DOWN button and press the POINT RIGHT button.

  • Page 26: Video System Selection (Video/S-Video)

    PAL-N manually. PAL / SECAM / NTSC / NTSC4.43 / PAL-M / PAL-N If the projector cannot reproduce proper video image, select a specific system among PAL, SECAM, NTSC, NTSC 4.43, PAL-M, and PAL-N. Press the MENU button, and the main menu appears. Select...

  • Page 27: Image Level Selection (Direct Operation)

    Choose the level that you want to set with the POINT UP/DOWN button, and then press the SELECT button to activate it. Standard Normal picture adjustment preset on this projector. Cinema Picture level adjusted for the picture with fine tone.

  • Page 28: Image Level Adjustment

    Video Input Press the MENU button, and the main menu appears. Select the Image Level Adjustment menu with the POINT UP/DOWN button, and then press the POINT RIGHT button to enter the sub-menu. Choose the item that you want to adjust with the POINT UP/DOWN button, and then press the POINT LEFT/RIGHT button to adjust each item.
  • Page 29 The items that you can adjust are the following: Contrast Press the POINT LEFT button to decrease contrast and the POINT RIGHT button to increase contrast. (From 0 to 63.) Brightness Press the POINT LEFT button to adjust image darker and the POINT RIGHT button to adjust image brighter. (From 0 to 63.) Color Press the POINT LEFT button to lighten color and the POINT RIGHT button to deepen color.

  • Page 30: Screen Size Adjustment (Direct Operation)

    Size Adjustment (Menu Operation)" about each item.) Screen Size Adjustment (Menu Operation) This projector has a picture screen resize function, which enables you to display the desirable image size. Press the MENU button, and the main menu appears. Select the Screen Size Adjustment menu with the POINT UP/DOWN button, and then press the POINT RIGHT button to enter the sub-menu.

  • Page 31: Computer Input

    INPUT BUTTON You can select Computer input or Video input with the INPUT button. (The input source that is selected last is selected when the projector is turned on.) If the projector cannot reproduce proper image, select a correct input source through menu operation as shown below.

  • Page 32: Computer System Selection

    Computer Input This projector automatically tunes to most different types of computers based on VGA, SVGA, XGA, or SXGA in most cases (refer to “Compatible Computer System” on the next page). When selecting Computer, this projector automatically tunes to incoming signal and projects proper image without any special settings.

  • Page 33: Compatible Computer System

    Compatible Computer System Basically this projector can accept the signal from all computers with the V, H-Frequency below mentioned and less than 100 MHz of Dot Clock. H-Freq. ON-SCREEN RESOLUTION (kHz) DISPLAY VGA 1 640 x 480 31.47 VGA 2 720 x 400 31.47...

  • Page 34: Computer Adjustment (Auto) (Direct Operation)

    Computer Input Computer Adjustment (Auto) (Direct Operation) The Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots, Horizontal, and Vertical to conform to your computer. The Auto PC Adjustment function can be operated as follows. Press the AUTO PC ADJ. button on the remote control, and the func- tion works.

  • Page 35: Computer Adjustment (Manual)

    Multi- Scan system of this projector. If this happens, the projector cannot reproduce a proper image and the image may be recognized as a flickering picture, a non-synchronized picture, a non-centered picture, or a skewed picture.
  • Page 36 Computer Input Choose one of the positions from the Mode 1 to 5 where you want to store with the POINT UP/DOWN button, and press the SELECT button. Select "Yes" with the SELECT button and close the menu by pressing the SELECT button at the Quit. To clear the adjustment parameters previously set, select the Mode free with the POINT UP/DOWN button and press the POINT RIGHT button.
  • Page 37 Adjustment of horizontal area displayed by the projector. Press the POINT LEFT/RIGHT button to decrease/increase value to match the resolution of image. Display area V Adjustment of vertical area displayed by the projector. Press the POINT LEFT/RIGHT button to decrease/increase value to match the resolution of image. Full screen When this function is on, SXGA image is fully displayed at 4 : 3 aspect ratio.

  • Page 38: Image Level Selection (Direct Operation)

    Choose the level that you want to set with the POINT UP/DOWN button, and then press the SELECT button to activate it. Standard Normal picture adjustment preset on this projector. Real Picture adjustment improved in reproduction of halftones. This adjustment is suitable for providing better image in brighter place.

  • Page 39: Image Level Adjustment

    Press the MENU button, and the main menu appears. Select the Image Level Adjustment menu with the POINT UP/DOWN button, and then press the POINT RIGHT button to enter the sub-menu. Choose the item that you want to adjust with the POINT UP/DOWN button, and then press the POINT LEFT/RIGHT button to adjust each item.
  • Page 40 Computer Input The items that you can adjust are the following: Contrast Press the POINT LEFT button to decrease contrast and the POINT RIGHT button to increase contrast. (From 0 to 63.) Brightness Press the POINT LEFT button to adjust image darker and the POINT RIGHT button to adjust image brighter. (From 0 to 63.) Color temp.

  • Page 41: Screen Size Adjustment (Direct Operation)

    Full Provides an image to fit the horizontal size of the screen. True Provides image in its original size. When the original image size is larger than screen size (964 X 544), this projector enters "Digital zoom" automatically. Digital zoom When Digital zoom is selected, the on-screen menu disappears and the message “D.Zoom”...

  • Page 42: Setting

    Correct keystone distortion by pressing the POINT UP/DOWN button. Refer to Keystone Adjustment on page 21. Blue back When this function is “On,” the projector displays a blue image while input signal is not detected. Display This function decides whether to display On-Screen Displays.
  • Page 43 In this Power management mode, the Projection lamp is automatically turned on when the input signal is connected or the projector is operated with any button on the top control or on the remote control again. Power off confirmation The confirmation dialog box to turn off the projector is displayed with this function ON.

  • Page 44: Appendix

    NOTE : Do not reset the Lamp Replace Counter when the Projection lamp is not replaced. ORDER REPLACEMENT LAMP Replacement Lamp can be ordered through Boxlight at 1-800-762-5757 or 360-779-7901. Model No. of your projector Replacement Lamp Type No. Lamp Replacement...

  • Page 45: Lamp Replace Counter

    Additionally, check carefully to ensure that there are no broken shards or pieces of glass around the projector or coming out from the cooling air circulation holes. Any broken shards found should be cleaned up carefully. No one should check the inside of the projector except those who are authorized trained technicians and who are familiar with projector service.

  • Page 46: Warning Temp. Indicator

    Air filter become clogged with dust particles, it will reduce the cooling fans’ effectiveness and may result in internal heat build up and adversely affect the life of the projector. Clean the Air filter by following the steps below.

  • Page 47: Troubleshooting

    Before calling your dealer or service center for assistance, check the following: • Make sure you have connected the projector to video equipment or your computer as described on page 17 and 18. • Check cable connection. Verify that all video, computer, and power cord are properly connected.

  • Page 48: Indicators And Projector Condition

    Yellow Light If the problem still persists after following all operating instructions, contact the dealer where you purchased the projector or the service center. Give the model number and explain the difficulty. We will advise you how to obtain service.

  • Page 49: Technical Specifications

    (0.01% or less) may be ineffective by the characteristics of the LCD panels. WARNING : High voltages are used to operate this projector. Do not attempt to open the cabinet. This symbol on the nameplate means the product is Listed by Underwriters Laboratories Inc.

  • Page 50: Dimensions

    Appendix Unit : inch (mm) 11.8˚ (Max.) Dimensions 13.11 (333) WARNING READY TEMP. LAMP LAMP LAMP LAMP REPLACE ON-OFF MENU INPUT SELECT 9.70 (246.5) 4.27 (108.5)

  • Page 51: Configuration Of Terminals

    Configuration of Terminals COMPUTER INPUT TERMINAL (ANALOG) Terminal : HDB15-PIN Pin Configuration SERVICE PORT CONNECTOR Terminal : Mini DIN 8-PIN *This port is only used for service. Pin Configuration 8 7 6 The parts listed below are optionally supplied. When ordering those parts, give name and Type No. of it to the sales dealer. G MAC Adapter Type No.

  • Page 52: Warranty Limitation And Exclusion

    (i) proof of date of purchase; (ii) the dealer’s name; and (iii) the model and serial number of the Product. When sending your unit in for repair, please ship your unit in its original packing material or a BOXLIGHT approved ATA Shipping Case, or have a professional packaging company pack the unit.
