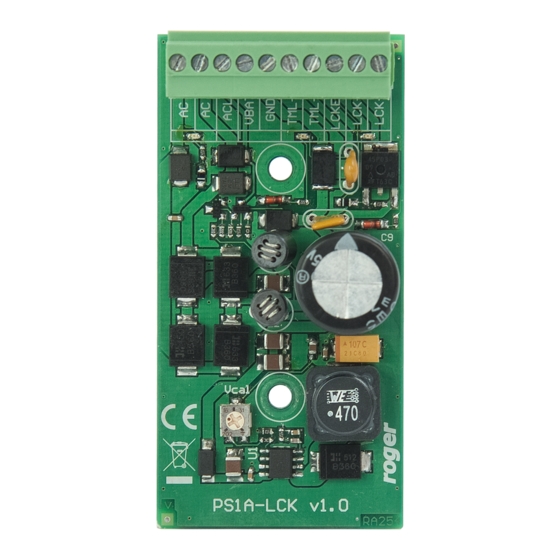

- Page 1 Roger Access Control System PS1A-LCK power supply module Operating Manual Product version: 1.0 Firmware version: n/a Document version: Rev. A...
- Page 2 2017-11-15 Design and application PS1A-LCK module is dedicated to provide power supply for the second door if built-in power supply unit of the MC16 controller or MCX402DR expander is sufficient for only single door. The module is supplied with 18VAC and it offers 13.8VDC at LCK and TML outputs. The LCK (1.0A) output is dedicated to supply door lock and it can be triggered with LCKEN input.
- Page 3 Power supply and backup battery PS1A-LCK module is supplied through AC terminals and red LED indicator is located at the AC+ terminal to signal the voltage at the input. The module can be supplied from own 18VAC/20VA transformer or the same transformer which supplies MC16 controller or MCX402DR expander.
- Page 4 LCK output can be controlled in two alternative ways according to fig. 4. Transistor output or relay can be used to control the lock. Fig. 4 Typical scenarios of door lock control with PS1A-LCK Fig. 5 Door lock and alarm signalling device (siren) control with relays (A) or transistor outputs (B)
- Page 5 2017-11-15 Installation Enclosure with DIN rail is recommended for installation of PS1A-LCK power module. All electric connections must be done without voltage on wires/terminals and with power supply disconnected. Optionally, DIN rail mounting clips can be removed and the module can be installed on flat surface. It is recommended to install the module in the same enclosure as controller/expander.
- Page 6 Weight of the equipment is specified in the document.. Contact: Roger sp. z o.o. sp.k. 82-400 Sztum Gościszewo 59 Tel.: +48 55 272 0132 Fax: +48 55 272 0133 Tech.
