Layout Diagram - JETWAY NF695C6-3455 Series User Manual

Note: 1.The module should be DDR3L 1.35V SODIMM and not exceeding 8GB total capacity.
2. The SODIMM installed should be of or above the memory clock the model supported, otherwise the
board will not start.

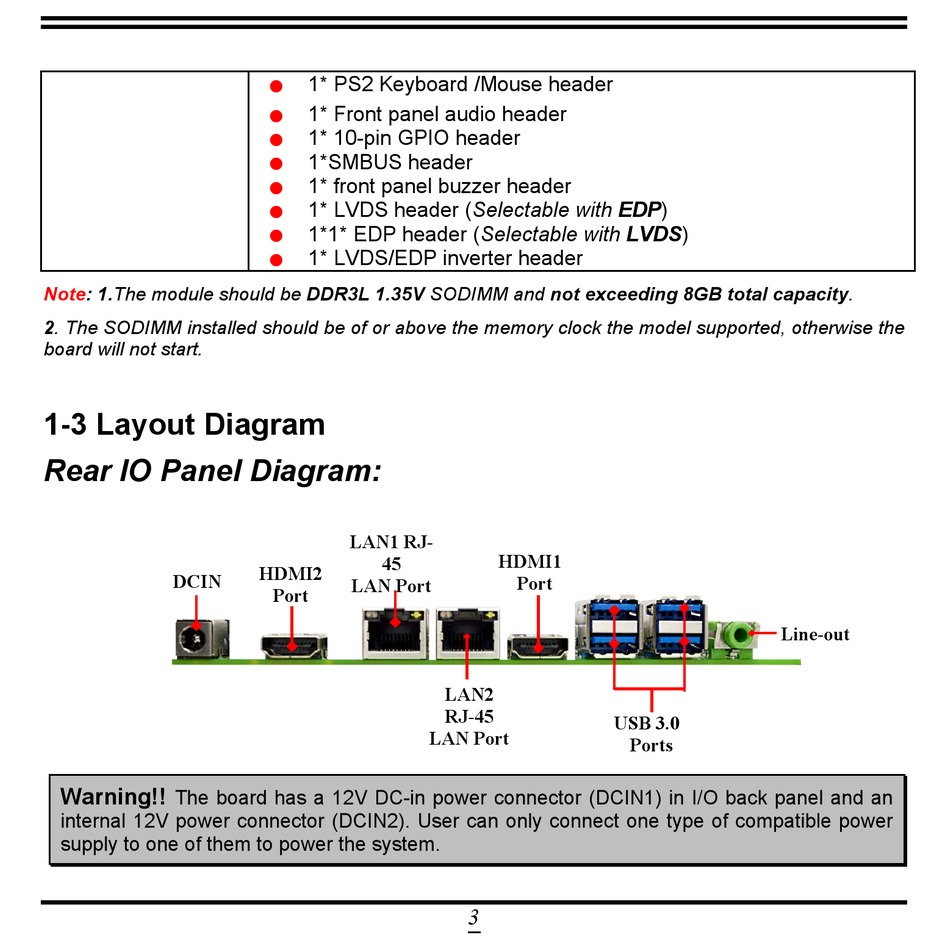

1-3 Layout Diagram

Rear IO Panel Diagram:
DCIN
Warning!!
The board has a 12V DC-in power connector (DCIN1) in I/O back panel and an
internal 12V power connector (DCIN2). User can only connect one type of compatible power
supply to one of them to power the system.
1* PS2 Keyboard /Mouse header

1* Front panel audio header

1* 10-pin GPIO header

1*SMBUS header

1* front panel buzzer header

1* LVDS header (Selectable with EDP)

1*1* EDP header (Selectable with LVDS)

1* LVDS/EDP inverter header

LAN1 RJ-
45
HDMI2
LAN Port
Port
LAN Port
HDMI1
Port
LAN2
RJ-45
USB 3.0
3
Line-out
Ports
