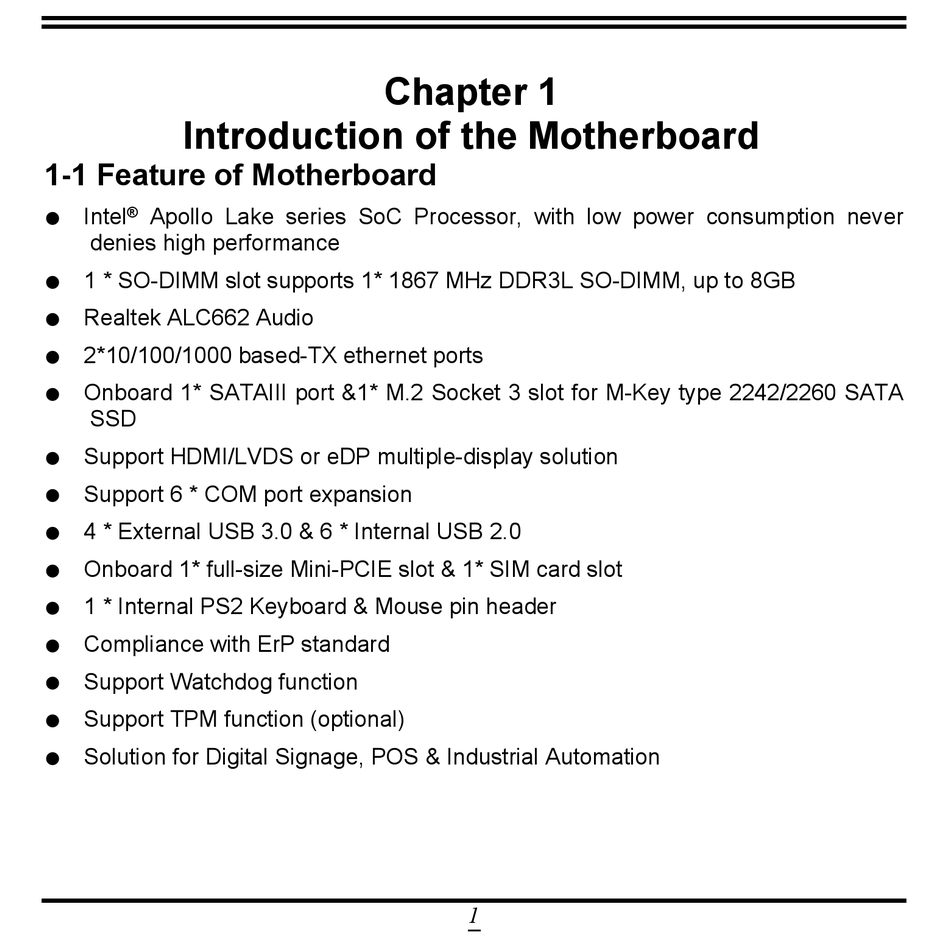

Introduction of the Motherboard

1-1 Feature of Motherboard

 Intel ® Apollo Lake series SoC Processor, with low power consumption never
denies high performance
 1 * SO-DIMM slot supports 1* 1867 MHz DDR3L SO-DIMM, up to 8GB
 Realtek ALC662 Audio
 2*10/100/1000 based-TX ethernet ports
 Onboard 1* SATAIII port &1* M.2 Socket 3 slot for M-Key type 2242/2260 SATA
SSD
 Support HDMI/LVDS or eDP multiple-display solution
 Support 6 * COM port expansion
 4 * External USB 3.0 & 6 * Internal USB 2.0
 Onboard 1* full-size Mini-PCIE slot & 1* SIM card slot
 1 * Internal PS2 Keyboard & Mouse pin header
 Compliance with ErP standard
 Support Watchdog function
 Support TPM function (optional)
 Solution for Digital Signage, POS & Industrial Automation
Chapter 1
1
