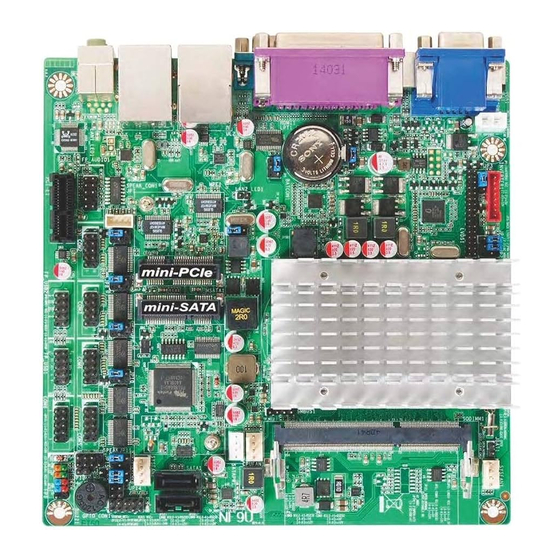

Intel bay trail series cpu based mini-itx m/b
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Technical Manual
Of
Intel Bay Trail Series CPU
Based Mini-ITX M/B
NO.G03-NF9U-F
Revision: 3.0
Release date: January 25, 2022
Trademark:
* Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NF9U and is the answer not in the manual?

Questions and answers

Related Manuals for JETWAY NF9U

Summary of Contents for JETWAY NF9U

  • Page 1 Technical Manual Intel Bay Trail Series CPU Based Mini-ITX M/B NO.G03-NF9U-F Revision: 3.0 Release date: January 25, 2022 Trademark: * Specifications and Information contained in this documentation are furnished for information use only, and are subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
  • Page 2 Environmental Protection Announcement Do not dispose this electronic device into the trash while discarding. To minimize pollution and ensure environment protection of mother earth, please recycle.

  • Page 3: Table Of Contents

    TABLE OF CONTENT ENVIRONMENTAL SAFETY INSTRUCTION ............... iv USER’S NOTICE ........................v MANUAL REVISION INFORMATION ................... v ITEM CHECKLIST ........................ v CHAPTER 1 INTRODUCTION OF THE MOTHERBOARD FEATURE OF MOTHERBOARD ................1 SPECIFICATION ....................2 LAYOUT DIAGRAM ....................3 CHAPTER 2 HARDWARE INSTALLATION JUMPER SETTING ....................

  • Page 4: Environmental Safety Instruction

    Environmental Safety Instruction  Avoid the dusty, humidity and temperature extremes. Do not place the product in any area where it may become wet.  0 to 60 centigrade is the suitable temperature. (The figure comes from the request of the main chipset) ...

  • Page 5: User's Notice

    USER’S NOTICE COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN PERMISSION OF THE MANUFACTURER.

  • Page 6: Chapter 1 Introduction Of The Motherboard Feature Of Motherboard

    Chapter 1 Introduction of the Motherboard Feature of Motherboard  Onboard Intel ® Bay Trail series processor, with low power consumption never denies high performance  Support DDR3L SO-DIMM 1066/1333 MHz up to 8GB  Support Mini-PCIE connector  Support mSATA connector ...

  • Page 7: Specification

    Specification Spec Description  6-layers; Mini-ITX; PCB size: 17x 17 cm Design  ® Integrated with Intel Bay Trail-D/M/I series CPU Embedded CPU  1* DDR3L SODIMM Slot for un-buffered DDR3L 1066* Mhz or 1333* Mhz SDRAM, expandable to 8GB Memory Slot *Memory clock supporting range is decided by specific CPU of the model.

  • Page 8: Layout Diagram

     1* MIC port  1* DC 9V~24V internal power connector  1* SATA Power connector  1* CPU FAN connector  2* SYSFAN connector  1* Front panel audio header  1* SPEAK_CON header  2* LAN LED activity header ...
  • Page 9 Motherboard Internal Diagram 9V~24V Internal Power Connector SYSFAN1 Header LVDS Inverter LVDS Header Intel CPU *DDR3L SODIMM Slot (SODIMM1) *Rear IO (Please SMBUS Header refer to Half-size Mini-PCIE Slot (MPE1) Page3) CPUFAN Header SATA Hard Disk Power-Out Connector LAN2_LED1 Full-size M-SATA Header Slot (MSATA1) Speaker...
  • Page 10 Jumper Position: JBAT1 JME1 JP11 JP15 JP10 JP14 JP12...
  • Page 11 Jumper Jumper Name Description INVERTER1 VCC 5V/12V Select 3-Pin Block LVDS1 PVCC 3.3V/5V/12V Select 4-Pin Block LCD Back Light PWM/DC Mode Select 3-Pin Block Mini PCI-E Slot (MPE1) VCC 3.3V 3-Pin Block /3VSB Select COM1 Port Pin9 Function Select 4-Pin Block COM2 Header Pin9 Function Select 4-Pin Block COM3 Header Pin9 Function Select...
  • Page 12 LPT1 Parallel Port Connector Top: RJ-45 LAN Port Connector Middle: USB 2.0 Port Connector Bottom: USB 3.0 Port Connector Top: RJ-45 LAN Port Connector Middle & Bottom: USB 2.0 Port Connector X 2 AUDIO1 Top: Audio Line Out Connector Bottom: Audio MIC In Connector ATXPWR1 DC 9V~24V Internal Power Connector SATA1/SATA2...

  • Page 13: Chapter 2 Hardware Installation

    Chapter 2 Hardware Installation 2-1 Jumper Setting JP1 (3-pin): INVERTER1 VCC 5V/12V Select JP2 (4-pin): LVDS1 PVCC 3.3V/5V/12V Select → LVDS1 PVCC 2-4 Close: 3-4 Close: 4-6 Close: VCC=+3.3V; VCC= +5V; VCC= +12V.
  • Page 14 JP3 (3-pin): INVERTER1 Back Light PWM/DC Mode Select JP6 (3-pin): Mini PCI-E Slot (MPE1) Power VCC3.3V/ 3VSB Select JP6 MPE1 Slot 1-2 Close:MPE Slot VCC= 3.3V； 2-3 Close: MPE Slot VCC= 3VSB.
  • Page 15 JP5 (4-pin): COM1 Port Pin9 Function Select JP7 (4-pin): COM2 Header Pin9 Function Select → COM2 Header 2-4 Close: 3-4 Close: 4-6 Close: RI=RS232; RI= +5V; RI= +12V.
  • Page 16 JP8 (4-pin): COM3 Header Pin9 Function Select JP9 (4-pin): COM4 Header Pin9 Function Select → COM4 Header 2-4 Close: 3-4 Close: 4-6 Close: RI=RS232; RI= +5V; RI= +12V.
  • Page 17 JP10 (4-pin): COM5 Header Pin9 Function Select JP11 (4-pin): COM6 Header Pin9 Function Select → JP11 COM6 Header 2-4 Close: 3-4 Close: 4-6 Close: RI=RS232; RI= +5V; RI= +12V.
  • Page 18 JBAT1(2-pin): Clear CMOS RAM Setting JP12 (2-pin): Disable ME Function Select → JP12 Disable ME Function 1-2 Open: Normal； 1-2 Close: Disable ME Function Selected.
  • Page 19 Pin 1 & 2 of JP14 (4-pin): AT Mode Function Select *ATX Mode Selected: Press power button to power on after power input ready; AT Mode Selected: Directly power on as power input ready. Pin 3 & 4 of JP14 (4-pin): Case Open Message Display Function Select →...
  • Page 20 Pin 3-4 Close: When Case open function pin short to GND, the Case open function was detected. When Used, needs to enter BIOS and enable ‘Case Open Detect’ function. In this case if your case is removed, next time when you restart your computer, a message will be displayed on screen to inform you of this.

  • Page 21: Connectors And Headers

    Pin 2&4&6 of JP15 (6-pin): SYSFAN1/SYSFAN2 R.P.M. Select Connectors and Headers 2-2-1 Connectors (1) Rear I/O Connectors RJ-45 LAN Ports VGA Port Parallel Port USB 2.0 Port Line-Out Port 9V~24V MIC Port DC Power-in Connector USB 3.0 Port USB 2.0 Ports RJ-11 Port HDMI Port COM1 Port...
  • Page 22 (2) COM1 (9-pin Block): RS232/422/485 Port COM1 port can function as RS232/422/485 port. In normal settings COM1 functions as RS232 port. With compatible COM cable COM1 can function as RS422 or RS 485 port. User also needs to go to BIOS to set ‘Transmission Mode Select’ for COM1 (refer to Page 32) at first, before using specialized cable to connect different pins of this port.
  • Page 23 (4) SATA1/SATA2(7-pin Block): SATAII Port connector These are high-speed SATAII ports that support 3GB/s transfer rate. * Note: SATA2 shares with MSATA1(Mini-SATA slot). (5) SATAPW1 (4-pin): SATA Power Connector Pin 1...
  • Page 24 (6) CPUFAN/SYSFAN1/SYSFAN2 (4-pin): Fan Connectors Definition +12V Fan Power Fan Speed Control...

  • Page 25: Headers

    2-2-2 Headers (1) FP_AUDIO1 (9-pin): Line-Out, MIC-In Header This header connects to Front Panel Line-out, MIC-In connector with cable. (2)SPEAK_CON1 (4-pin): Amplifier Connector...
  • Page 26 (3)LAN1_LED1/LAN2_LED1 (2-pin): LAN Activity LED Header LED- Pin1 LED+ LAN2_LED1 Pin1 LAN1_LED1 (4) COM2/COM3/COM4/COM5/COM6 (9-pin): Serial Port Headers Pin1...
  • Page 27 (5) F_USB1/F_USB2 (9-pin): USB 2.0 Port Headers Pin 1 (6) FP1 (9-pin): Front Panel Header Pin 1...
  • Page 28 (7) SPK-LED (7-pin): Speaker Header & PWR LED Header (8) GPIO_CON1 (10-pin): GPIO Header...
  • Page 29 (9) SMBUS1 (4-Pin): SM BUS Header (10) INVERTER1 (8-pin): LVDS Inverter Connector...
  • Page 30 (11) LVDS1 (32-pin): 24-bit Dual Channel LVDS Header Pin NO. Pin Define Pin NO. Pin Define Pin 1 LVDSB_DATAN3 Pin 2 LVDSB_DATAP3 Pin 3 LVDS_CLKBN Pin 4 LVDS_CLKBP Pin 5 LVDSB_DATAN2 Pin 6 LVDSB_DATAP2 Pin 7 LVDSB_DATAN1 Pin 8 LVDSB_DATAP1 Pin 9 LVDSB_DATAN0 Pin 10...

  • Page 31: Chapter 3 Introducing Bios

    Chapter 3 Introducing BIOS Notice! The BIOS options in this manual are for reference only. Different configurations may lead to difference in BIOS screen and BIOS screens in manuals are usually the first BIOS version when the board is released and may be different from your purchased motherboard. Users are welcome to download the latest BIOS version form our official website.

  • Page 32: Bios Menu Screen

    BIOS Menu Screen The following diagram show a general BIOS menu screen: Menu Bar General Help Items Current Setting Value Function Keys Menu Items BIOS Menu Screen Function Keys In the above BIOS Setup main menu of, you can see several options. We will explain these options step by step in the following pages of this chapter, but let us first see a short description of the function keys you may use here: ...

  • Page 33: Getting Help

     Press  (up, down) to choose, in the main menu, the option you want to confirm or to modify.  Press <Enter> to select.  Press <+>/<–> keys when you want to modify the BIOS parameters for the active option.

  • Page 34: Main Menu

    User can press the right or left arrow key on the keyboard to switch from menu bar. The selected one is highlighted. Main Menu Main menu screen includes some basic system information. Highlight the item and then use the <+> or <-> and numerical keyboard keys to select the value you want in each item.

  • Page 35: Advanced Menu

    3-7 Advanced Menu OS Selection The optional settings: [Android]; [Windows 8.X]; [Windows 7]. *Note: User needs to go to this item to select OS before installing OS. If Windows Embedded standard 8, Please select [Windows 8x] and set “USB 3.0 Support”...
  • Page 36 Use this item to select the highest ACPI sleep state the system will enter when the suspend button is pressed. The optional settings are: [Suspend Disabled]; [S3 (Suspend to RAM)].  Wakeup Function Settings Press [Enter] to make settings for the following sub-items: Wake-up System with Fixed Time Use this item to enable or disable system wake-up on alarm event.
  • Page 37  Serial Port 1 Configuration Press [Enter] to make settings for the following items: Serial Port 1 Configuration Serial Port Use this item to enable or disable serial port (COM). Change Settings Use this item to select an optimal setting for super IO device. Transmission Mode Select The optional settings are: [RS422];...
  • Page 38  Parallel Port Configuration Press [Enter] to make settings for the following items: Parallel Port Configuration Parallel Port Use this item to enable or disable parallel port (LPT/LPTE). Change Settings Use this item to select an optimal setting for super IO device. Device Mode Use this item to change the printer port mode.
  • Page 39 AT Mode Select). Case Open Detect This item controls detect case open function. The optional settings are: [Enabled]; [Disabled]. PS2 KB/MS Connect Use this item to set PS/2 connect primary device. The optional settings are: [Keyboard First]; [Mouse First].  PC Health Status Press [Enter] to view current hardware health status and make further settings in ‘SmartFan Configuration’.
  • Page 40  Shutdown Temperature Configuration Use this item to select system shutdown temperature. The optional settings are: [Disabled]; [70 C/158 F]; [75 C/167 F]; [80 C/176 C/185  Serial Port Consol Redirection Press [Enter] to make settings for serial port redirection settings: COM1 Console Redirection The optional settings are: [Disabled];...
  • Page 41 Resolution 100x31 Use this item to disable or enable extended terminal resolution. The optional settings are: [Disabled]; [Enabled]. Legacy OS Redirection Resolution The optional settings are: [80x24]; [80x25]. Putty Keypad The optional settings are: [VT100]; [Linux]; [XTERMR6]; [SC0]; [ESCN]; [VT400]. Redirection After BIOS POST The optional settings are: [Always Enable];...
  • Page 42 The default setting is: [8]. *This item may or may not show up, depending on different configuration. Parity The default setting is: [None]. *This item may or may not show up, depending on different configuration. Stop Bits The default setting is: [1]. *This item may or may not show up, depending on different configuration.
  • Page 43 The optional settings: [Disabled]; [Enabled]. CPU C7 Report Use this item to enable or disable CPU C6 (ACPI C3) report to OS. The optional settings: [Disabled]; [Enabled]. Package C-state Limit The optional settings: [C0]; [C1]; [C3] [C6]; [C7]; [No Limit]. ...
  • Page 44 Use this item to enable Ipv6 PXE Boot Support. When set as [Disabled], Ipv6 boot optional will not be created. PXE boot wait time Use this item to set wait time to press [ESC] key to abort the PXE boot. ...
  • Page 45 EHCI Hand-off This is a workaround for OSes without EHCI hand-off support. The EHCI ownership change should be claimed by EHCI driver. The optional settings are: [Disabled]; [Enabled]. USB Mass Storage Driver Support The optional settings are: [Disabled]; [Enabled]. USB hardware delay and time-outs: USB Transfer time-out Use this item to set the time-out value for control, bulk, and interrupt transfers.

  • Page 46: Chipset Menu

    3-8 Chipset Menu  North Bridge Press [Enter] to view current using memory information and make settings for the following sub-items: Intel IGD Configuration PAVC Use this item to enable or disable protected audio video control. The optional settings are: [Disabled]; [LITE Mode];[SERPENT Mode]. DVMT Pre-Allocated Use this item to select DVMT 5.0 pre-allocated (fixed) graphics memory size used...
  • Page 47 by the internal graphics device. The optional settings are: [64M]; [96M]; [128M]; [160M]; [192M]; [224M]; [256M]; [268M]; [320M]; [352M]; [384M]; [416M]; [448M]; [480M]; [512M]. DVMT Total Gfx Mem Use this item to select DVMT 5.0 total graphics memory size used by the internal graphics device.
  • Page 48 Single]; [1366 x 768 24bit Single]; [1440 x 900 18bit Dual]; [1440 x 900 24bit Dual]; [1280 x 800 18bit Single]; [1280 x 800 24bit Single]; [1680 x 1050 24bit Dual]; [1920 x 1080 24bit Dual].  South Bridge Press [Enter] to set south bridge parameters. ...

  • Page 49: Security Menu

    Onboard Lan1 Controller/ Onboard Lan2 Controller The optional settings are: [Enabled]; [Disabled]. System State after Power Failure Use this item to select AC power state when power is re-applied after a power failure. The optional settings are: [Always Off]; [Always On]; [Former State]. 3-9 Security Menu Security menu allow users to change administrator password and user password settings.

  • Page 50: Boot Menu

    3-10 Boot Menu Boot Configuration Setup Prompt Timeout Use this item to set number of seconds to wait for setup activation key. Bootup Numlock State Use this item to select keyboard numlock state. The optional settings are: [On]; [Off]. Quiet Boot The optional settings are: [Disabled];...

  • Page 51: Save & Exit Menu

    Boot Option The optional settings are: [UEFI: Built-in EFI Shell]; [Disabled]. 3-11 Save & Exit Menu Save Changes and Reset This item allows user to reset the system after saving the changes. Discard Changes and Reset This item allows user to reset the system without saving any changes. Restore Defaults Use this item to restore /load default values for all the setup options.
  • Page 52 Save as User Defaults Use this item to save the changes done so far as user defaults. Restore User Defaults Use this item to restore defaults to all the setup options. Boot Override UEFT: Built-in EFI Shell Launch Internal EFI shell application (shell.efi). Lauch EFI Shell from filesystem device Use this item to launch EFI shell application (shell.efi) from one of the available filesystem device.
