System Sensor i3 Series Installation And Maintenance Instructions page 3

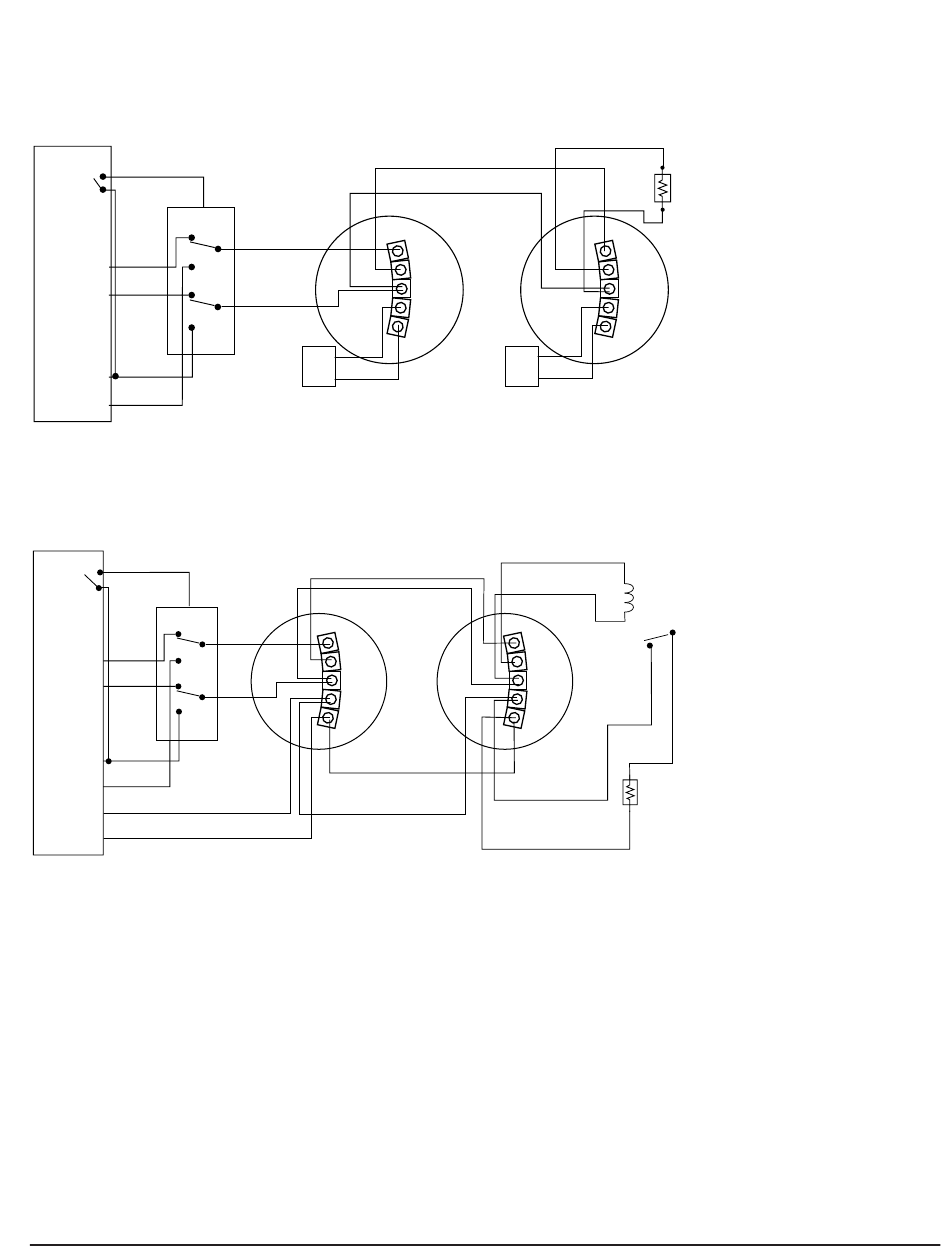

Figure 3. 2-Wire system triggered from alarm relay contact:
ULC LISTED
ALARM
CONTROL
PANEL
ALARM
PURPLE
RELAY
T+
(NO Contact)
YELLOW
+
2–WIRE
IN+
INITIATING
DEVICE
ORANGE
–
CIRCUIT
IN–
RED
+
PWR+
AUX POWER
BLACK
–
PWR–
S0103-00
Figure 4. 4-Wire system triggered from alarm relay contact:
ULC LISTED
ALARM
CONTROL
PANEL
ALARM
PURPLE
RELAY
T+
(NO Contact)
YELLOW
+
IN+
DETECTOR
POWER
ORANGE
–
IN–
RED
+
AUX POWER
PWR+
OR
DETECTOR
BLACK
POWER –
PWR–
+
INITIATING
DEVICE
–
CIRCUIT
S0104-00
Testing
Before testing, notify the proper authorities that the system
is undergoing maintenance and will temporarily be out of
service
Test in accordance with CAN/ULC S536 test methods,
inspections, and testing frequency.
1. Confirm that all smoke detectors connected to the CRRS-
MODA module(s) contain a sounder and the sounders are
activated upon power reversal.
2. Initiate an alarm with one of the smoke detectors con-
nected to the CRRS-MODA module using any approved
test method. In the alarm state, all the detectors connected
to the CRRS-MODA module must be sounding their sound-
ers.
D500-44-00
BROWN
OUT+
WHITE
OUT–
+
–
OPTIONAL
REMOTE
ANNUNCIATOR
(RA400ZA)
BROWN
1 + IN
OUT+
2 + OUT
3 - IN/OUT
WHITE
4 N.O.
OUT–
5 C
1 + IN
2 + OUT
3 - IN/OUT
4 RA+
5 RA-
+
–
OPTIONAL
REMOTE
ANNUNCIATOR
(RA400ZA)
1 + IN
2 + OUT
3 - IN/OUT
4 N.O.
5 C
3. Reset the system from the control panel. All smoke
detector sounders should be silent.
4. If the fire alarm panel also functions in burglary, initiate
a burglary alarm and ensure the smoke detectors do not
sound.
3
EOL
1 + IN
2 + OUT
3 - IN/OUT
4 RA+
5 RA-
EOL RELAY
(SHOWN ENERGIZED)
EOL
I56-2373-000
