NOTE: If your panel configuration does not match any of the following wiring diagrams, please contact System Sensor
technical services at 1-800-SENSOR2 for assistance.
Figure 1. 2-Wire system triggered from alarm/bell output:
ULC LISTED
ALARM
CONTROL
PANEL
PURPLE
T+
YELLOW
2–WIRE +
IN+
INITIATING
DEVICE
ORANGE
–
CIRCUIT
IN–
RED
+
PWR+
AUX POWER
BLACK
–
PWR–
S0101-00

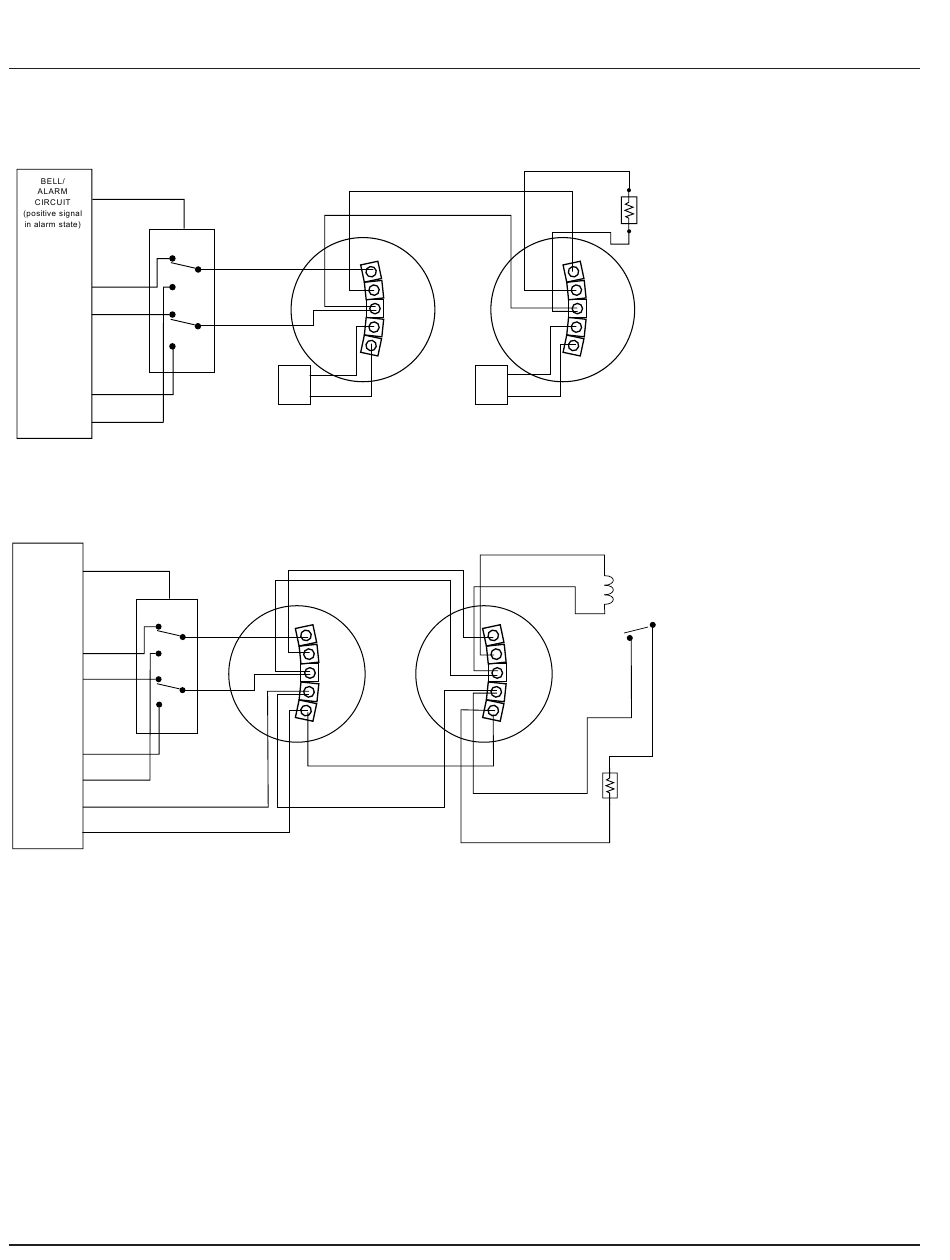

Figure 2. 4-Wire system triggered from alarm/bell output:
ULC LISTED
ALARM
CONTROL
PANEL
BELL/ALARM
CIRCUIT PURPLE
(positive signal T+
in alarm state)
YELLOW
+
IN+
DETECTOR
POWER
ORANGE
–
IN–
RED
+
AUX POWER
PWR+
OR
DETECTOR
BLACK
POWER –
PWR–
+
INITIATING
DEVICE
–
CIRCUIT
S0102-00
D500-44-00
BROWN
OUT+
WHITE
OUT–
+
–
OPTIONAL
REMOTE
ANNUNCIATOR
(RA400ZA)
BROWN
1 + IN
OUT+
2 + OUT
3 - IN/OUT
WHITE
4 N.O.
OUT –
5 C
1 + IN
2 + OUT
3 - IN/OUT
4 RA+
5 RA-
+
–
OPTIONAL
REMOTE
ANNUNCIATOR
(RA400ZA)
1 + IN
2 + OUT
3 - IN/OUT
4 N.O.
5 C
2
EOL
1 + IN
2 + OUT
3 - IN/OUT
4 RA+
5 RA-
EOL RELAY
(SHOWN ENERGIZED)
EOL
