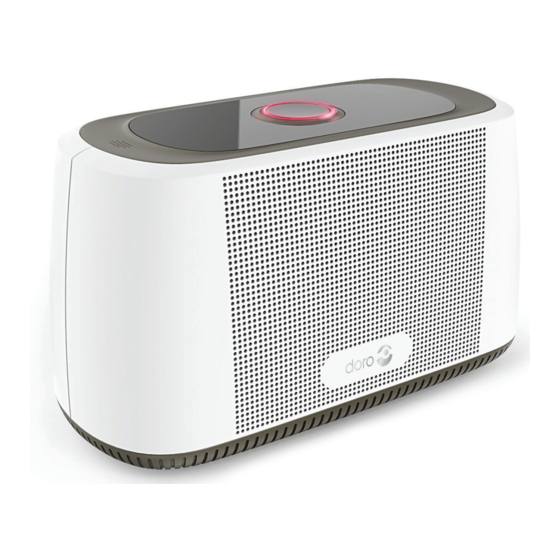

Doro Eliza User Manual

Hide thumbs Also See for Eliza:
Table of Contents

Advertisement

Quick Links

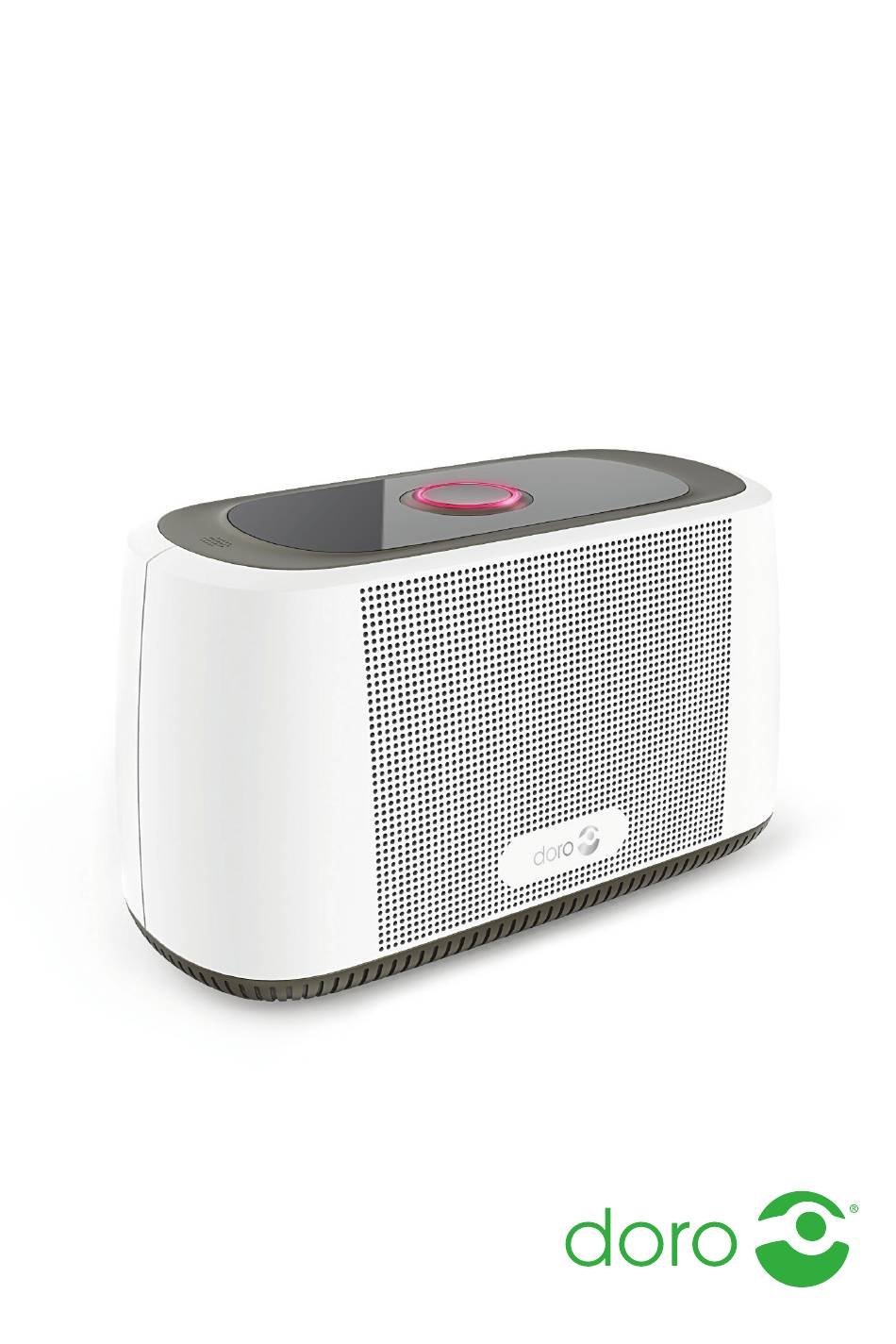

Doro Eliza (A150)
User Guide
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eliza and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Doro Eliza

Summary of Contents for Doro Eliza

  • Page 1 Doro Eliza (A150) User Guide English...

  • Page 2: Table Of Contents

    Table of contents 1. Read first: Safety information ......3 2. Important information ........4 3. Package contents ........... 4 4. Description of functions ......... 5 5. Overview ............7 6. Installation ..........11 7. Communication path........13 8. Pairing ............14 9.

  • Page 3: Read First: Safety Information

    1. Read first: Safety information Always read and follow the safety information accompanied by this symbol. • User’s should pay particular attention to the potential for interference from other systems operating in the same or adjacent radio frequency bands. • The compartment covers on the backside may be opened only by authorised persons in accordance with the instructions in the service manual.

  • Page 4: Important Information

    2. Important information All systems using radio and network communication are subject to interference beyond the user’s control. Products from Doro are designed to minimise the impact of such interference. Nevertheless, the user must be aware that system components can be subjected to interference or other influences that may cause malfunction.

  • Page 5: Description Of Functions

    Adaptable for future needs and connects to a wide range of accessories and welfare services – enabling the user a tailor made solution Doro Eliza has a built in module for 2G, 3G and 4G mobile networks, the unit has possibility to transfer alarms over broadband/network connections and mobile telephone networks.
  • Page 6 Alarm transmitters 50 radio transmitters (triggers/sensors) can be programmed with the Doro Eliza, e.g. a radio trigger. In the event of an alarm from a radio transmitter, the battery status of the radio transmitter is tested. Alarm receivers Up to 10 alarm receivers can be programmed.

  • Page 7: Overview

    1. Power supply socket 9V, 2A 2. Power switch Turns Doro Eliza on or off 3. External antenna For an external antenna that must be adapted for use with Doro Eliza connector 4. Ethernet port Connection for Ethernet cable from broadband/network 5. USB-port For USB expansion 6.
  • Page 8 Front/top view 1. Loudspeaker 5. Alarm button (red) 2. Square button (green) 6. Circular button (yellow) 3. Power indicator 7. Cancel alarm (white) 4. Status indicator...
  • Page 9 Indicator lights SQUARE GREEN Subject to configuration Steady light Mains power Blinking light Mains failure STATUS Normal operation Steady light Ethernet link1 or mobile network problem Low battery Blinking light ALARM Steady light Normal operation Blinking light Alarm activated CIRCLE YELLOW Subject to configuration CANCEL...
  • Page 10 Bottom view Illustration below is shown with the compartment cover removed. 1. Battery 3. SIM card slot under battery 2. Maintenance USB-port 4. Battery connector CAUTION Only authorised persons may open the compartment covers and perform wiring in accordance with the instructions in the service manual.

  • Page 11: Installation

    IMPORTANT Turn off the device and disconnect the external power supply before removing the battery cover. • Ensure that Doro Eliza is switched off. • Remove the compartment cover. • Carefully move the battery aside to expose the SIM card holder.
  • Page 12 Doro Eliza is easy to install, if broadband/network connection shall be used, connection is made with with a network cable (not included). Normally Doro Eliza is set to use DHCP, which means that the unit automatically will be assigned an IP address when connected to a network.

  • Page 13: Communication Path

    7. Communication path Example of a simplified communication path Doro Eliza i-care online 1. Radio or wired alarm trigger activated. 2. Depending on selected transmission path: a. Connection via mobile network (GSM/UMTS/LTE) to Voice, IP alarm protocol and additional data b.

  • Page 14: Pairing

    In some cases, the Doro Eliza can be delivered pre- programmed by the supplier. For help with pairing, please refer to the service manual or contact your supplier. Pairing radio triggers Up to 50 radio triggers/sensors or other radio-alarm transmitters can be paired to Doro Eliza.
  • Page 15 Repeat this in all areas where the radio trigger/accessory shall function. Check the mobile network signal strength When installing the Doro Eliza, the mobile network signal strength must be verified. The mobile network signal strength can be checked via www.

  • Page 16: Radio Trigger

    • Used batteries shall be disposed of in an environmentally- responsible manner. • If the Doro Eliza is supposed to be connected to a mobile network it need to be equipped with a mini-SIM (2FF) and having an appropriate mobile subscription including voice...

  • Page 17: Maintenance

    Note! By ordering a complete housing set you can upgrade your used radio trigger to look as brand new. Reinstatement If the Doro Eliza is reinstated at a new user, it shall be reset to default settings and re-programmed according to the data and requirements of the new user.

  • Page 18: Technical Data

    12. Technical data Carephone Doro Eliza Model no: A150 Dimensions: 197 x 92 x 112 mm (L x W x D) Weight incl. power supply and 0.7 kg cables: Power supply: 9 VDC power supply Power consumption: 2W (Nominal) Backup battery: 3.7 V, 2000 mAh, Li-Ion...
  • Page 19 Mobile networks (MHz) [maximum radio-frequency power/dBm] Network bands: 2G GSM (900) [33], (1800) [30] 3G UMTS 1 (2100) [24], 8 (900) [24] 4G LTE FDD 1 (2100) [24], 3 (1800) [24], 7 (2600) [24], 8 (900) [24], 20 (800) [24] , 28 (700) [24] SIM card interface: 1,8V and 3V mini-SIM (2FF) Other radio...
  • Page 20 (non-condensed) Environmental class: 1 (EG-I) Declaration of conformity Hereby, Doro declares that the radio equipment type A150 and 9150 is in compliance with Directives: 2014/53/EU and 2011/65/EU including delegated Directive (EU) 2015/863 amending Annex II. The full text of the EU declaration of conformity is available at the following internet address: www.doro.com/dofc.
  • Page 21 The product can be returned free of charge to a recycling station that is connected, directly or via a recycling system, to Doro or to your distributor. For detailed instructions, please check with your distributor or visit our website, www.doro.com.
  • Page 22 The only warranties for Doro products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Doro shall not be liable for technical or editorial errors or omissions contained herein.
  • Page 24 A150 (Doro Eliza) English Manual_Doro_Eliza(A150)_(100x148)_en_v10 ©2019 Doro AB. All rights reserved. www.doro.com...
