Doro CareMobile
User Guide
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CareMobile and is the answer not in the manual?

Questions and answers

Summary of Contents for Doro CareMobile

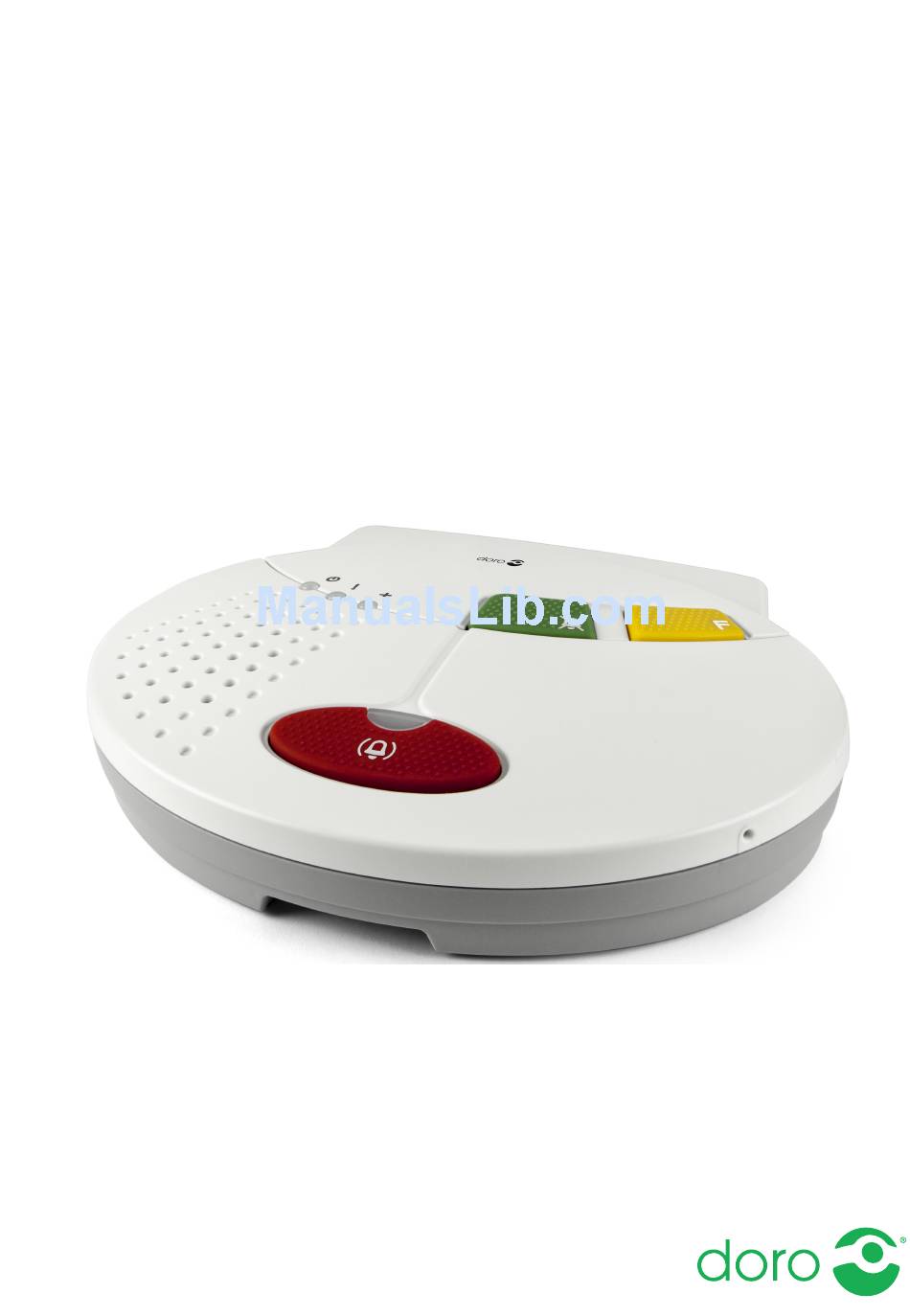

  • Page 1 Doro CareMobile User Guide English...
  • Page 2: Table Of Contents

    Delete all radio triggers...............12 Maintenance....................13 Cleaning ....................13 Replace the battery................13 Replace the radio trigger battery............13 Technical data ..................... 14 Carephone Doro CareMobile .............. 14 Portable alarm trigger Elliot..............14 Environment..................14 Radio receiver parameters: ..............15 Environmental information ................. 16 Legal notices....................16...
  • Page 3: Package Contents

    English Package contents • Doro CareMobile • Power supply • User guide • SIM card activation instructions (including alarm receiver contacts) • Elliot radio trigger with accessories: • Wristband • Wristband attachment • Neckband • Neckband attachment • Pocket clip •...
  • Page 4: Important Information

    Nothing in this document shall be construed as a warranty. Doro Care shall not be liable for technical er- rors, typographical errors, or omissions in this document.
  • Page 5: Product Description

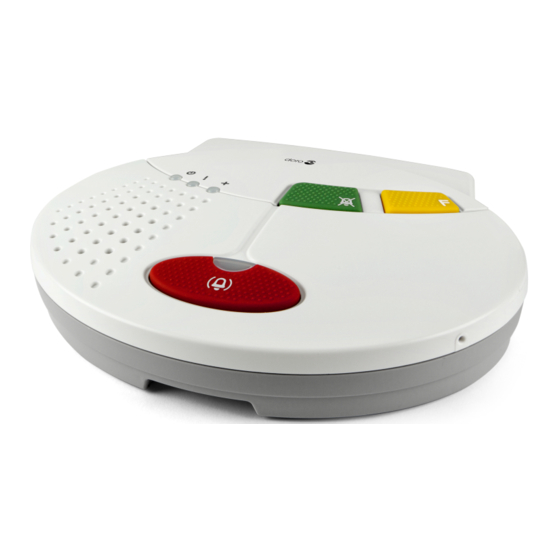

    English Product description Doro CareMobile is a digital alarm unit with a built in GSM module, the unit has possibility to transfer alarms over broadband/network connec- tions and mobile telephone networks. The unit offers the user the possi- bility of two way voice communication using existing standard for VoIP (Voice over Internet Protocol) calling.
  • Page 6: Parts And Descriptions

    English Parts and descriptions Indicator lights: Alarm No alarm contacts programmed Steady light or battery operation mode Idle mode (normal mode) Ongoing alarm! Slow flashing light Power on GREEN Steady light Mains power Flashing light Ready for programming the alarm accessories Battery operation Slow flashing light Error...
  • Page 7 SIM card holder. – – – Hole for wall mounting Antenna connector Doro CareMobile has a built-in antenna that is optimised for best reception. In cases where the operator's coverage is in- adequate where Doro CareMobile is lo-...
  • Page 8: Different Types Of Alarm Transmitters

    Up to ten transmitters, e.g. radio triggers, can be programmed with the Doro CareMobile. Examples are the smoke detector, door alarm, bed alarm and the personal alarm trigger Elliot, see Radio trigger Elliot, p.10. All alarm accessories automatically perform tests on its own battery sta- tus and provides alerts for battery failure.
  • Page 9: To Activate The Alarm

    Doro CareMobile. On activation, the Doro CareMobile calls an alarm receiver to summon help. There is a possibility to attach up to ten (10) different radio acces- sories. wired alarm triggers.
  • Page 10: Installation

    USB port on the Doro CareMobile. Push the SIM card into the SIM card holder. The Doro CareMo- bile has a built-in switch in the rack for the SIM card. The device is powered on when the SIM card is inserted in the SIM card holder.
  • Page 11: Verification Of The Signal Coverage And Strength

    Verification of the signal coverage and strength The signal strength shall always be verified during, or in association with, the installation/deployment of the CareMobile in order to ensure trouble- free operation. The verification is done as follows: Press the yellow and green button si- multaneously, then release.
  • Page 12: Verification Of The Alarm Trigger Ratio Coverage

    Radio trigger Elliot Radio trigger Elliot uses two-way radio communication, this means that when Doro CareMobile receives an alarm from Elliot it will send an confir- mation receipt This is indicated on Elliot by indicator light change from red to green. If Elliott doesn't get any confirmation, the alarm will be re- peated.
  • Page 13 Alarm button Function button Wristband attachment Neckband attachment Cover plate Easy press concept (EPC) accessory The Doro Care Easy Press Concept (EPC) accessories makes it easier for those with reduced physical strength to activate the alarm. • Pocket clip •...
  • Page 14: Programming

    Push the radio trigger or activate other alarm accessories. Once the Doro CareMobile receives the radio signal, you will hear a distinct tone signal. • Confirm by pressing the red button CareMobile, you will hear a con- firmation tone. Delete all radio triggers CAUTION...
  • Page 15: Maintenance

    English Maintenance Cleaning The CareMobile and radio trigger should be cleaned using a slightly damp cloth. Solvents may not be used. Tip: By ordering a complete housing set you can upgrade your used Elliot- button to look as brand new.
  • Page 16: Technical Data

    English Technical data Carephone Doro CareMobile Dimensions: 200 mm x 175 mm x 35 mm (HxWxD) Power supply: AC-DC Adapter 230VAC/5VDC 1.0A. Model no. SDB0501000P Power consumption: 2W (Nominal) Backup battery: 3.7V Li-Ion, Art. nr: 300163, Cell Model: BK514461AR Backup time:...
  • Page 17: Radio Receiver Parameters

    English Radio receiver parameters: Max. usable sensitivity: –113dBm Average usable sensitivity: ver: 28,7dBuV/m, hor: 27,0dBuV/m Adjacent channel selectivity: -26,2dBm/-28,2dBm Intermodulation rejection: -36dBm/-37dBm Spurious response rejection: -30dBm Blocking or desensitisation: -16dBm...
  • Page 18: Environmental Information

    The product can be returned free of charge to a recycling station that is connected, directly or via a recycling system, to Doro Care or to your distributor. For detailed instructions, please check with your distributor or visit our website, www.icareonline.com.
  • Page 19 English...
  • Page 20 English Version 1.0 © 2017 Doro AB. All rights reserved. www.doro.com REV 17858 — STR...
