Components and Controls
16 S&C Instruction Sheet 659-520
Status
The Status tab displays the alarm, analog, and digital status for the PureWave
SMS-250 system. Figure 18 shows where the user can find these screens by placing the
mouse over the Status tab to display the status drop-down menu items: Alarm Status,
Analogs, and Digitals.
Figure 19 is the Alarm Status menu screen, which displays the status of the alarms. In
addition, the user can place the mouse over the listed alarm to display a tool-tip pop-up
window that provides a description of what the alarm is and the suggested troubleshoot-
ing actions to clear it.
Figures 20 and 21 on page 17 show the Analogs and Digitals status menu screens,
respectively.

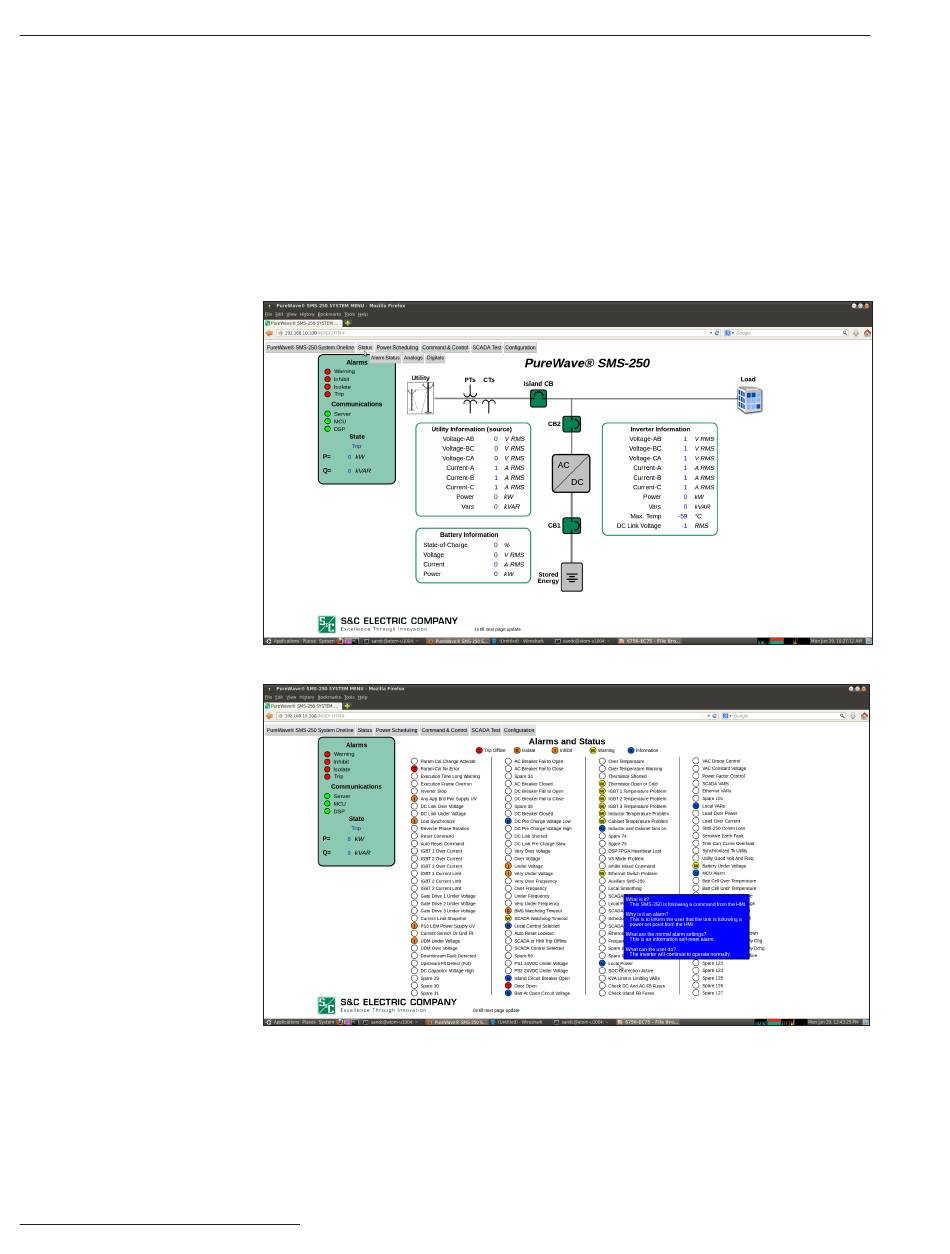

Figure 18. The Status drop down menu.
Figure 19. The Alarm and Status window.
