EMI Filters

Cable Termination
Area
Located below the circuit breakers are ac and dc electromagnetic interference (EMI)
filters. These filters are designed to prevent any IGBT interference by shunting the high
frequency. See Figure 9 for the location of the EMI filters.

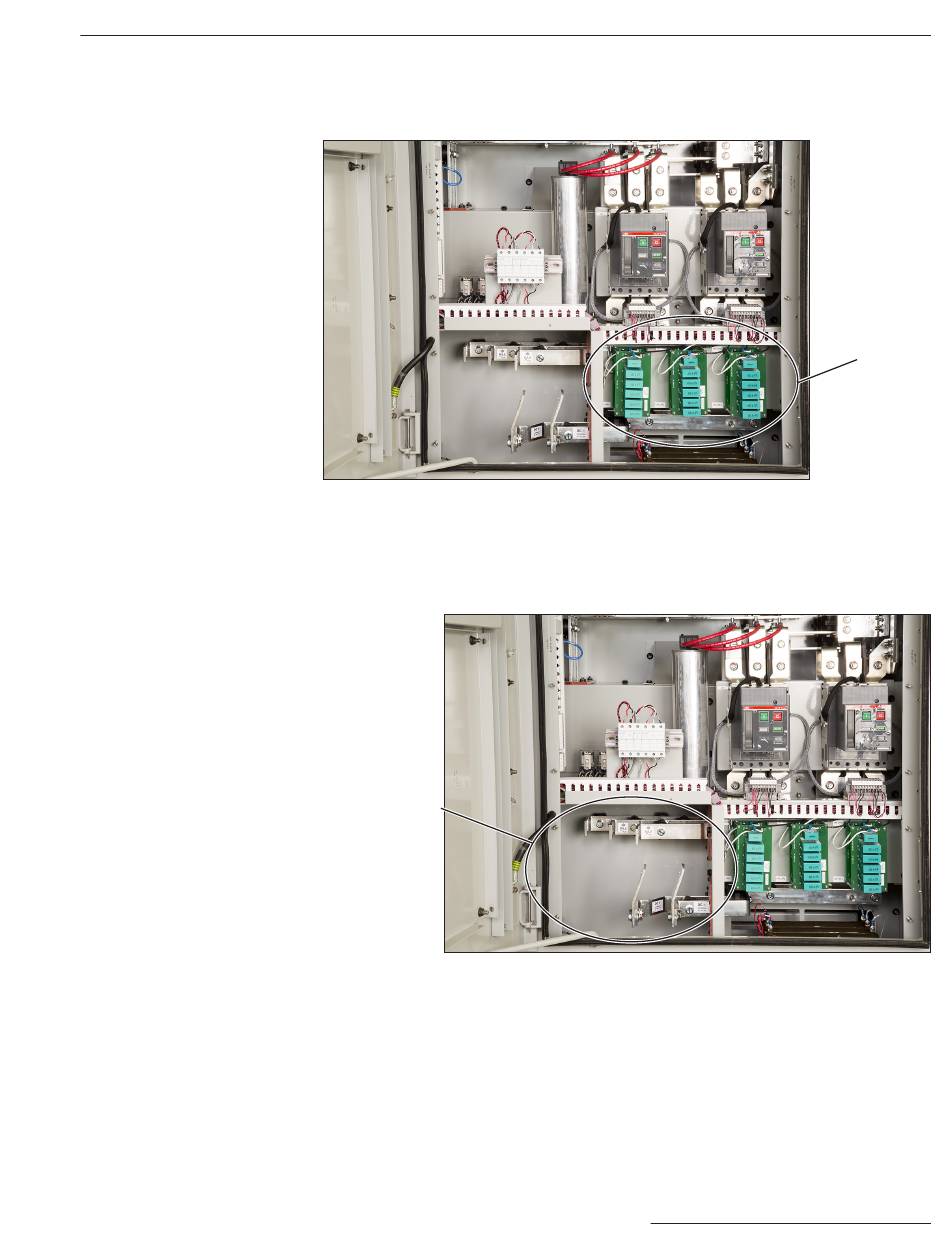

Figure 9. Location of EMI filters.
The ac and dc cable termination area is located inside the enclosure at the bottom-left
corner. This user-accessible termination area shall include terminals for connecting the
utility-source cables and the dc terminals for connecting the battery pack cables. See
Figure 10 for the location of the cable-termination area.
Cable-termination
area
Figure 10. Cable-termination area.
Components and Controls
S&C Instruction Sheet 659-520
EMI filters
