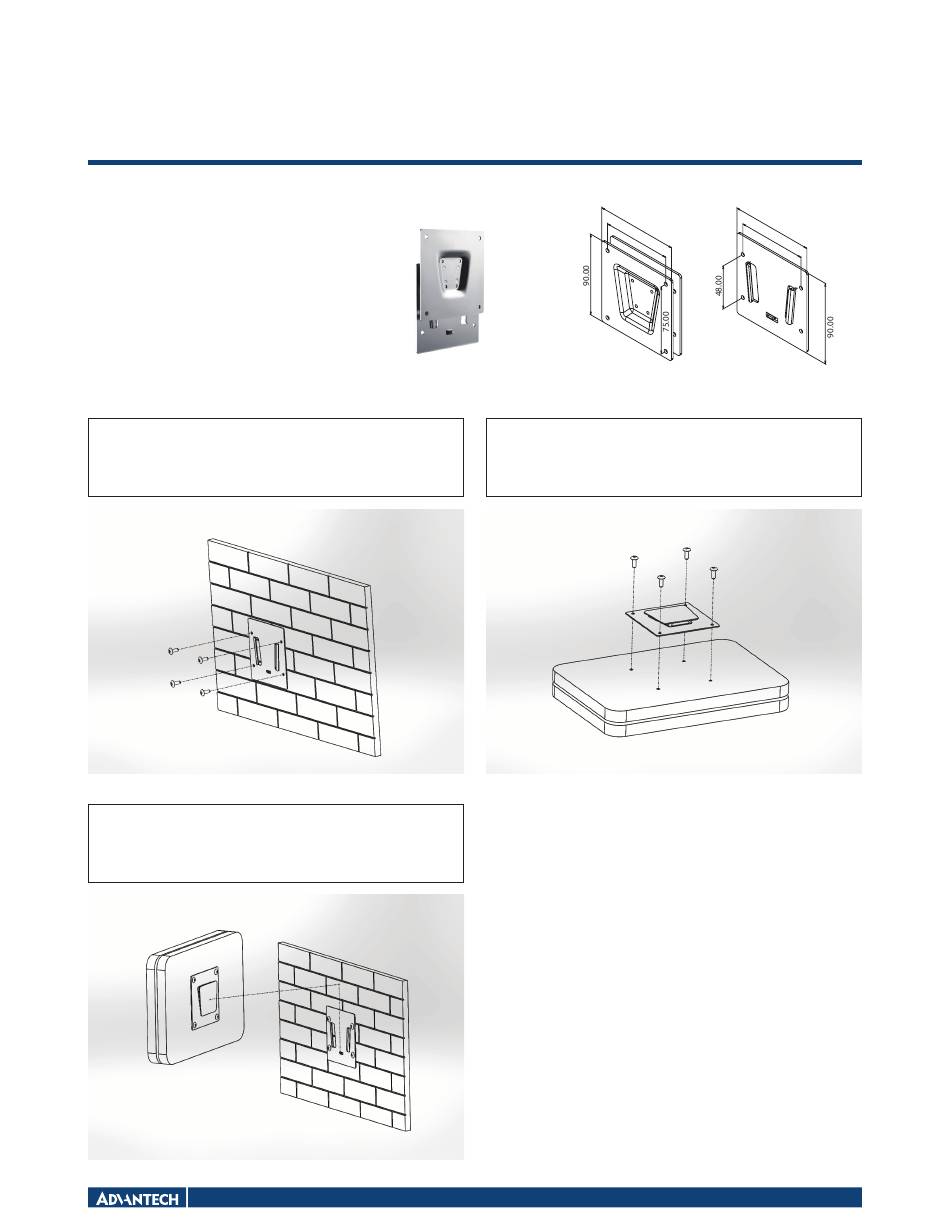

UTC-WALL-MOUNT5E

VESA 75 mm
ƒ Firmly fix to a solid wall
ƒ Weight capacity up to 20 kg
ƒ Material: Steel
ƒ Sits: 8 mm from the wall
ƒ For UTC-510/307/310
Step 1
Tighten the wall plate on the wall by using four screws.
Step 3
Take the UTC unit with wall mount device plate to slide
into wall mount plate on the wall.
UTC-Wall-Mount
All product specifications are subject to change without notice.
UTC-Wall-Mount Installation Guide
9 0
. 0 0
7 5
. 0 0
Step 2
Tighten the wall mount device plate on the rear cover of
UTC unit by using four screws into VESA holes.
9 0
. 0 0
7 5
. 0 0
