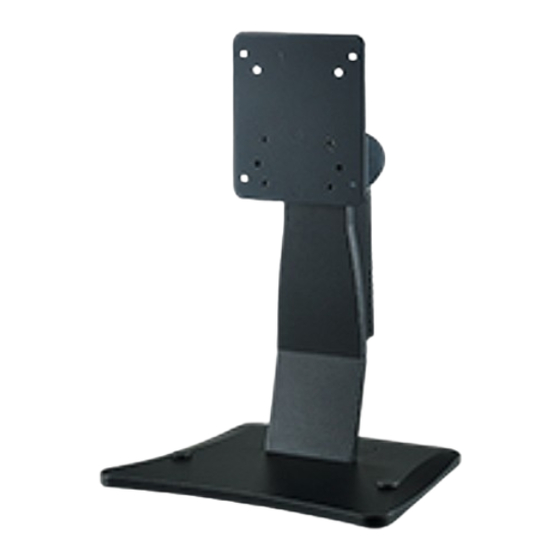

PPC Series Stand
PPC-STAND-A1E
User Guide

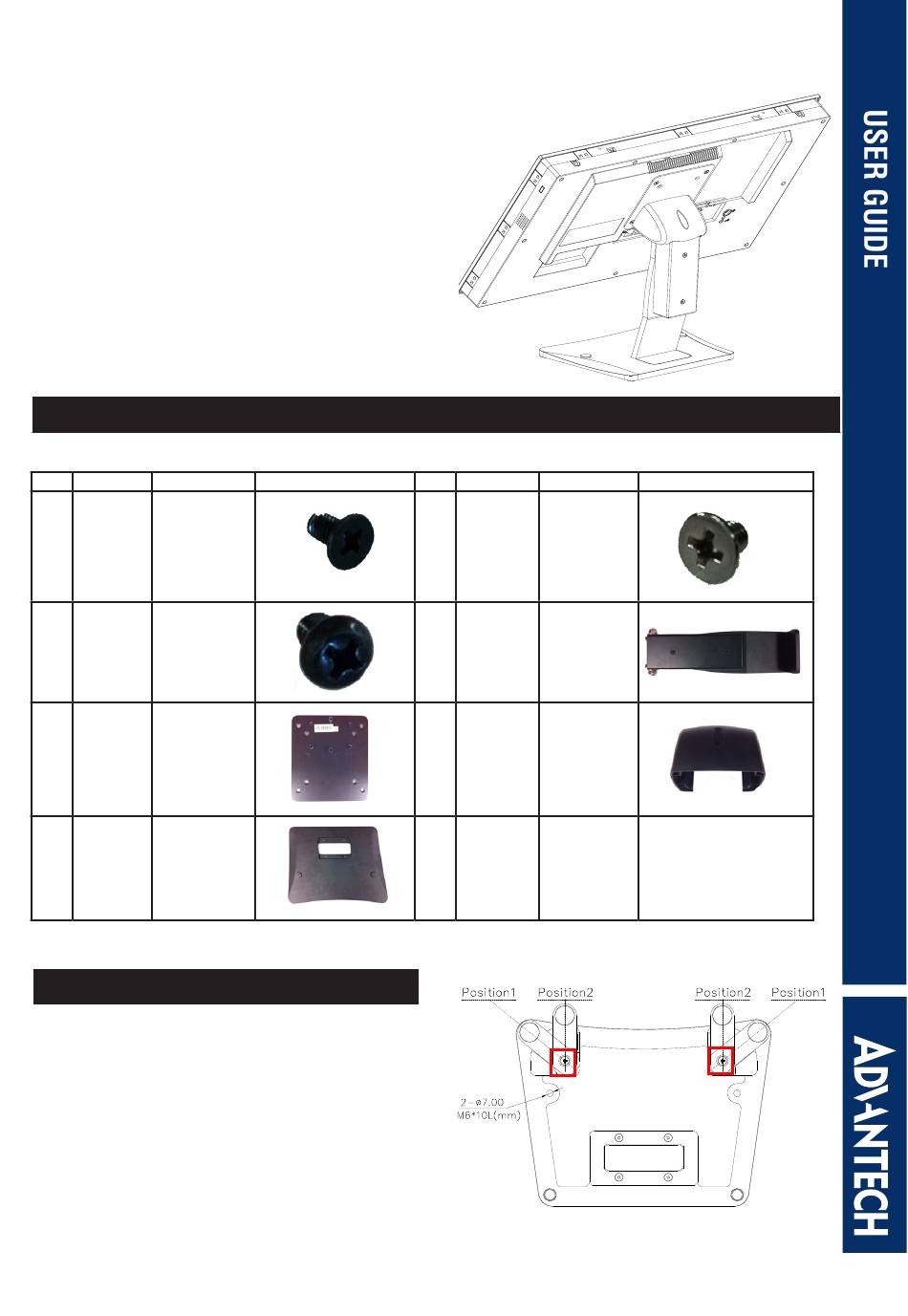

Packing List
Item
Name
Qty.
Screw
12
A
(M4x8L)
(4 x spare)
Screw
2
C
(M4x5L)
(1 x spare)
VESA
2
1
Bracket
4
Base Plate
1
IMPORTANT Base Plate Adjustment
Consider the thickness of your PC when adjusting the feet
of the stand.
If your PPC panel PC has a thickness of less than 80 mm,
leave the feet in Position 1 (default).
If your PPC panel PC has a thickness of more than 80 mm,
loosen the two screws highlighted in red in the image to the
right and adjust the position of the feet to Position 2. Once
the feet are in the correct position, tighten the two screws.
Note: If the PPC panel PC's thickness is more than 125 mm,
this stand CANNOT reliably hold the PC.
1 PPC-STAND-A1E User Guide 202KSTAN01
Pic.
Item
Name
Screw
B
(M4x6L)
1
Hinge
Hinge
3
Cover
Qty.
Pic.
6
(2 x spare)
1
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Advantech PPC Series
Summary of Contents for Advantech PPC Series
- Page 1 PPC Series Stand PPC-STAND-A1E User Guide Packing List Item Name Qty. Pic. Item Name Qty. Pic. Screw Screw (M4x8L) (4 x spare) (M4x6L) (2 x spare) Screw Hinge (M4x5L) (1 x spare) VESA Hinge Bracket Cover Base Plate IMPORTANT Base Plate Adjustment Consider the thickness of your PC when adjusting the feet of the stand.
- Page 2 (Item 4) to the hinge (Item 1). Step 4: Use 1 x screw (Item C) to secure the hinge cover (Item 3) to the VESA bracket (Item 2). The assembled PPC series stand with PPC panel PC should appear as shown below. User Guide 2...
