Advantech UTC-WALL-MOUNT1E Installation Manual page 2

UTC-WALL-MOUNT2E
VESA 100/200 mm
ƒ Flush fit without movement
ƒ Weight capacity up to 35 kg
ƒ Material: Steel
ƒ Sits: 42.5 mm from the wall
ƒ For UTC-532 only

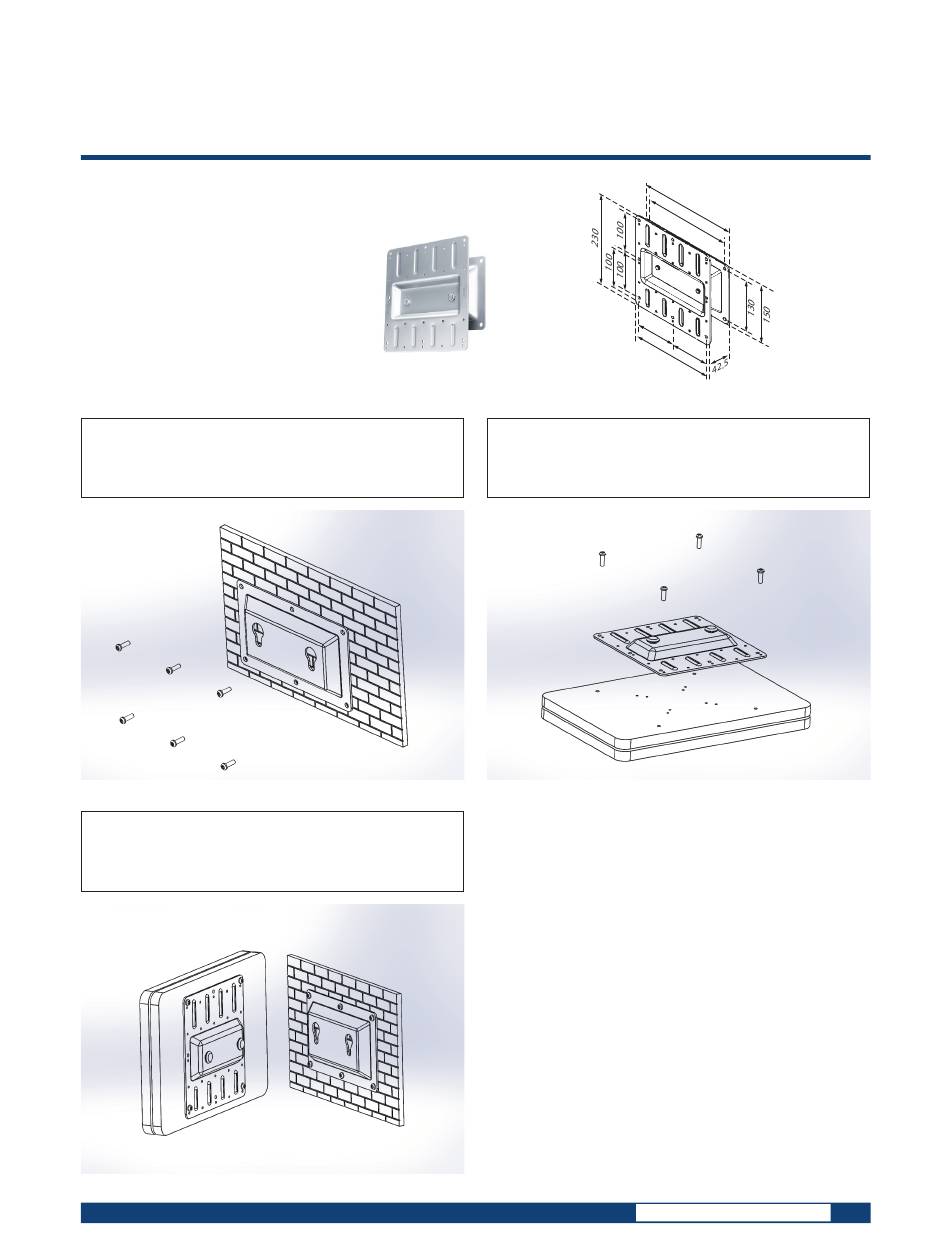

Step 1
Tighten the wall plate on the wall by using six screws.
Step 3
Take the UTC unit with wall mount device plate to hang
into wall mount plate on the wall.
UTC-Wall-Mount Installation Guide
2 5 0
2 3 0
1 0 0
1 0 0
2 2 0
Step 2
Tighten the wall mount device plate on the rear cover of
UTC unit by using four screws into VESA holes.
Online Download www.advantech.com/products
