UTC-WALL-MOUNT3E

VESA 75/100 mm
ƒ Firmly fix to a solid wall
ƒ Weight capacity up to 20 kg
ƒ Material: Steel
ƒ Sits: 27 mm from the wall
ƒ For UTC-515/520/307/310/315/
318/320

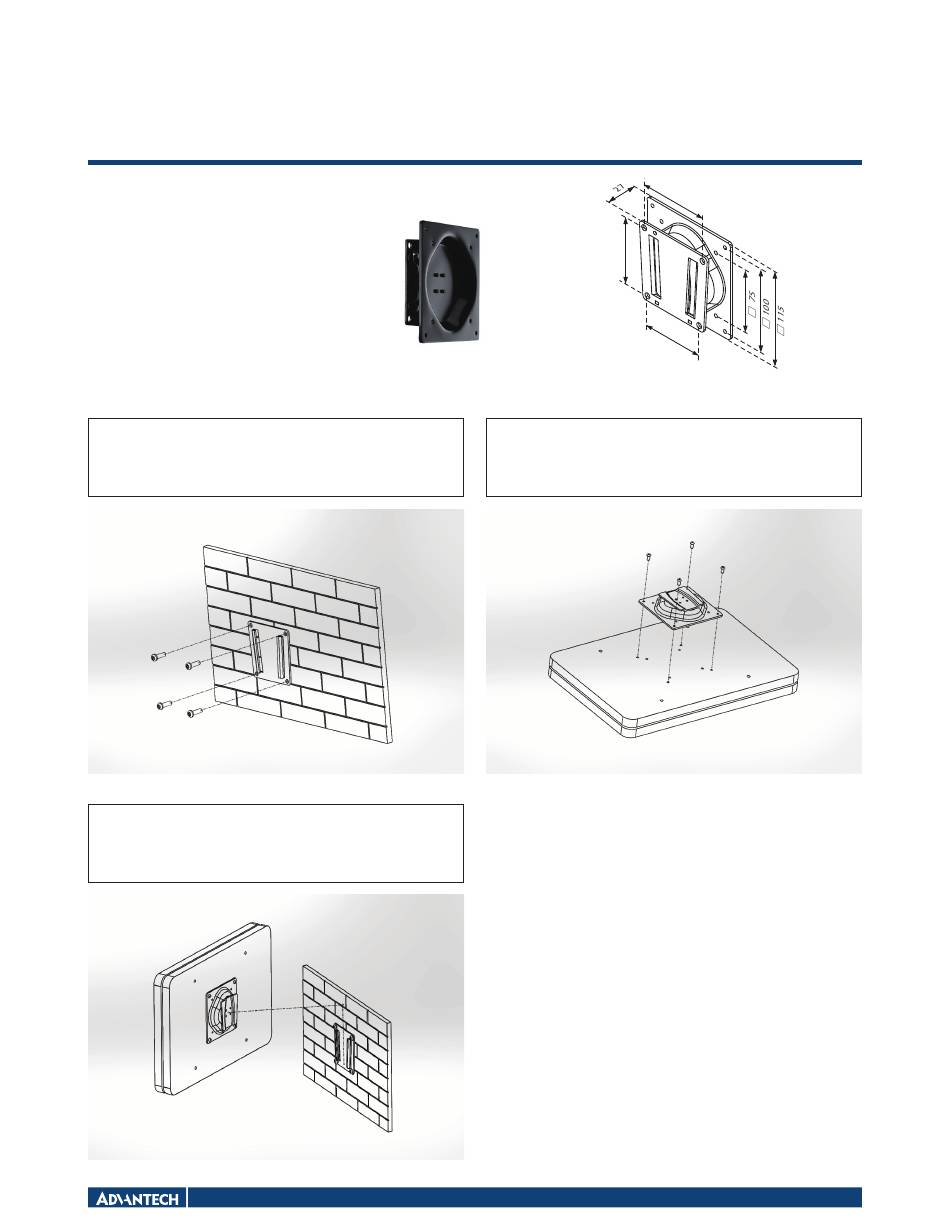

Step 1
Tighten the wall plate on the wall by using four screws.
Step 3
Take the UTC unit with wall mount device plate to slide
into wall mount plate on the wall.
UTC-Wall-Mount
All product specifications are subject to change without notice.
UTC-Wall-Mount Installation Guide
7 9
. 5
7 8
7 0
. 5
Step 2
Tighten the wall mount device plate on the rear cover of
UTC unit by using four screws into VESA holes.
