Ip Filtering - Incoming - Zhone 6218-I2 User Manual

Advanced Setup
IP Filtering – Incoming
Incoming filter filters the traffic from the WAN side to the LAN side. Click on
Add to add incoming filter settings.

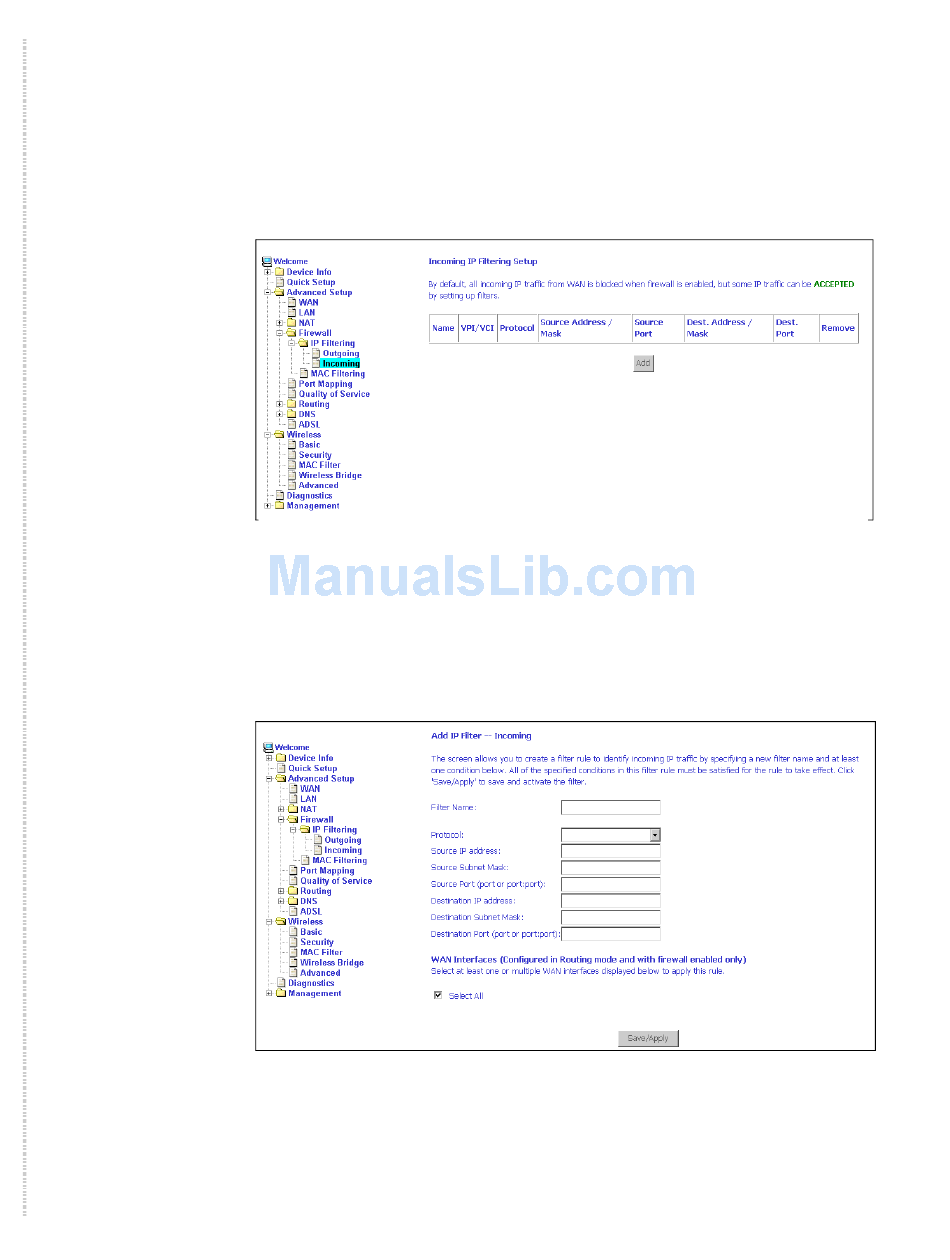

Figure 48: IP Filtering – Incoming Filter Setup Page
Enter a filter name, information about the source address (from the WAN
side), and information about the destination address ( to the LAN side). Select
the protocol and WAN interface. Then click on Save/Apply to add the setting.
Figure 49: IP Filtering - Incoming Filter Add
54
6218-I2 Wireless Router User's Guide 6218-A2-ZB23-10
