Zhone 6218-I2 User Manual page 22

Hardware Installation and PC Setup
22
6218-I2 Wireless Router User's Guide

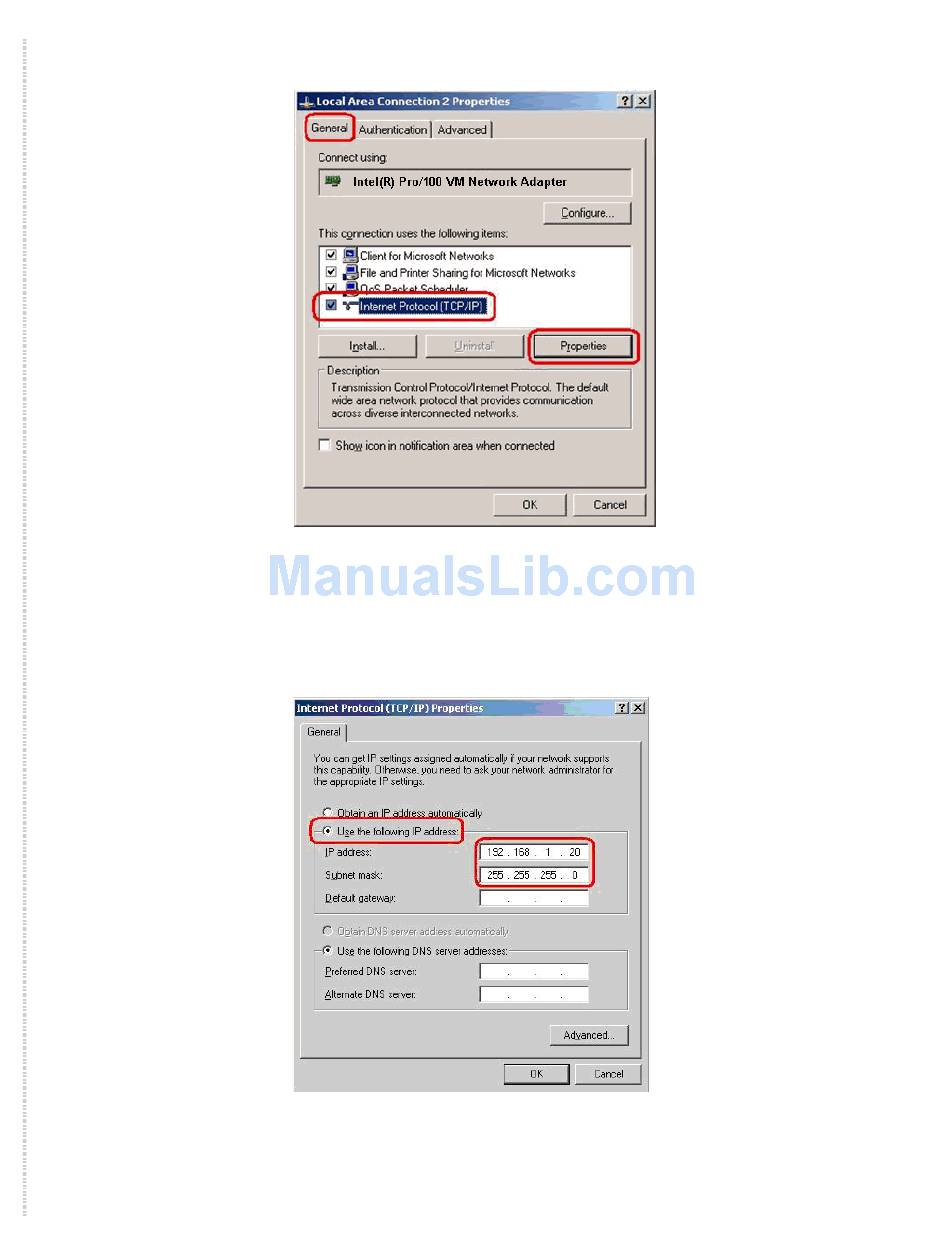

Figure 7: Local Area Connection Properties (Windows XP)
5 In the Internet Protocol (TCP/IP) Properties dialog box, click on the radio
button labeled Use the following IP address. Type an address between
192.168.1.3 and 192.168.1.254 in the IP Address field (192.168.1.20 is
shown here as an example) and 255.255.255.0 in the Subnet Mask field.
Figure 8: TCP/IP Properties (Windows XP)
6. Click on OK twice to confirm your changes, and close the Control Panel.
6218-A2-ZB23-10
