Front Panel

6218-A2-ZB23-10
The front panel contains LED indicators that show the status of the unit.

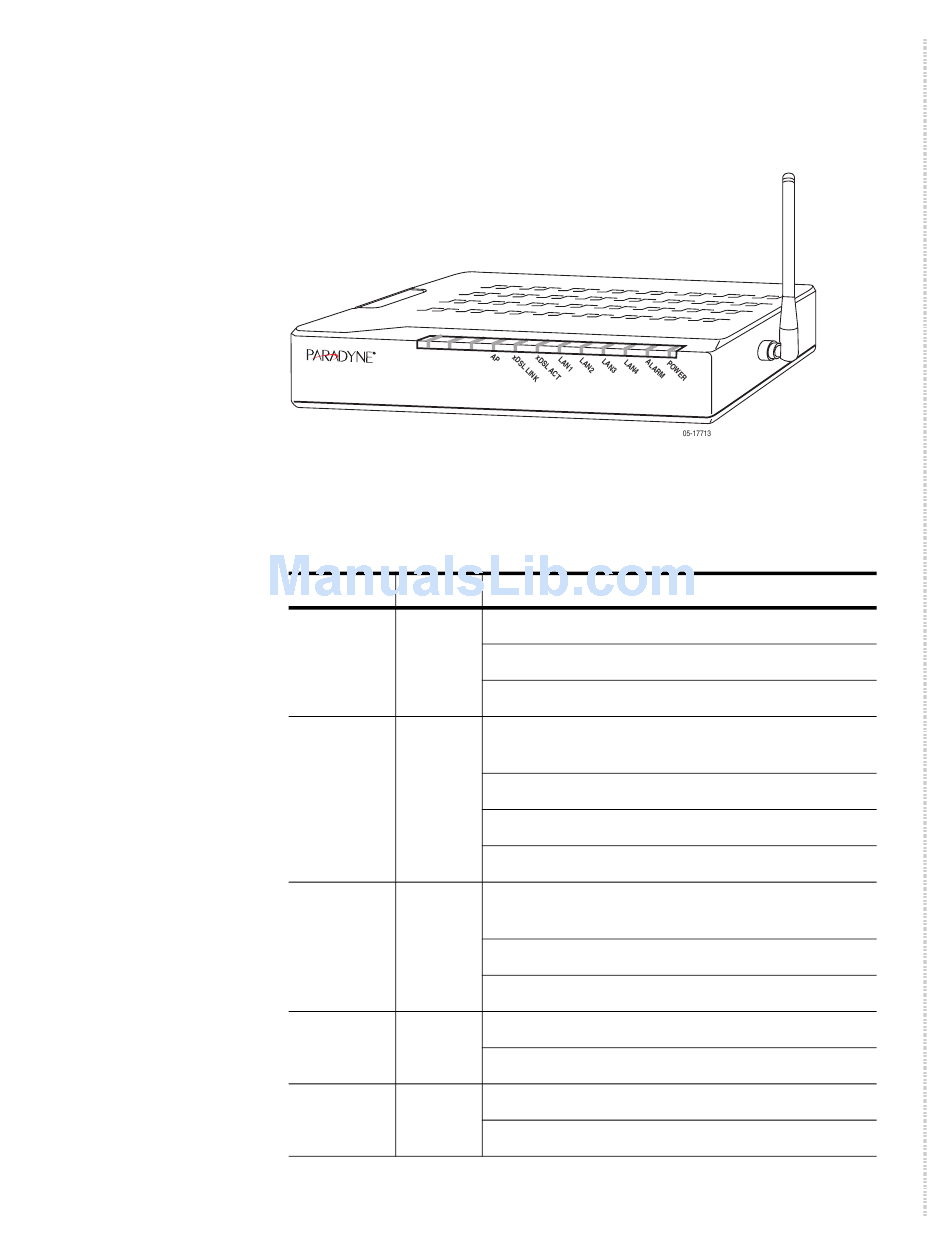

Figure 1: Front Panel LEDs
Table 1: Front Panel Label and LEDs
Label Color
xDSL LNK Green
xDSL ACT Green
LAN 1–4 Green
ALARM Red
POWER Green
Function
On: ADSL link is established.
Flashing: ADSL link is established and active.
Off: No ADSL link.
Off: No PPP connection is established or the
connection is not used.
Blinking: a PPP connection is being attempted.
Solid: A PPP connection is established.
Flickering: There is activity over the link.
On: The Ethernet interface is successfully
connected to a device through the LAN port.
Flashing: Data transfer at LAN connection
Off: No LAN link
On: ADSL is not connected.
Off: ADSL is connected.
On: Unit is powered on.
Off: Unit is powered off.
