Windows Xp - Zhone 6218-I2 User Manual

Windows XP

6218-A2-ZB23-10
1 In the Windows task bar, click on the Start button, and then click on
Control Panel.
2 Double-click on the Network Connections icon.
3 In the LAN or High-Speed Internet window, right-click on the icon
corresponding to your network interface card (NIC), and select
Properties. (Often this icon is labeled Local Area Connection). The Local
Area Connection dialog box displays with a list of currently installed
network items.
4 Ensure that the check box to the left of the item labeled Internet Protocol
(TCP/IP) is checked, and click on Properties.

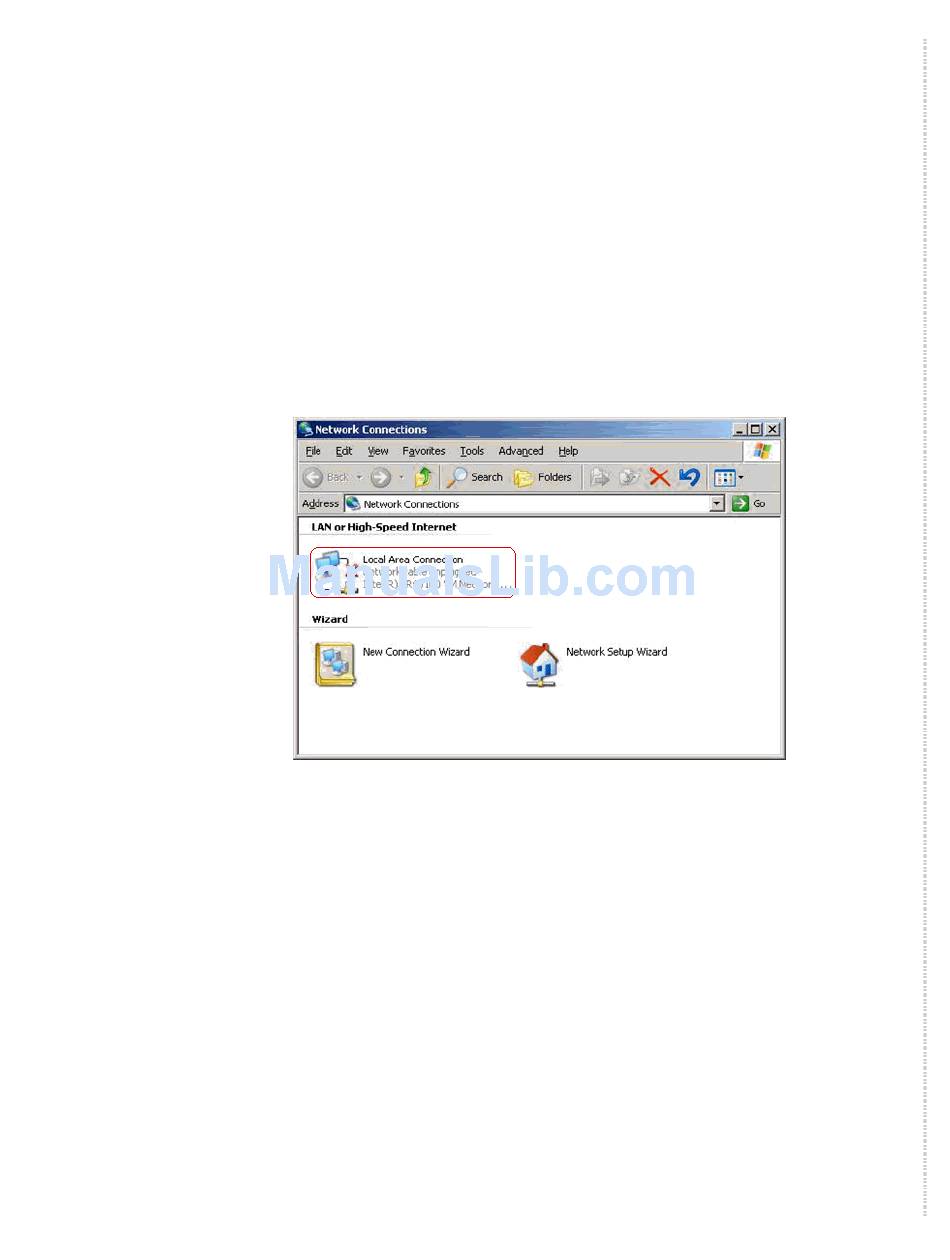

Figure 6: Network Connections (Windows XP)
Configuring Your Computer
6218-I2 Wireless Router User's Guide
21
