Attaching The Wheel - Kitronik :MOVE Mini Manual

6
7

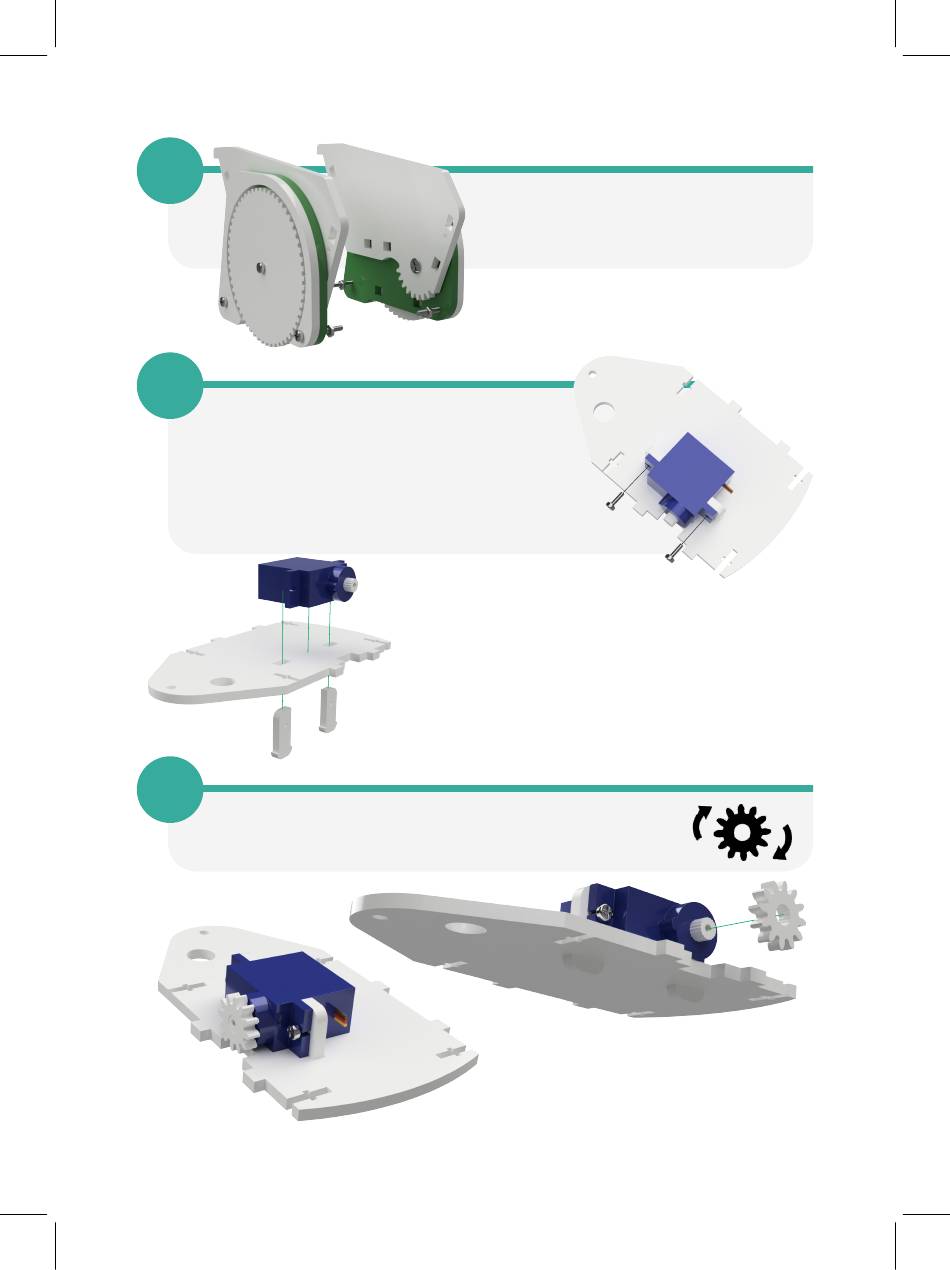

Place the servo onto the base panel and
slot the connectors into the base from
below with the flat edge facing inwards.
Screw the servo into place with the
M2x6mm bolts: these should pass through
the servo and thread into the perspex.
8
Press the servo gear onto the servo to fit firmly in
place and rotate fully clockwise.
Repeat steps 3-5 for the opposite
side, making sure components
are in reverse order.
NOTE: Ensure the servo is fitted with
the axle lined up with the cut-out in the
base panel as shown.
