Task:
Installing the Wall Mount Filter
It is important that the telephone filters be installed correctly. Follow these
instructions precisely. If the telephone filter is installed incorrectly (reversed),
the filter will not allow voice signals to pass. (See Figure 1-2, Wall Mount
Filter Installation.)
Step Action
1
6
7
8
9
10
11
STOP
You have completed this task.
Revision 2.01
Check for a dial tone.
Remove the telephone from its wall mount by pushing it upward and pulling
it away from the mounting pins. The telephone may have a short "pig tail" line
cord connecting it to the jack. If the phone has a "pig tail" line cord, disconnect
it from the wall jack.
Plug the filter's short "pig tail" line cord into the wall jack.
Install the wall mount filter by placing it over the wall jack and sliding it
downward until it is seated on the mounting pins.
Plug the telephone "pig tail" line cord into the jack located on the front of the
filter.
Install the telephone on wall mount filter.
Verify dial tone. If a dial tone is not present, check all connections.

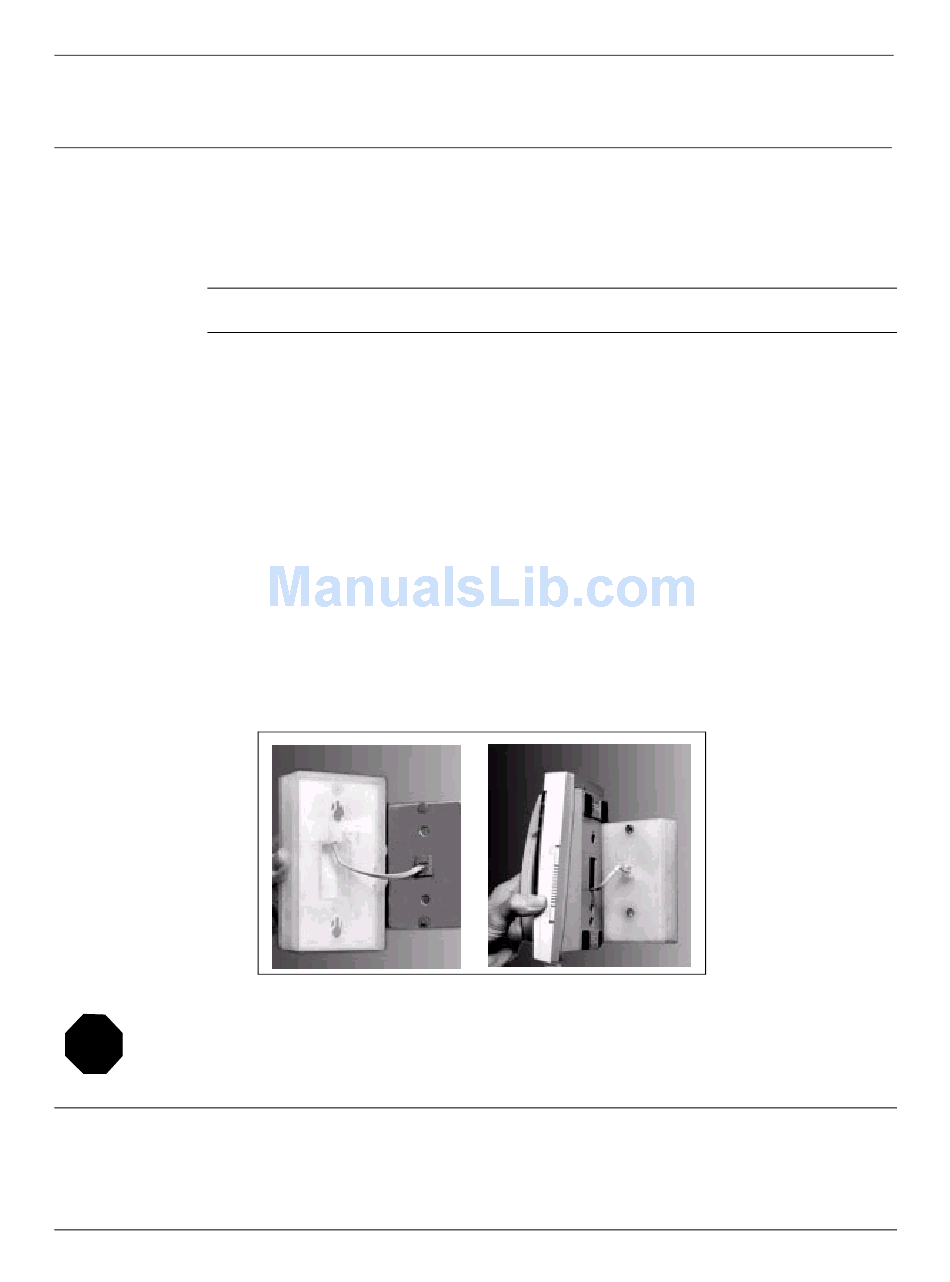

Figure 1-2. Wall Mount Filter Installation
