Additional telephones on the modem phone line

The Elite Modem allows you to hook-up your computer and telephone to the
same line, providing simultaneous voice service with high-speed data service.
Telephones or answering devices connected directly to the Elite Modem do not
require external telephone filters. The Elite Modem has a built-in voiceband
filter on the telephone connection, so that the signal noise of the data traffic
does not interfere with voice conversations.
However, if you have additional phones (on different jacks) connected to the
same line as the modem (extension phones, etc.), you may need an external
filter.
Test all additional lines for correct operation (no data noise) while the Elite
Modem is running and in service. If you hear noise interference while using an
extension phone, you may need to install a telephone filter between that phone
and its wall jack. Test all extension telephones for noise interference and install
filters as needed using the task instructions on the following pages.
Table 1-3. Telephone Filters
Filter
You can order voiceband filters from the Elite Modem product distributor or
service provider.
Revision 2.01

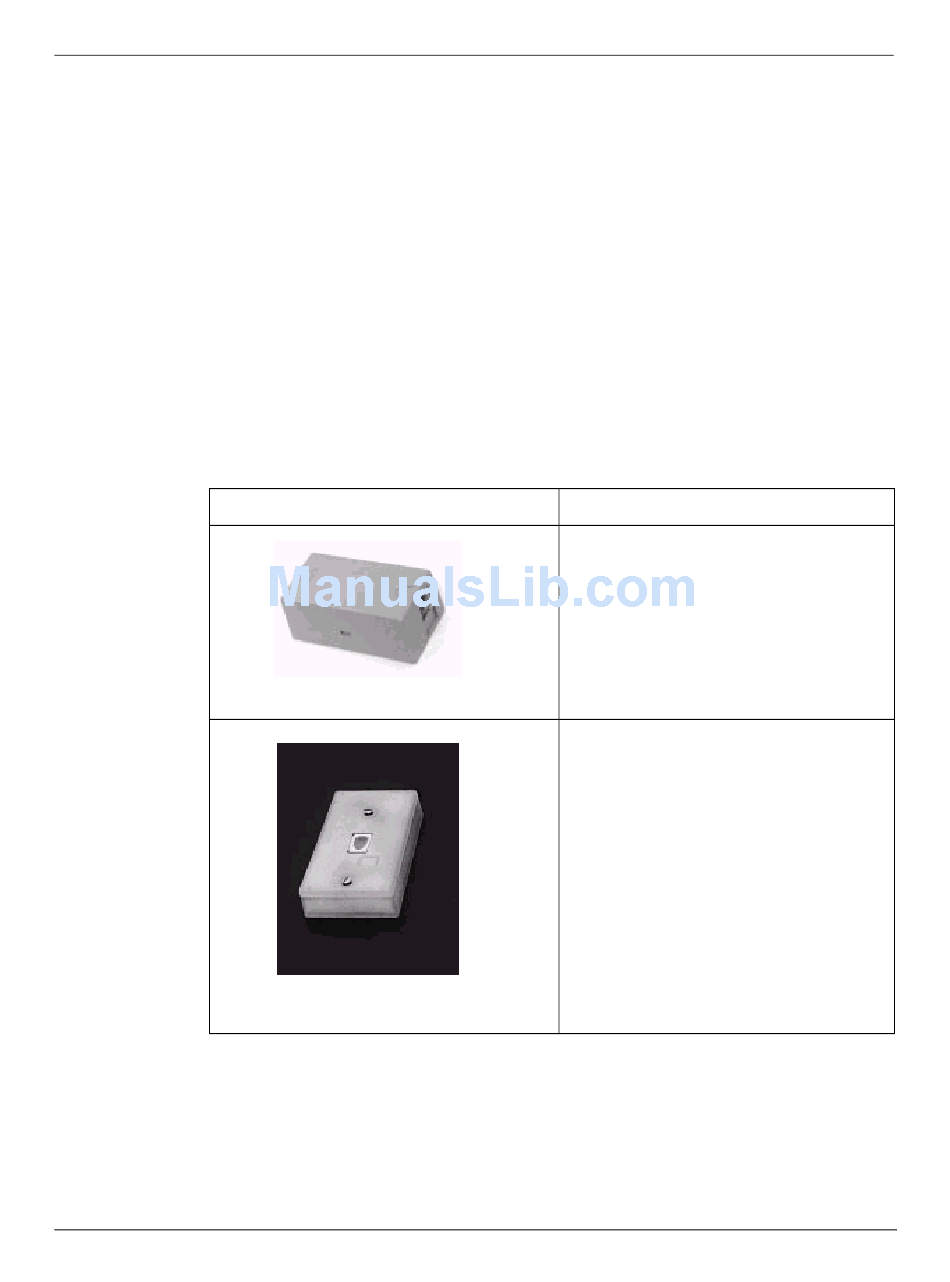

Desk Mount Filter
Wall Mount Filter
Elite Modem Installation Guide
Installing the Elite Modem 1-7
Description
Use to connect fax machines,
answering machines, and desk
telephones that are not directly
connected to the Elite Modem.
See "Installing the Desk Mount Filter" on
page 1-8.
Use with wall-mounted telephones.
See "Installing the Wall Mount Filter" on
page 1-9.
