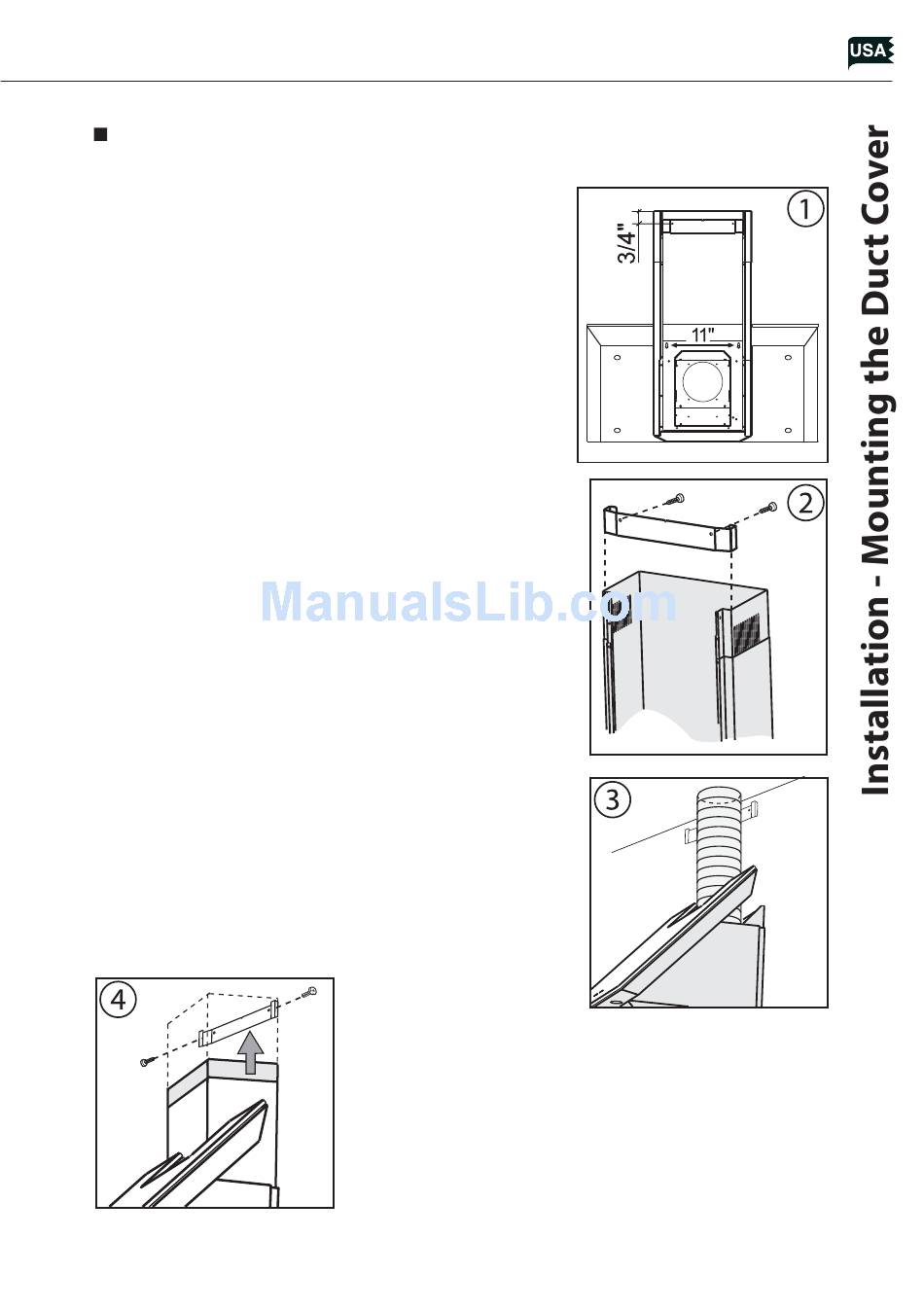

MOUNTING THE DUCT COVER

1. Install the electrical wiring and test hood for
functions prior to installing the duct covers.
2. If using hood in air recirculating mode make sure
to install the air diverter plate prior to mounting
the duct covers. See the manual included with
the recirculating kit for more instructions.
3. Secure duct cover bracket to top of wall just be-
low the ceiling observing the distance shown in
Fig.1, and using (2) screws provided. See Fig. 2
4. Place ducting from ceiling over the collar on top
of the hood and secure using aluminum duct
tape. See Fig. 3
5. Insert top duct cover into bottom duct cover.
Seat the duct covers correctly on the hood.
6. Extend top duct cover up and secure to the duct
cover bracket using (2) screws. See Fig. 4
- 3 -
