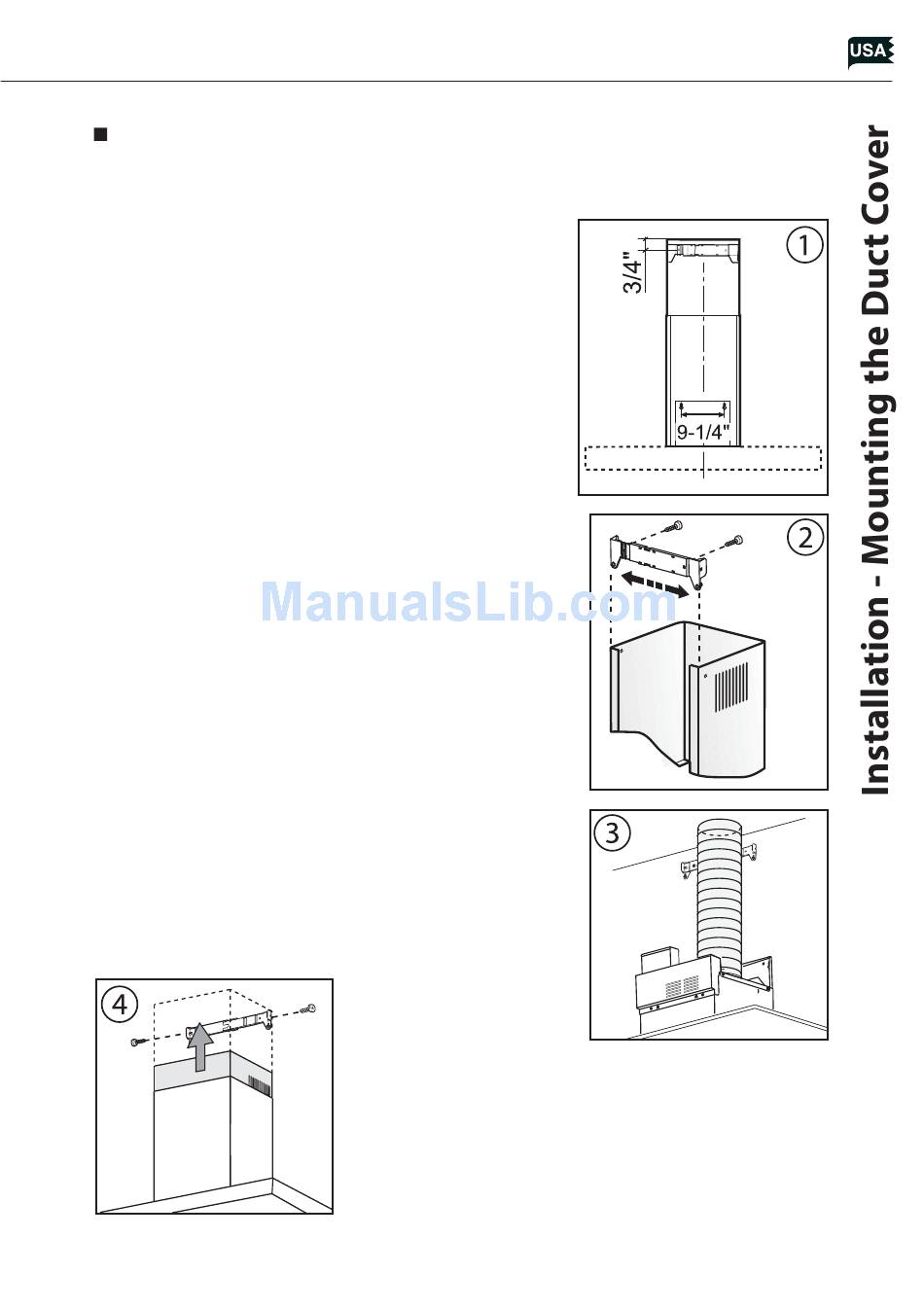

MOUNTING THE DUCT COVER

1. Install the electrical wiring and test hood for functions prior to installing the

duct covers.

2. If using hood in air recirculating mode make sure

to install the air diverter plate prior to mounting

the duct covers. See the manual included with

the recirculating kit for more instructions.

3. Adjust the width of the duct cover support bra-

cket so that it fi ts inside the top of the chimney

and observing the distance shown in Fig.1

4. Secure duct cover bracket to top of wall just

below the ceiling using (2) screws provided.

See Fig. 2

5. Place ducting from ceiling over the collar on top

of the hood and secure using aluminum duct

tape. See Fig. 3

6. Insert top duct cover into bottom duct cover.

Seat the duct covers correctly on the hood.

7. Extend top duct cover up and secure to the duct

cover bracket using (2) screws. See Fig. 4
