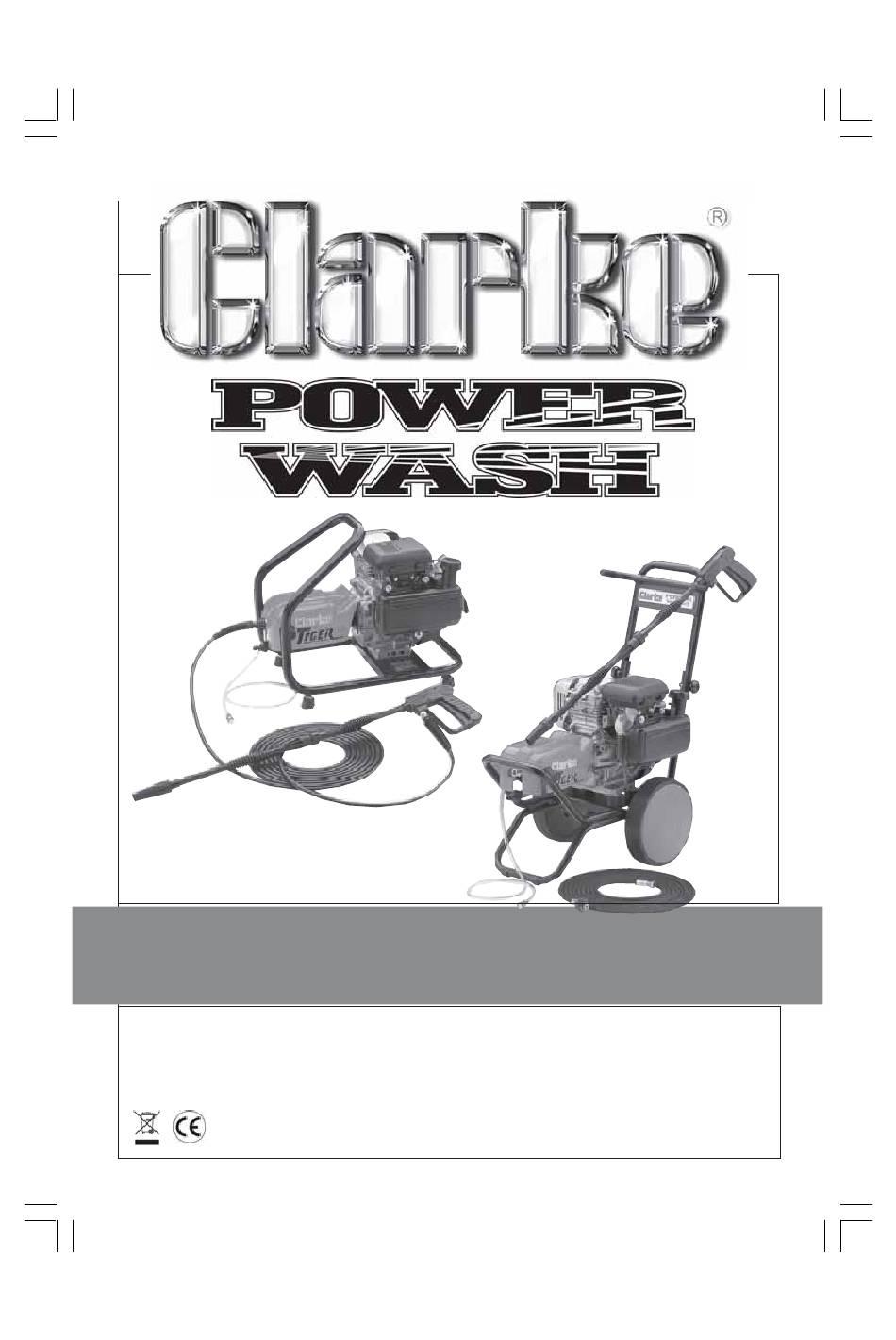

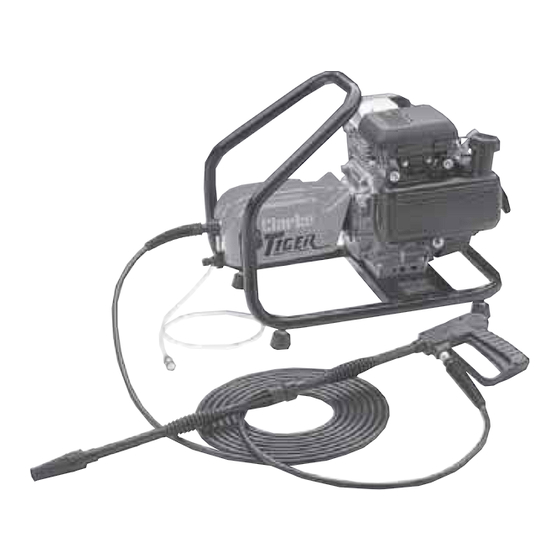

- Page 1 TIGER ENGINE DRIVEN WASHERS TIGER ENGINE DRIVEN WASHERS MODEL No: Tiger 1501 - 1801 OPERATION & MAINTENANCE INSTRUCTIONS...
-
Page 2: Specifications
Waste Electrical and Electronic equipment, at a recognised disposal facility. Please note that the details and specifications contained herein, are correct at the time of going to print. However, CLARKE International reserve the right to change specifications at any time without prior notice. -
Page 3: Safety Precautions
Safety Precautions WARNING: As with all machinery, there are certain hazards involved with their operation and use. Exercising respect and caution will considerably lessen the risk of personal injury. However, if normal safety precautions are overlooked or ignored, personal injury to the operator or damage to property, may result. WARNING : Water at high pressure can be dangerous if subject to misuse. - Page 4 Features These fully portable machines incorporate a variable pressure control, together with a fan or jet spray, and may be used with or without detergent. Although these machines were designed to operate using a mains water supply, they will also work satisfactorily with a supply which is under positive pressure, i.e.
-
Page 5: Operation
When required, the detergent pick up hose should be connected to the spigot adjacent to the high pressure hose connector. Check the engine fuel and oil lvels,(Refer to oil levels in the engine handbook, top up if necessary. Operation Turn the water supply ON fully at the mains. Trigger Lock Release the safety catch on the lance trigger (OFF), squeeze the trigger to expel any air in the system. -
Page 6: Maintenance
(see Fig. 1), the correct level is indicated when the oil is in line with the red dot. If the level falls below the red dot, top up with Clarke pump oil (sae 30 - part No 3055801). To top up the oil, proceed as follows: Ensure the engine is not running. -
Page 7: Parts List
Parts List Description Part Number Tiger1501 Tiger1801 Engine 1501 Honda 7999010 7999020 Pump 21652 21653 Frame 1321910 8820027 Wheel 1801 (not shown) 2100303 Clip RDF 25 1801 (not shown) 2100304 Cover 1982311 1982311 Drive Key 881090 881090 Foot 1321920 380242 Hose Connection 1270940 1270940... -
Page 8: Parts Diagram
Parts Diagram...
