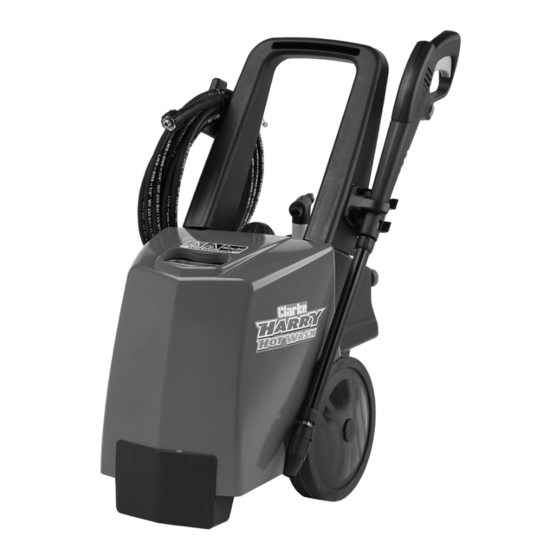

- Page 1 WARNING: Read these instructions before using the machine HOT WASHER MODEL NO: HARRY PART NO: 7320180 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS LS0119 - ISS 1...
-
Page 2: Environmental Protection
INTRODUCTION Thank you for purchasing this CLARKE Hot Washer. The machine has been designed to use hot or cold water to clean any surfaces which can stand the force of the high pressure water jet and the action of the detergents used. -
Page 3: General Safety Rules
4. NEVER allow children or untrained personnel to use this machine. 5. NEVER operate the machine with any of the covers removed. 6. NEVER attempt any repairs to this machine. Always refer to your Clarke dealer. 7. NEVER supply any liquid other than water to the water inlet. -
Page 4: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz. -
Page 5: Extension Cables
EXTENSION CABLES If an extension cable is used, always ensure it is fully unwound. When used outdoors, ensure that the extension cable is specifically designed for outdoor use. Ensure that the cable is rated for the voltage and amperage of the machine. -
Page 6: Attach The Handle
ASSEMBLY 1. Remove all items from the carton. • The following items should be supplied. If any parts are missing or damaged, please see your Clarke dealer. 1 x High Pressure Cleaner 1 x Gun Assembly 1 x Upper Handle Assembly 1 x Lance &... -
Page 7: Connect The Hose Adaptor
CONNECT THE HOSE ADAPTOR 1. Insert the Water inlet filter into the water inlet, 2. Screw the supplied hose adaptor onto the water inlet as shown. CONNECT THE HIGH PRESSURE HOSE 1. Push the end of the high pressure hose into the gun assembly as shown. - Page 8 OVERVIEW Handle OFF/ON/BURNER switch Lance Detergent bottle Diesel tank filler cap Water outlet Power cable High pressure hose Water inlet adaptor + filter Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 9: Before Use
BEFORE USE FILL WITH FUEL (DIESEL ONLY) • Always refuel in a well-ventilated area. • Do not leave fuel within the reach of children. • Refuel carefully to avoid spillages. 1. Remove the filler cap. 2. Fill the tank with diesel fuel. •... -
Page 10: Attach The Extension Lance
1. Connect a supply hose to the inlet adaptor. • We recommend that you use a push fit quick connector (not supplied) . • The water supply must be able to deliver at least 7.5 l/min with an inlet temperature not exceeding 40°C. -
Page 11: Operation
OPERATION SWITCHING ON/OFF 1. Rotate the switch to the required setting. • 0 - OFF • 1 - ON (cold wash) • Flame symbol - Hot Wash AUTOMATIC STOP SYSTEM The Automatic Stop System stops the machine during the bypass mode. The Automatic Stop System will stop the machine and will restart it automatically when the trigger is pulled. -
Page 12: Adjusting The Pressure
OPERATING TEMPERATURE FOR THE DETERGENT IN USE. Only use detergents recommended for use with pressure washers such as: • CLARKE Traffic Film Remover which is a powerful ‘low foaming’ agent for car cleaning, patio cleaning etc., • CLARKE Wash & Wax. -
Page 13: Care And Maintenance
CARE AND MAINTENANCE WARNING: DISCONNECT THE MACHINE FROM THE POWER SOURCE DURING CLEANING OR MAINTENANCE. WARNING: DO NOT SPRAY THE MACHINE WITH WATER AND DO NOT USE DETERGENTS OR AGGRESSIVE SOLVENTS AS THEY COULD DAMAGE THE MACHINE. 1. Clean the exterior part of the machine with a dry cloth. CLEANING THE WATER INLET FILTER: To ensure the pump gives good service it is extremely important to check and clean the water inlet filter frequently. -
Page 14: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION The pump The plug is not properly Connect the plug to the power socket does not connected to the correctly. start when socket. the switch is The electrical socket is Have the electrical socket checked. pressed. - Page 15 Uneven Lance nozzle fouled or Remove the lance from the gun and working dirty. clean the nozzle with the pin pressure. provided. Air in water supply. Supply the machine with water correctly. Water Inlet filter fouled. Remove and clean the filter (see “MAINTENANCE”...
- Page 16 Tank empty. Fill the tank. machine Lance handgrip on high Move it to the low pressure setting by does not pressure setting (if pulling the lever towards the nozzle. suck in present). detergent. Transparent suction pipe Reconnect the pipe. If the problem damaged or persists contact an authorised service disconnected.
-
Page 17: Product Specifications
PRODUCT SPECIFICATIONS Model Number Harry Part Number 7320180 Voltage 230 V / 50 Hz / 1 Phase Motor Input Power 2300W Motor Input Current 10 A Duty Cycle S1 (continuous) Max Inlet Water Pressure 10 Bar Working pressure 110 Bar... -
Page 18: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 19 DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
