Introduction / Video Link
Dipswitch & Wiring Diagram
Unlock door with Password
Outdoor Station Programming
Indoor Station Programming
Indoor Station:
LTH-D301GY-WIFI
• 7" video touch screen Indoor Station
• Built-in Mic and Speaker
• Support Wi-Fi / LAN network connection
• Power require: PoE, DC12V
© 2018 LT Security, Inc. All Rights Reserved. White papers, data sheets, quick start guides, and/or user manuals are for reference only and may or may not be entirely up to date or accurate based upon the version or models. Product names
mentioned herein may be the unregistered and/or registered trademarks of their respective owners. The knowledge base document designs for the internal training purpose only.
Knowledge Base

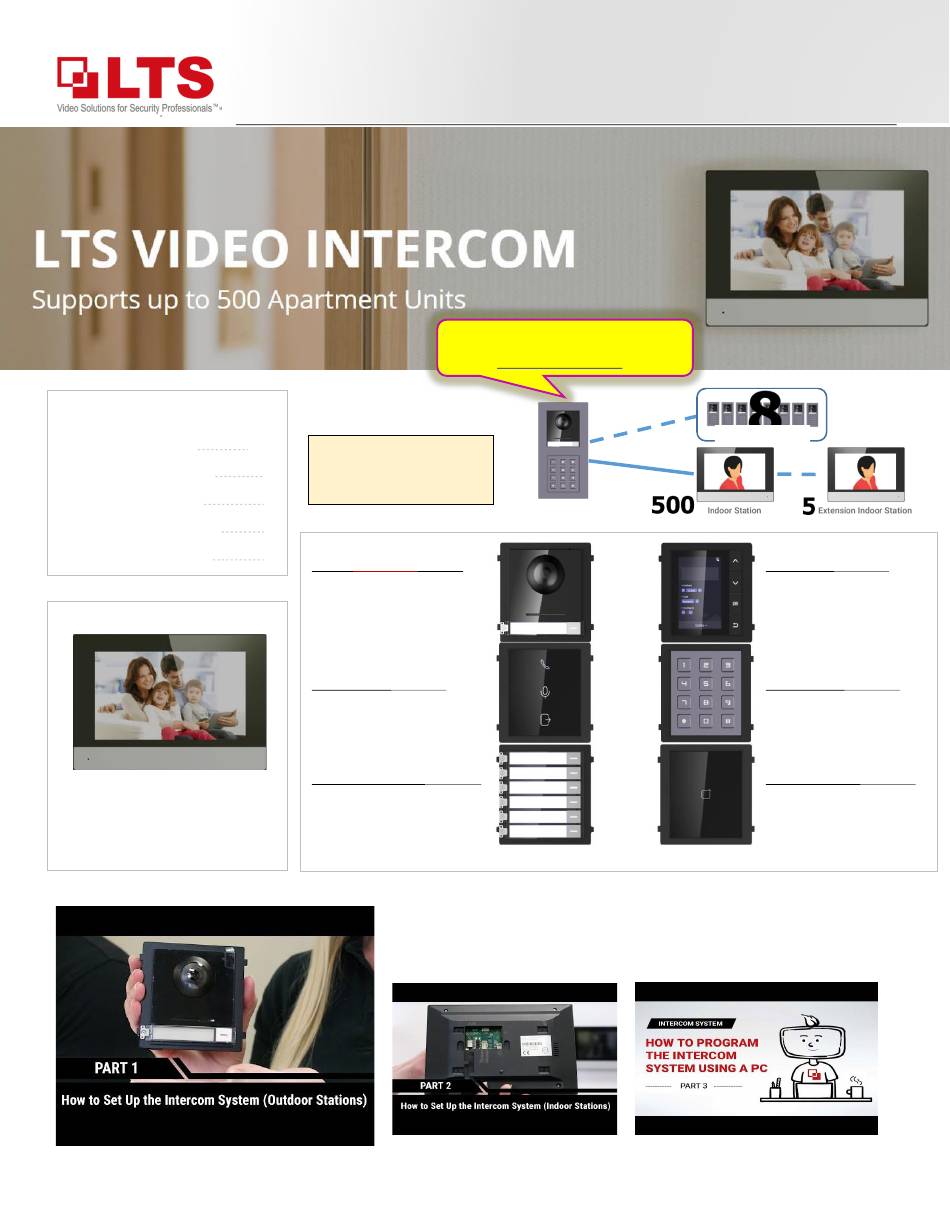

KB – Intercom M201 / D301GY-WIFI Guide
1 , 2
Minimal Requirement:
Intercom mandatory requires
3
1
& 1
Main Module
Indoor Station
4
5

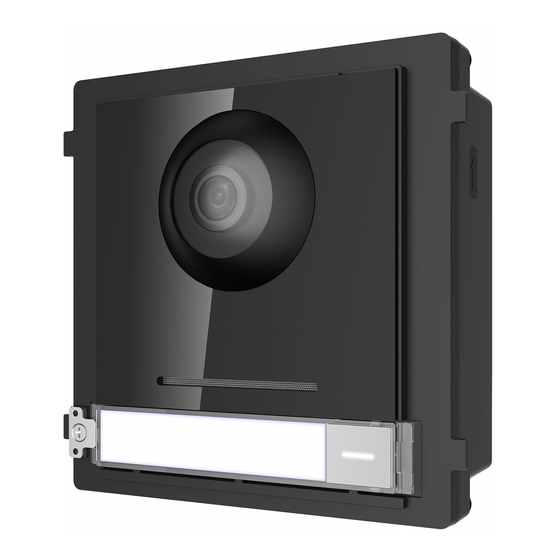

LTH-M201-C
8
Outdoor
Main Module
(or Extend)
This main module comes with 2 MP
camera with a Name Tag button.
Support built-in Mic and speaker
Support up to other 8 Ext Outdoor Module
LTH-M201-IM
Status Indicator
sub module
Status indicator only provide with
3 colors LED status, it is not a button.
LTH-M201-6B
Name Tags & 6 buttons
Which allows the main module to ring up to
6 additional rooms. This module has the
backlight feature but it only turns on
when the M201-C goes into the night mode.
Important Notice:
MUST UPGRADE
the main module
firmware
or
latest version. There are several important patches since released.
Please Check:
www.ltsecurityinc.com/downloads
.
Main Outdoor Station
sub module
Video & Tutorial
Jimmy Wang
Text:
Jamie Lin, Perry Chung
Reference:
NVMSv3
to the
Sub Outdoor Station
LTH-M201-DIS
Touch Screen
Popular sub module. It supports
address book and more features.
Usually, sell as a combo package
with the M201-KP together.
LTH-M201-KP
Number Keypad
LTH-M201-MCR
Mifare Card Reader
Only support reading 34-bit key.
There is no 26-bit function supported.
13.56MHz Card Reader
sub module
sub module
sub module
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for LTS LTH-M201-C
Summary of Contents for LTS LTH-M201-C
- Page 1 Intercom mandatory requires Dipswitch & Wiring Diagram & 1 Main Module Indoor Station Unlock door with Password Main Outdoor Station Outdoor Station Programming LTH-M201-C LTH-M201-DIS Indoor Station Programming Outdoor Main Module Touch Screen sub module (or Extend) This main module comes with 2 MP Popular sub module.
- Page 2 The 2-wire Intercom model is a standalone intercom system. It is running 2 wires to communication with each device. You need at least 3 things to make a Set. Power (LTH-MD06-2), Main Module (LTH-M201-C-2), Indoor Station (LTH-D301GY-WIFI-2). The Power Module support 1 Main Module with 5 Indoor Station Module.
- Page 3 However, you need to program the 2nd door strike with the Indoor Station LTH-D301GY-WIFI to push release it. Meanwhile, the Mobile app LTS Connect only support to release the Door1 only. Please be aware of this. Also, each Main module only supports up to 3 unlock passwords if use the M201-KP keypad to open.
- Page 4 =call Room 101 Use Outdoor Station’s Name Tag button to call Mobile App. The mobile app is using LTS Connect. You need to create an account and adding the QR code. The QR code only exists in the 1 Indoor Station configuration panel.
- Page 5 Activation & Setup For the first time, you need to activate the Indoor Station & Outdoor Station. There are two ways to activate the station. (See video link in Page 1) Activate it through the Indoor Station Setup Wizard. Use Windows PC to activate it. (Require NVMSv3 software) However, the difference is the first method is for the simple intercom environment.
- Page 6 NameTag Define NameTag & Call to Indoor Station In the Remote Configuration, you can define the M201-C Main Module NameTag button where it calling to. The room number is the Indoor Station Room No. About the 6 NameTag module define: You can find it from Intercom >...
- Page 7 Mifare Card Reader If you have the Mifare Card Reader LTH-M201-MCR, each camera module can add up to 10,000 13.56MHz Mifare Cards or key fob. The card reader is pre-program with 34bit. So, it only can read the 10 digits code from the cards or the key fobs. To program it is the same as the Access Control programming in the NVMSv3 software.
- Page 8 Indoor Station Setup The Indoor station activation wizard is straight forward. Please follow the video to setup. What is the difference between Indoor and Indoor Extension? The indoor station extension is extended from the indoor station in the same house. You can connect ups to 5 extensions to the same indoor station each.
- Page 9 Q: Can the NameTag Dial to the Call Center (NVMSv3) instead of the Indoor Station? A: Yes, you can. However, you need to do some adjustments first. You only can use the M-201c to call the Call Center. The submodule is not able to connect the call center.
