LTS LTH-D301GY-WIFI-2 Configuration Manual

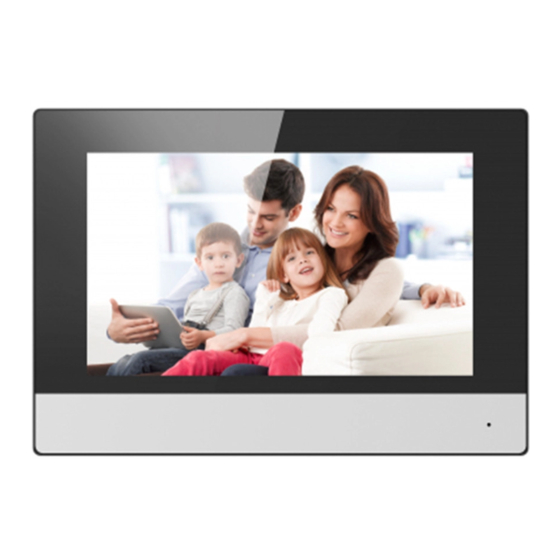

Two-wire indoor station
Hide thumbs Also See for LTH-D301GY-WIFI-2:

Advertisement

Table of Contents

Two-Wire Indoor Station
Configuration Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LTH-D301GY-WIFI-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LTS LTH-D301GY-WIFI-2

Summary of Contents for LTS LTH-D301GY-WIFI-2

  • Page 1 Two-Wire Indoor Station Configuration Guide...
  • Page 2 Two-Wire Indoor Station Configuration Guide Legal Information About this Manual The Manual includes instructions for using and managing the Product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons.
  • Page 3 Two-Wire Indoor Station Configuration Guide Data Protection During the use of device, personal data will be collected, stored and processed. To protect data, the development of our devices incorporates privacy by design principles. For example, for device with facial recognition features, biometrics data is stored in your device with encryption method; for fingerprint device, only fingerprint template will be saved, which is impossible to reconstruct a fingerprint image.
  • Page 4 Two-Wire Indoor Station Configuration Guide Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, Caution could result in equipment damage, data loss, performance...

  • Page 5: Table Of Contents

    Two-Wire Indoor Station Configuration Guide Contents Chapter 1 Typical Application ..................... 1 Chapter 2 Local Operation ......................2 2.1 Activate Indoor Station ......................2 2.2 Quick Operation ........................3 2.3 Configuration Settings ......................5 2.3.1 Set Indoor Station Network Parameters ..............5 2.3.2 Set Linked Device IP ....................

  • Page 6: Chapter 1 Typical Application

    Two-Wire Indoor Station Configuration Guide Chapter 1 Typical Application The typical application of the device is shown as below. Figure 1-1 Typical Application Wire the door station to the indoor station with 2-wire cables. You can activate door station by indoor station. Set the open duration and other parameters by indoor station.

  • Page 7: Chapter 2 Local Operation

    Two-Wire Indoor Station Configuration Guide Chapter 2 Local Operation 2.1 Activate Indoor Station You can only configure and operate the indoor station after creating a password for the device activation. Steps 1. Power on the device. It will enter the activation page automatically. Figure 2-1 Activation Page 2.

  • Page 8: Quick Operation

    Two-Wire Indoor Station Configuration Guide 2.2 Quick Operation After device activation, the wizard page will pop up. Steps 1. Choose Language and tap Next. Figure 2-2 Language Settings 2. Set network parameters and tap Next – Edit Local IP, Subnet Mask and Gateway parameters. –...
  • Page 9 Two-Wire Indoor Station Configuration Guide Figure 2-4 Indoor Station Settings 4. Linked related devices and tap Next. If the device and the indoor station are in the same LAN, the device will be displayed in the list. Tap the device or enter the serial No. to link. Figure 2-5 Related Device 1) Tap the door station in the list to link.

  • Page 10: Configuration Settings

    Two-Wire Indoor Station Configuration Guide 5) Tap OK to save the settings. 5. Tap Finish to save the settings. 2.3 Configuration Settings Configuration settings is required before starting using the indoor station. It is necessary to set the indoor station network, room No., linked devices, device time display, and so on. 2.3.1 Set Indoor Station Network Parameters Network connection is mandatory for the use of the indoor station.

  • Page 11: Set Linked Device Ip

    Two-Wire Indoor Station Configuration Guide 2. Enable DHCP, then the indoor station can search and get an IP address automatically. Note Skip the following steps if you have enabled DHCP. 3. Set the IP address manually. 4. Tap to select the NIC Type. 2.3.2 Set Linked Device IP Linked network parameters refers to the network parameters of devices (like door station, doorphone, master station, center, etc.), to which the indoor station is linked.
  • Page 12 Two-Wire Indoor Station Configuration Guide Figure 2-7 Device Management (Private SIP) Figure 2-8 Device Management (Standard SIP) 2. Tap Main Door Station to pop up the device information dialog.

  • Page 13: Set Indoor Station No

    Two-Wire Indoor Station Configuration Guide Figure 2-9 Device Information Restore the door to restore the parameters of the door station. station via indoor station. Modify the IP to modify the IP address of door station. address of the linked door station. 3.

  • Page 14: Door Settings

    Two-Wire Indoor Station Configuration Guide Figure 2-10 Set Indoor Station No. 2. Select Indoor Station to set the indoor station No. (Room No.) and the floor No. 3. Select Indoor Extension to set the indoor extension No. and the room name. 2.4 Door Settings Steps 1.
  • Page 15 Ringtone There are 3 ringtones by default, and you can custom and import at most 4 ringtones via Batch Configuration Tool or LTS Version Client Software. Ringtone Duration: The maximum duration of indoor station when it is called without being accepted.

  • Page 16: Restore Indoor Station

    Two-Wire Indoor Station Configuration Guide 2.6 Restore Indoor Station Steps 1. Tap Settings → → Configuration → to enter the restore default settings page. Figure 2-12 Restore Default Settings 2. Tap Restore Default Settings to restore the default settings and reboot the system. 3.
  • Page 17 Two-Wire Indoor Station Configuration Guide Figure 2-13 System maintenance Clear Screen Enable Clear Screen to clear the screen. Note ● After enabling Clear Screen function, press and hold the Unlock key to exit the clear screen mode. ● The device without unlock key will exit the clear screen mode automatically when the time is out.

  • Page 18: Linked To The Mobile Client

    Two-Wire Indoor Station Configuration Guide Do Not Disturb Tap Settings → to enter the call settings page. Tap Do Not Disturb to choose Close, All Day or Schedule. Note If you choose the Schedule, you should set the start time and end time. 2.8 Linked to the Mobile Client Steps 1.
