LTS LTH-301m-WIFI Quick Manual

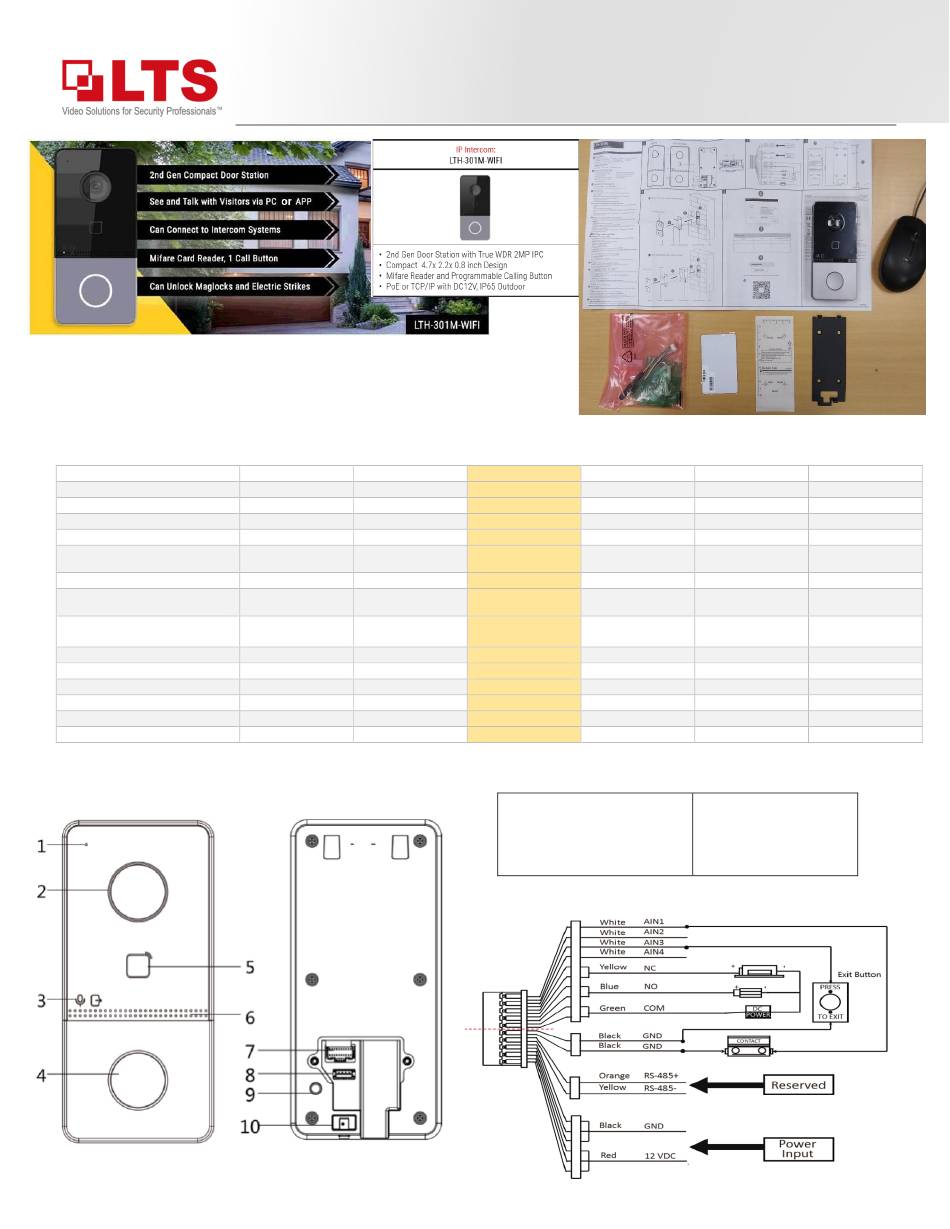

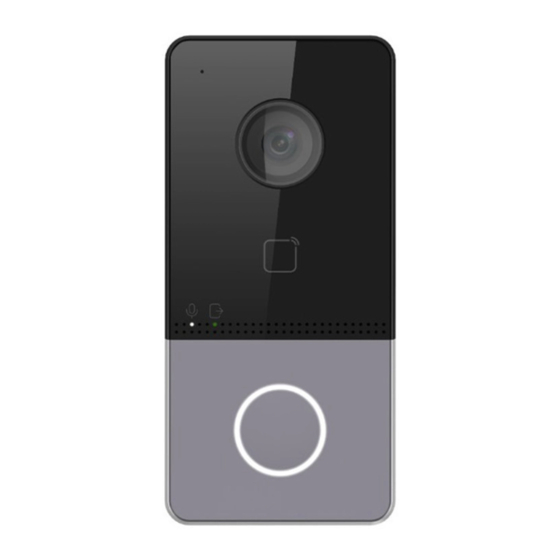

LTH-301m-WIFI is a modern stylish intercom device with a compact design. The size
is slightly larger than a computer mouse. It is sleek and professional looking when
installed.
The LTH-301m-WIFI is developed based on technology from the LTH-M201-C. In theory, it can replace the LTK3500S in a few ways.
Product Line
Call Intercom Indoor Station
Max # of Apartments / Offices
Call NVMS V3
Call LTS Connect APP without Indoor
Station
Build-in Card Reader
Max # of Cards (and Faces for 3410
and 3607)
Code Entry
Scheduled Unlock/Remain Lock
PC Software (NVMS V3) Unlock **
Facial Recognition
Dimension L x W x H
S=Surface Mount, F=Flush Mount
Power Supply
© 2020 LT Security, Inc. All Rights Reserved. White papers, data sheets, quick start guides, and/or user manuals are for reference only and may or may not be entirely up to date or accurate based upon the version or models. Product names
mentioned herein may be the unregistered and/or registered trademarks of their respective owners. The knowledge base document is designed for internal training purpose only.
Knowledge Base
KB – LTH-301m-WIFI
LTH-M001 LTH-M201-C
Intercom Intercom
Yes Yes
1 500
Yes Yes
Yes No
No Add MCR module
N/A 10,000
No Add KP module
No No
No Yes
No No
6.4"x 2.9"x 2.1" 4.6"x 4.2"x 1.3"
S S or F
PoE/DC12V 1A PoE/DC12V 1A
Quick Guide
LTH-301M-WIFI LTK3500S(F)
Intercom Access Control
Yes No
1 1
Yes Yes
Yes Yes
Yes Yes
256 50,000
Add Wiegand
No
Keypad Reader
No Yes
Yes Yes
No No
4.7"x 2.2"x 0.8" 8.6"x 3.1"x 1.6"
S S
PoE/DC12V 1A DC12V 1A
Hardware Description:
1 Microphone
2 Camera
3 Indicator Unlock
(Green; unlock)
4 Button
(White Color; show at night)
5 Card Reading Area
Terminal Wire Diagram:
Jimmy Wang
Text:
LTK3410MF LTK3607FM
Access Control Access Control
Yes Yes
500 500
Yes Yes
Yes No
Yes Yes
1,500 6,000
Yes Yes*
Yes Yes
Yes Yes
Yes Yes
6.8"x 3.3"x 0.9" 9.4"x 4.6"x 1.3"
S S
DC12V 2A DC 12V 3A
6 Loudspeaker
7 Terminals
8 Debugging Port (no use)
9 TAMPER Sensor
10 Set Screw
