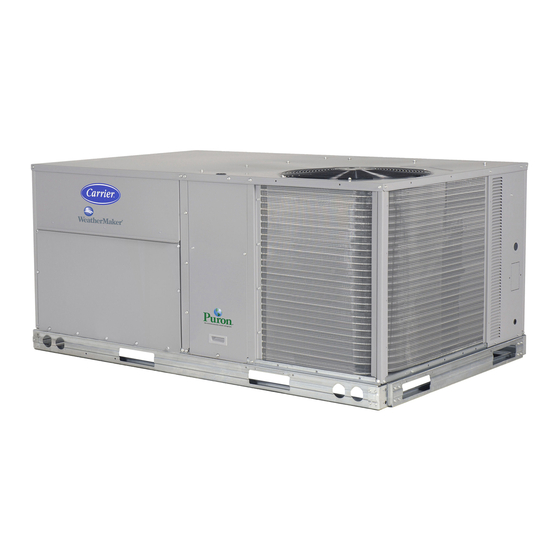

Carrier WeatherMaker 50TC07 Series Installation Instructions Manual

Single package rooftop cooling only with puron (r-410a) refrigerant
Hide thumbs Also See for WeatherMaker 50TC07 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
50TC units for installation in the United States contain use of Carrier's Staged Air Volume (SAV™) 2-speed
indoor fan control system. This complies with the U.S. Department of Energy (DOE) efficiency standard of
2018.
50TC units for installation outside the United States may or may not contain use of the SAV 2-speed indoor
fan control system as they are not required to comply with the U.S. Department of Energy (DOE) efficiency
standard of 2018.
For specific details on operation of the Carrier SAV 2-speed indoor fan system refer to the Variable
Frequency Drive (VFD) Factory-Installed Option 2-Speed Motor Control Installation, Setup, and
Troubleshooting manual.
CONTENTS
SAFETY CONSIDERATIONS. . . . . . . . . . . . . . . . . . . . 1-6
Rated Indoor Airflow (cfm) . . . . . . . . . . . . . . . . . . . . . . ..2
Pre-Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-55
Jobsite Survey . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Step 1 - Plan for Unit Location . . . . . . . . . . . . . . . . . . 6
Step 3 - Inspect Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Step 4 - Provide Unit Support . . . . . . . . . . . . . . . . . . . 7
Step 5 - Field Fabricate Ductwork. . . . . . . . . . . . . . . 9
Step 6 - Rig and Place Unit . . . . . . . . . . . . . . . . . . . . . 9
Ductwork . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Step 8 - Install Outside Air Hood . . . . . . . . . . . . . . . 10
Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Electric Heaters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Supply Air Temperature Sensor . . . . . . . . . . . . . . . . . 37
Field Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Economizer Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
RTU Open Controller System . . . . . . . . . . . . . . . . . . . 43
Field Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Communication Wiring - Protocols . . . . . . . . . . . . 50
Local Access. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Outdoor Air Enthalpy Control . . . . . . . . . . . . . . . . . . . 52
Smoke Detectors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Step 12 - Install Accessories. . . . . . . . . . . . . . . . . . . 54
Step 13 - Check Belt Tension . . . . . . . . . . . . . . . . . . 54
Pre-Start and Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
START-UP CHECKLIST . . . . . . . . . . . . . . . . . CL-1, CL-2
Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
Catalog No. 04-53500159-01
Single Package Rooftop Cooling Only
Installation Instructions
Page
Printed in U.S.A.
Form 50TC-7-01SI
®
with Puron
(R-410A) Refrigerant

SAFETY CONSIDERATIONS

Improper installation, adjustment, alteration, service, main-
tenance, or use can cause explosion, fire, electrical shock or
other conditions which may cause personal injury or property
damage. Consult a qualified installer, service agency, or your
distributor or branch for information or assistance. The quali-
fied installer or agency must use factory-authorized kits or ac-
cessories when modifying this product. Refer to the individual
instructions packaged with the kits or accessories when
installing.
Follow all safety codes. Wear safety glasses and work
gloves. Use quenching cloths for brazing operations and have a
fire extinguisher available. Read these instructions thoroughly
and follow all warnings or cautions attached to the unit. Con-
sult local building codes and appropriate national electrical
codes (in USA, ANSI/NFPA 70, National Electrical Code
(NEC); in Canada, CSA C22.1) for special requirements.
It is important to recognize safety information. This is the
safety-alert symbol. When you see this symbol on the unit and
in instructions or manuals, be alert to the potential for personal
injury.
Understand the signal words DANGER, WARNING, CAU-
TION, and NOTE. These words are used with the safety-alert
symbol. DANGER identifies the most serious hazards which
will result in severe personal injury or death. WARNING signi-
fies hazards which could result in personal injury or death.
CAUTION is used to identify unsafe practices, which may re-
sult in minor personal injury or product and property damage.
NOTE is used to highlight suggestions which will result in en-
hanced installation, reliability, or operation.
FIRE, EXPLOSION HAZARD
Failure to follow this warning could result in personal
injury or death.
Disconnect gas piping from unit when leak testing at pres-
sure greater than 0.5 psig (3450 Pa). Pressures greater than
0.5 psig (3450 Pa) will cause gas valve damage resulting in
hazardous condition. If gas valve is subjected to pressure
greater than 0.5 psig (3450 Pa), it must be replaced before
use. When pressure testing field-supplied gas piping at
pressures of 0.5 psig (3450 Pa) or less, a unit connected to
such piping must be isolated by closing the manual gas
valve.
Pg 1
WeatherMaker
50TC07
WARNING
12-17
Replaces: 50TC-4-7-02SI
®
