Summary of Contents for New Comfort CA3500

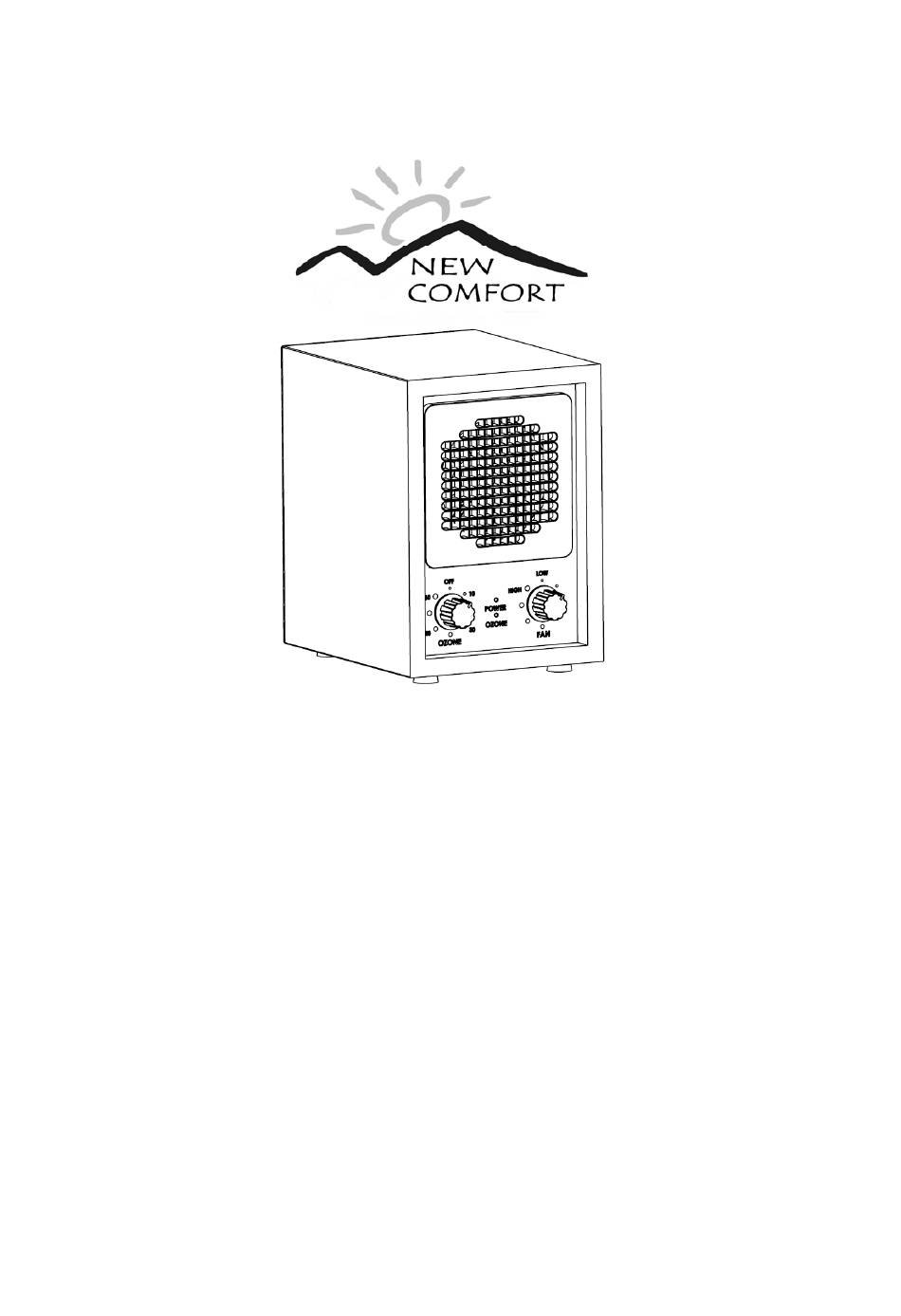

- Page 1 CA3500, BA3500, CH3500 New Comfort 6 Stage AIR PURIFIER INSTRUCTION MANUAL CAUTION: Read manual carefully for proper installation and operation.
-
Page 2: Table Of Contents
2 CONTENTS Specifications ...................... 2 Features ......................3 Introduction ......................4 Applications ......................5 Installation ......................5 Back Cover & Filter Removal ................6 Placing the Unit ....................7 Settings and Adjustments ................... 7 Maintenance ......................8 Replacing the Fuse ..................... 9 Troubleshooting .................... -
Page 3: Specifications
3 SPECIFICATIONS Model: CA3500, BA3500, CH3500 Rated Voltage: USA-AC 120V/60Hz Power Consumption: Fan Speed (non-grade): 1500-3000 RPM Ion Output ≥5 x 10 cm3 (or≥2.5 x 10 /cm3) Air Volume: Max 106 CFM(3 m /min) UV Spectrum: ≥20ìw/cm (at 10cm-distance) Sound Level (DV):... -
Page 4: Introduction
If the fuse is blown and needs to be changed. Fusing current no more than 1.0 Amp. INTRODUCTION New Comfort reproduces the natural environment outdoors. It is not designed to create clean fresh air like the outdoors with its 6 stages of purification. -
Page 5: Installation
5 Photo Labs & Salons Day Care Centers Chemical Odors Bowling Alleys & Parlors INSTALLATION 1. Remove unit from shipping carton. 2. Remove all protective materials. 3. Read Owner’s Manual thoroughly prior to installation. 4. Fully insert cord into the power cord receptacle on the back of the unit. 5. - Page 6 6 Determine placement location and plug unit into 120-volt outlet. PLACEMENT In order to maximize the purification function, the unit should be placed as high as possible. Alternately, placing something under the unit bottom, ensuring the front grill is tilted upward will better oxidize and purify the floating bacteria and smog pollutants.
-
Page 7: Settings And Adjustments
7 SETTINGS AND ADJUSTMENTS 1. Control of the Unit When looking at the front of the unit, the controls for UV, Ionization, Fan Speed are located on the right. The knob on the left controls the Ozone. This allows using the New Comfort as a standard air purifier (no Ozone but pulling air through the 5 stages of... -
Page 8: Maintenance
8 MAINTENANCE Periodic maintenance is required to ensure that the New Comfort operates properly. A severely polluted environment can foul an air purifier plate in as little as four weeks or as long as a year. Shown here are basic maintenance procedures that should be carried out to keep your unit running at top performance. -
Page 9: Replacing The Fuse
9 REPLACING THE FUSE A fuse holder is located on the back of the unit next to the power cord. To replace or check the fuse: Remove the fuse holder by pressing on the clip and pulling straight out. If the fuse is blown: ... - Page 10 Check the air purifier plate(s) for serviceability. If they are cracked or broken, the plate(s) will require replacement. Ensure maintenance procedures required for the New Comfort air purifier plate have been performed (i.e. washing the Ozone plates). Aside from steps above, do not attempt to disassemble the unit due to the Limited Warranty of the product.
-
Page 11: Warranty Information
New Comfort dealer you purchased the unit from for further assistance. The New Comfort air purifier comes with a 3-year Factory Warranty that covers the entire unit (except for filters and ozone plates which may need replacing as they get dirty).
