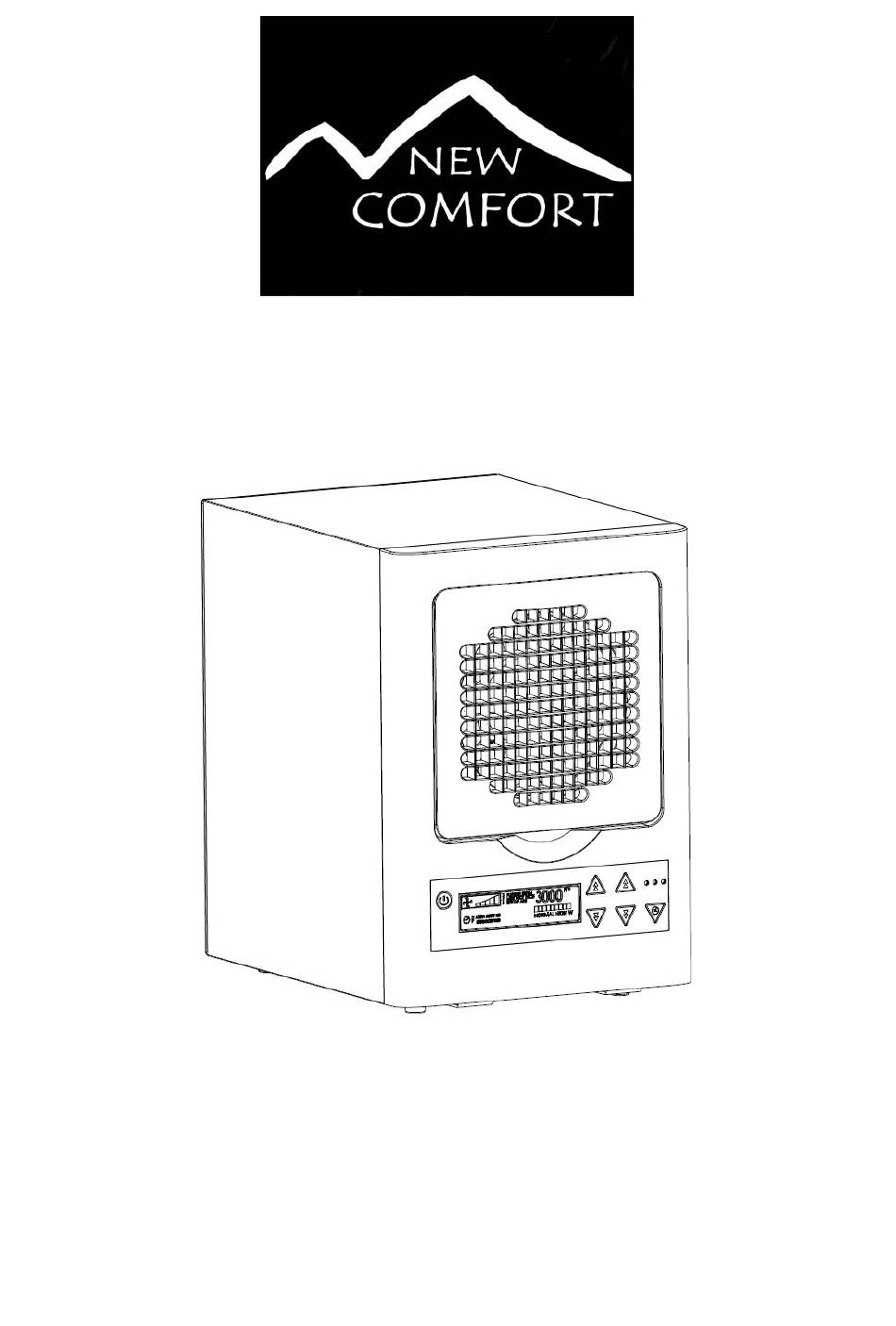

- Page 1 6 Stage AIR CLEANER BH3000 / CH3000 INSTRUCTION MANUAL CAUTION: Read manual carefully before use and for proper installation and operation.
-
Page 2: Table Of Contents
CONTENTS Specifications ...................... 3 Features ......................3 Introduction ......................4 Applications ......................5 Installation ......................5 Back Cover & Filter Removal ................5 Placing the Unit ....................6 Settings and Adjustments ................... 8 Maintenance ...................... 11 Replacing the Fuse ................... 12 Troubleshooting .................... -
Page 3: Specifications
1. SPECIFICATIONS Model: CH3000 / BH3000 Rated Voltage: USA-AC 120V/60Hz, Europe 230V/50Hz Power Consumption: Fan Speed (non-grade): 1500-3000 RPM Air Volume: Max 106 CFM(3 m /min) Ion Output ≥5 x 10 cm3 (or≥2.5 x 10 /cm3) UV Spectrum: ≥20ìw/cm (at 10cm-distance), 1PC... -
Page 4: Introduction
To reduce the risk of electric shock, this equipment has a grounding type plug that has a third (grounding) pin. This plug will only fit into a grounding type power outlet. If the plug does not fit into the outlet, contact qualified personnel to install the proper outlet. -
Page 5: Installation
Smoking Areas • Production Areas • Basements • Casinos & Large Meeting Halls • • Veterinary Hospital Barns, Kennels & Stables • • Photo Labs & Salons Day Care Centers • Odors • Bowling Alleys & Parlors • INSTALLATION 1. Remove unit from shipping carton. 2. - Page 6 UV bulb during use. Do not look directly at UV light while it is running. New Comfort has designed the unit to make staring at the UV bulb very difficult and if the filter is removed while the unit is running the unit will...
- Page 7 Notes: For maximum control, the unit should be placed where easy access to the • control panel is possible. The rear of the unit should always have at least six inches of open area to • allow unrestricted airflow. Be sure power cord and unit is not accessible to small children to prevent •...
-
Page 8: Settings And Adjustments
CAUTION! During Ozone mode this unit should never be placed where it can blow directly into the face of any person or pet. Do not use unit with outlet strip. Instead plug directly into 120v wall outlet. SETTINGS AND ADJUSTMENTS Buttons function and Operation Descprition Name Function and operation instruction... - Page 9 Optional Ozone is on or off when press Ozone button, note: OZONE PURIFY does not work when Ozone is off Air purifier work at max. settings on AWAY mode, the air purifier is off when timer returns to 0 AWAY mode First time: 0.5 Hour timing off；Second time: 1 hour timing off ；Third time: 2 hour timing off；4 time: back to manual mode...
- Page 10 same time. LCD display”AREA MUST BE UNOCCOPED” when ozone is Ozone function on. Note: Ozone has obvious effefct on killing germs and reminder removing odors, however, excess ozone can have health effects , therefore, it can be used in unoccuped space only Display NORMAL （1~5）...
- Page 11 5 speed Ozone Adjustment - to adjust ozone output, press Decrease 5-4-3-2-1-0, 0 means stop. Note: each time press OZONE, OZONE the ozone output decreases. Increase Decrease ozone output from 5-4-3-2-1-0, each time press OZONE OZONE, the Ozone output increases. 1.
-
Page 12: Maintenance
MAINTENANCE Periodic maintenance is required to ensure that the Air Purifier operates properly. A severely polluted environment can foul an air purifier plate in as little as four weeks or as long as a year. Shown here are basic maintenance procedures that should be carried out to keep your unit running at top performance. - Page 13 maintenance. If the fan squeaks, a drop of lightweight machine oil may be needed...
-
Page 14: Replacing The Fuse
on the fan shaft. REPLACING THE FUSE A fuse holder is located on the back of the unit next to the power cord. To replace or check the fuse: Remove the fuse holder by pressing on the clip and pulling straight out. •... -
Page 15: Troubleshooting
TROUBLESHOOTING GUIDE Indicators of Operation: (Operation of the Ozone & Power Indicator lamp.) Ozone button to be operated when • the room is unoccupied. Open the door and window when you return to the room after Ozone treatment. Turn the unit on and check that the •... - Page 16 Ensure maintenance procedures required for the New Comfort air • purifier plate have been performed (i.e. washing the Ozone plates). See page 6 for more details. Make sure the Ozone button is pushed to on. • • You will know the Ozone is on when a strong smell comes out of the air purifier.
-
Page 17: Warranty Information
New Comfort dealer you purchased the unit from for further assistance. The New Comfort air purifier comes with a 3-year Factory Warranty that covers the entire unit (except for filters, UV bulbs and ozone plates which may need replacing from time to time as they are used) against defect from normal use.
