Summary of Contents for New Comfort BL3000

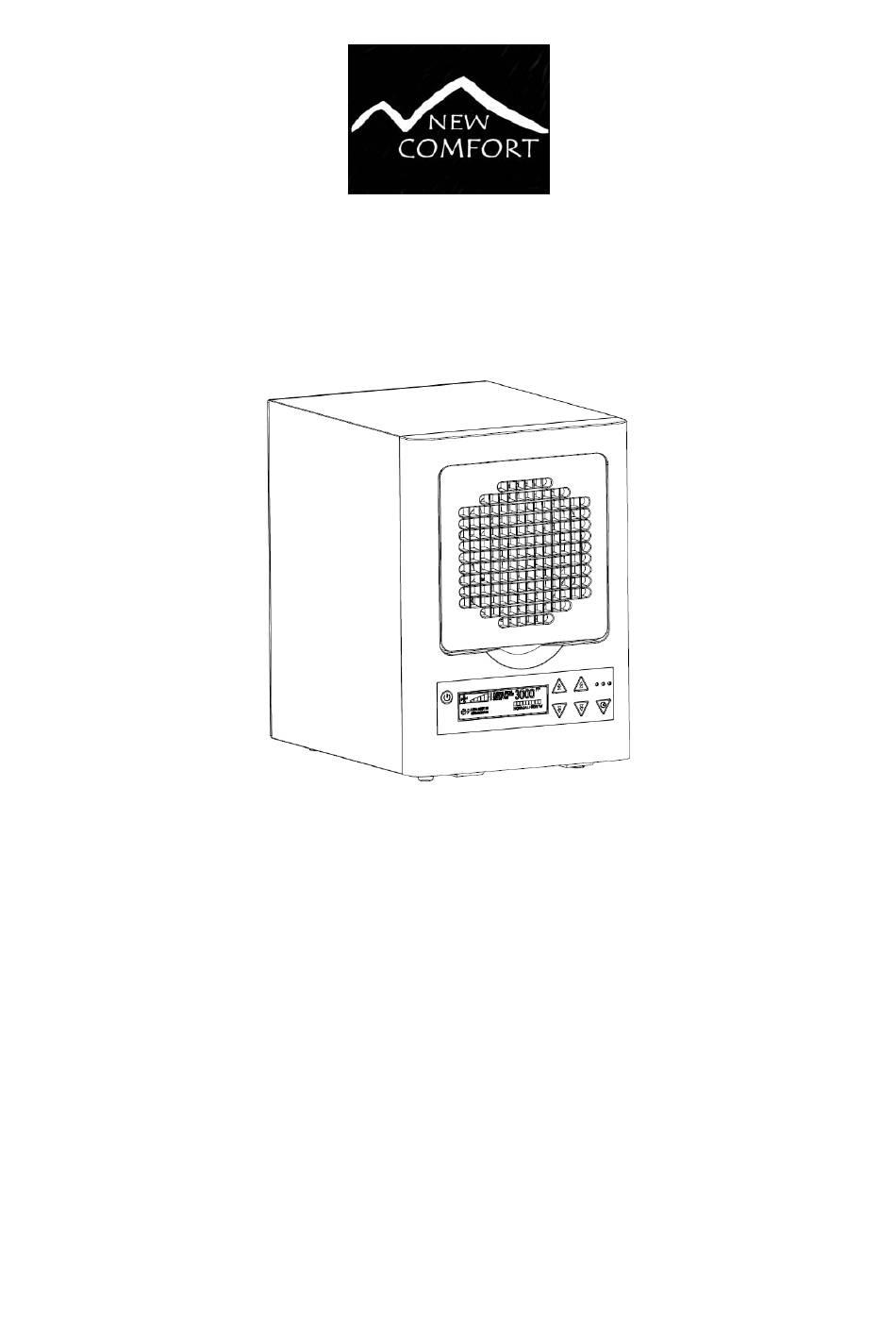

- Page 1 6 Stage AIR PURIFIER CH3000, BL3000 INSTRUCTION MANUAL CAUTION: Read manual carefully for proper installation and operation.
-
Page 2: Table Of Contents
2 CONTENTS Specifications ...................... 3 Features ......................3 Introduction ......................4 Applications ......................5 Installation ......................5 Back Cover & Filter Removal ................5 Placing the Unit ....................6 Settings and Adjustments ................... 8 Maintenance ...................... 11 Replacing the Fuse ................... 12 Troubleshooting .................... -
Page 3: Specifications
3 SPECIFICATIONS Model: CH3000, BL3000 Rated Voltage: USA-AC 120V/60Hz, Europe 230V/50Hz Power Consumption: Fan Speed (non-grade): 1500-3000 RPM Air Volume: Max 106 CFM(3 m /min) Ion Output ≥5 x 10 cm3 (or≥2.5 x 10 /cm3) UV Spectrum: ≥20ìw/cm (at 10cm-distance), 1PC... -
Page 4: Introduction
CAUTION! – Cut off the power when performing maintenance. If the fuse is blown and needs to be replaced, the current of fuse should no more than 1.0 Amp. INTRODUCTION CH3000,BL3000 air purifier reproduces the natural environment outdoors. It is... -
Page 5: Applications
5 APPLICATIONS Home, Office, Restaurant, Hotel Smoking Areas Production Areas Basements Casinos & Large Meeting Halls Veterinary Hospital Barns, Kennels & Stables Photo Labs & Salons Day Care Centers Chemical Odors ... -
Page 6: Placing The Unit
6 Remove HEPA filter and all other Step 3: filters by pulling out the white ribbon on the top. Insert the 2 Ozone plates found in Step 4: the small brown box. For maximum performance, Ozone plates may need to be washed in warm water. - Page 7 7 Notes: For maximum control, the unit should be placed where easy access to the control panel is possible. The rear of the unit should always have at least six inches of open area to allow unrestricted airflow. ...
-
Page 8: Settings And Adjustments
8 SETTINGS AND ADJUSTMENTS Buttons function and Operation Descprition Name Function and operation instruction Standby mode: Machine turns on when press Power Power button, air purifier start working;: Air purifier off when press the Power button LCD screen Show machine’s work status 5 speed fan to adjust fan speed, note: the coverage area change 200 sq. - Page 9 9 1. Press button 3 + 5 at the same time, LCD show 0:00 clock 2. Operate No 4 button within 2 seconds to adjust timer, timer increase 0.5Hr each time press this button Timer off 3. Timing function finish, enter autoamatic off mode, back to previous working status.
- Page 10 10 Remote control function and description Name Function and operation instruction Standby mode: Machine turns on when press Power Power button, air purifier start working;: Air purifier is off when press Power button Press one time: enter 1200 sq.ft SLEEP mode ...
-
Page 11: Maintenance
11 Air purifier works at maximum function on AWAY mode Press 1 time: shut off after 0.5H；Press 2 time, shut off AWAY mode after 1hr；Press 3 time, shut off after 2hr；Press 4 time, back to manual mode Press this button to on or off the OZONE Ozone on/off Note: PURIFY does not work if OZONE OFF, OZONE can only be used in unoccuped space only. -
Page 12: Replacing The Fuse
12 Fan Blade and Front Grill Cleaning: (Take off front/reinstall grill method.) To remove for cleaning: 1. As detail on the left shows, hold bottom of front grill and pull out. 2. When latch releases from front panel, lift front grill approximately 30 degrees. 3. -
Page 13: Troubleshooting
13 CAUTION! If the fuse holder cap is not installed correctly, the unit will not operate. TROUBLESHOOTING Indicators of Operation: (Operation of the Ozone & Power Indicator lamp.) Ozone button to be operated when the room is unoccupied. Open the door and window when you return to the room if Ozone operated for several hours. - Page 14 Check the air purifier plate(s) for serviceability. If they are cracked or broken, the plate(s) will require replacement. Ensure maintenance procedures required for the New Comfort air purifier plate have been performed (i.e. washing the Ozone plates). See page 6 for more details.
-
Page 15: Warranty Information
If you have contacted them and still have trouble you may then contact New Comfort by emailing service@newcomfortcleaners.com. The New Comfort air purifier comes with a 3-year Factory Warranty that covers the entire unit (except for filters and ozone plates which may need replacing as they get dirty).
