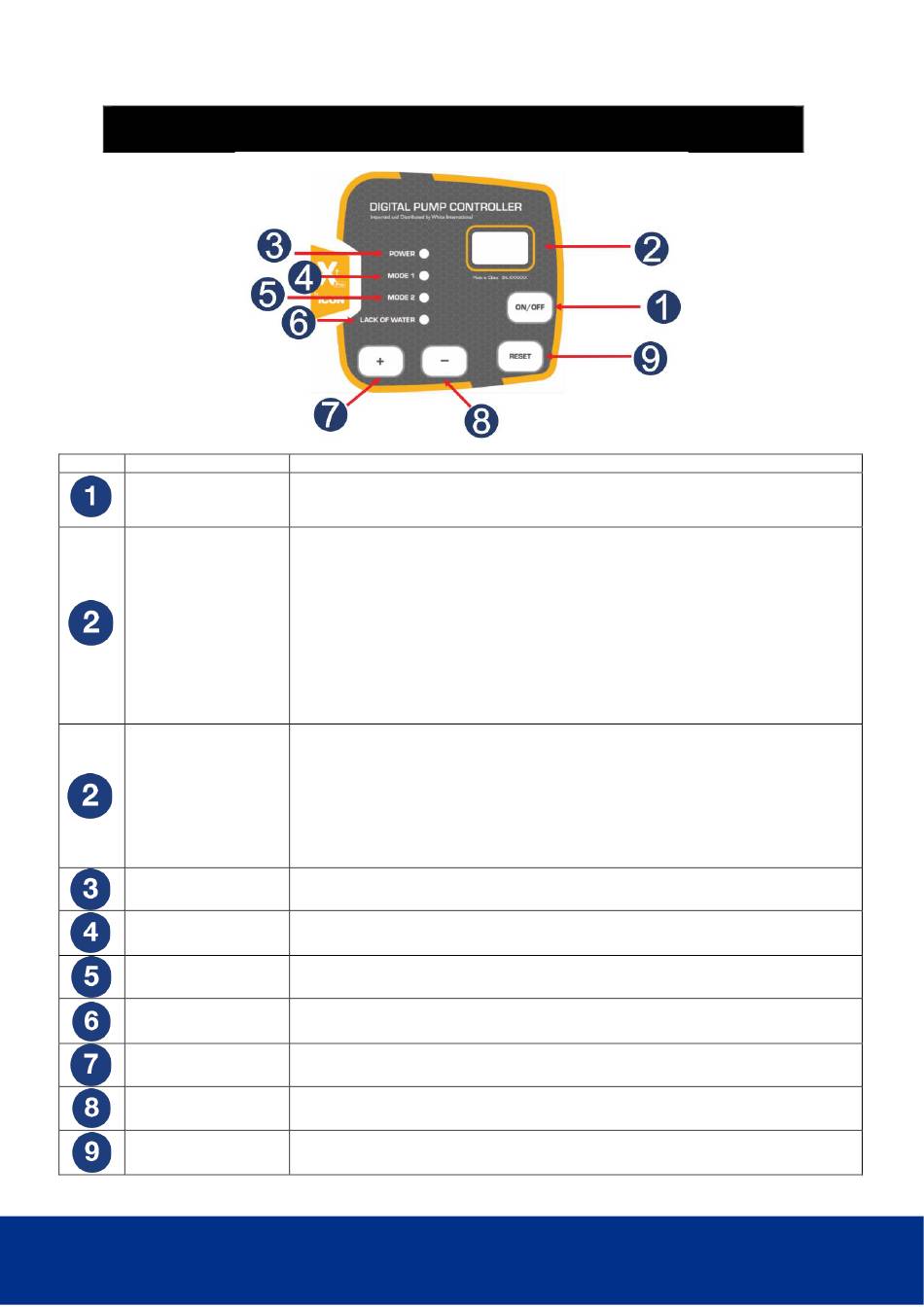

8. Display

No. Name
ON/OFF
DIGITAL DISPLAY
(RUNNING)
DIGITAL DISPLAY
(PROGRAMMING)
POWER
MODE 1
MODE 2
LACK OF WATER
PLUS
MINUS
RESET
Function
Short button press of ON/OFF turns the pump controller on
Press and HOLD ON/OFF button for 3 seconds to turn the controller off.
Press and Hold ON/OFF for 3 seconds to reset any error messages
PX.X = Real time pressure in Bar
CX.X = Real time current in amps
Symbol moving clockwise = Flow
(quick press of RESET button 9 to change modes)
- - - symbol stationary = No Flow
-P- displayed = Over pressure protection activated
-A- displayed = Frequent start protection active
OL flashing = Overload protection setting
UL flashing = Underload protection setting
PF = Low Flow protection setting
Pr = Max run time protection setting
PX.X = Start and Stop Pressure
CX.X = Current
F1 = Mode 1 (pressure controller) Default cut in 2.2 bar
F2 = Mode 2 (pressure switch)
OL = Overload protection setting
UL = Underload protection setting Default setting C0.0
PF = Low Flow protection setting
Pr = Maximum run time setting
GREEN LED POWER constant
Orange LED MODE 1 constant
Orange LED MODE 2 constant
RED LED flashing - pump short of water
RED LED constant - pump awaiting 24 hour restart
To increase value of parameter ( Located bottom left, marked +)
To decrease value of parameter ( Located bottom centre, marked -)
To set and save a parameter ( Located bottom right, marked RESET)
Default cut in 2.2 bar, Default cut out 9 bar
Default setting C0.0
Default setting 1 (Enabled)
Default setting 000 (Inactive)
– Power connected
– pump is in precise control mode
– pump is in precise control mode
