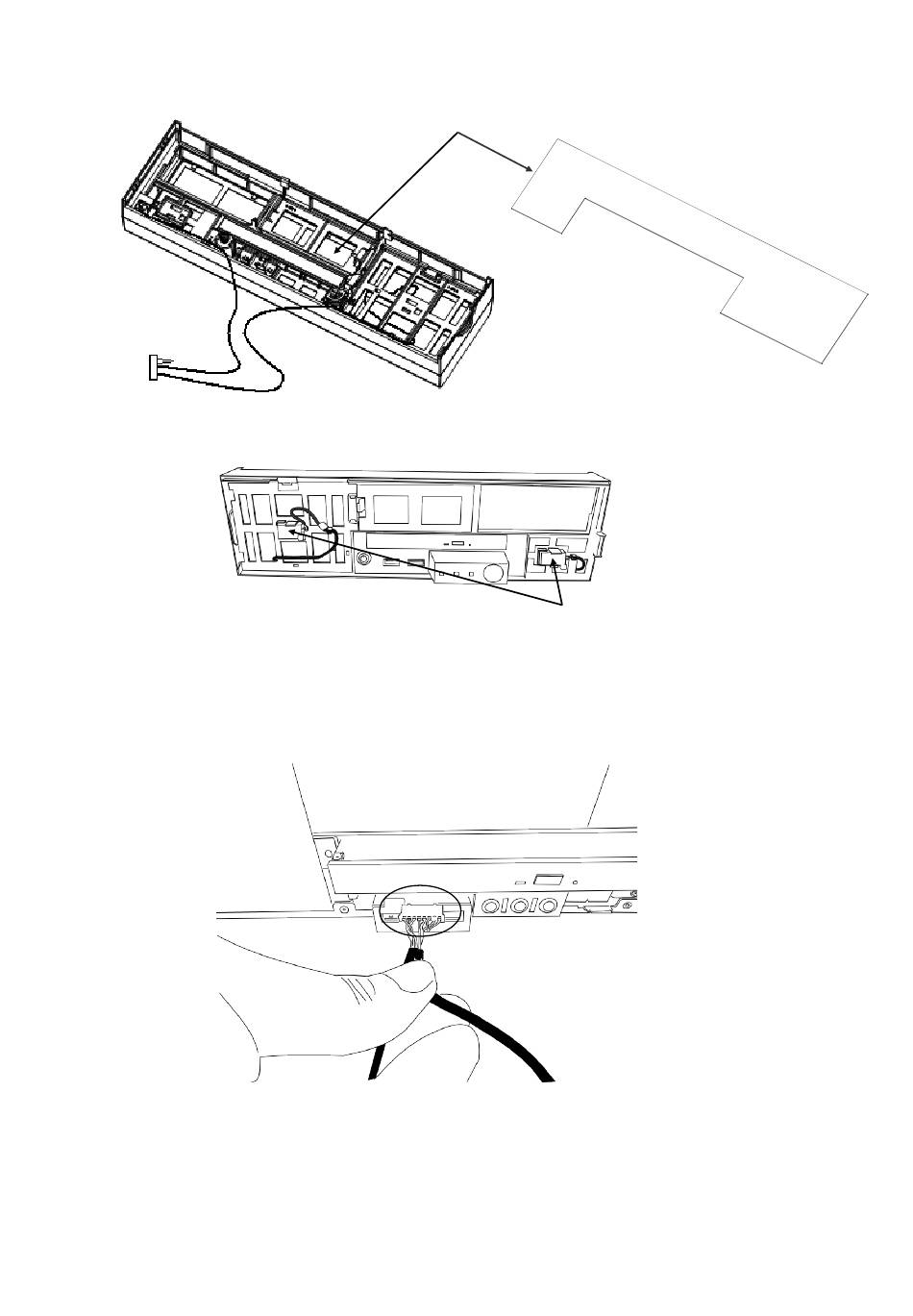

4. Make sure that filter is mounted on dust-proof bezel. See the figure below.
Dust-proof Filter
(Inside of the bezel)
Filter Replacement Sensor
(Inside view remove the bezel cover)
5. Pull in the sensor cable from the gap between the optical disk drive and front USB port
on the front of the server. See the figure below.
