Termination details

A set of Johnson Controls termination diagrams provides details for wiring inputs and outputs to the controllers.
See the figures in this section for the applicable termination diagrams.

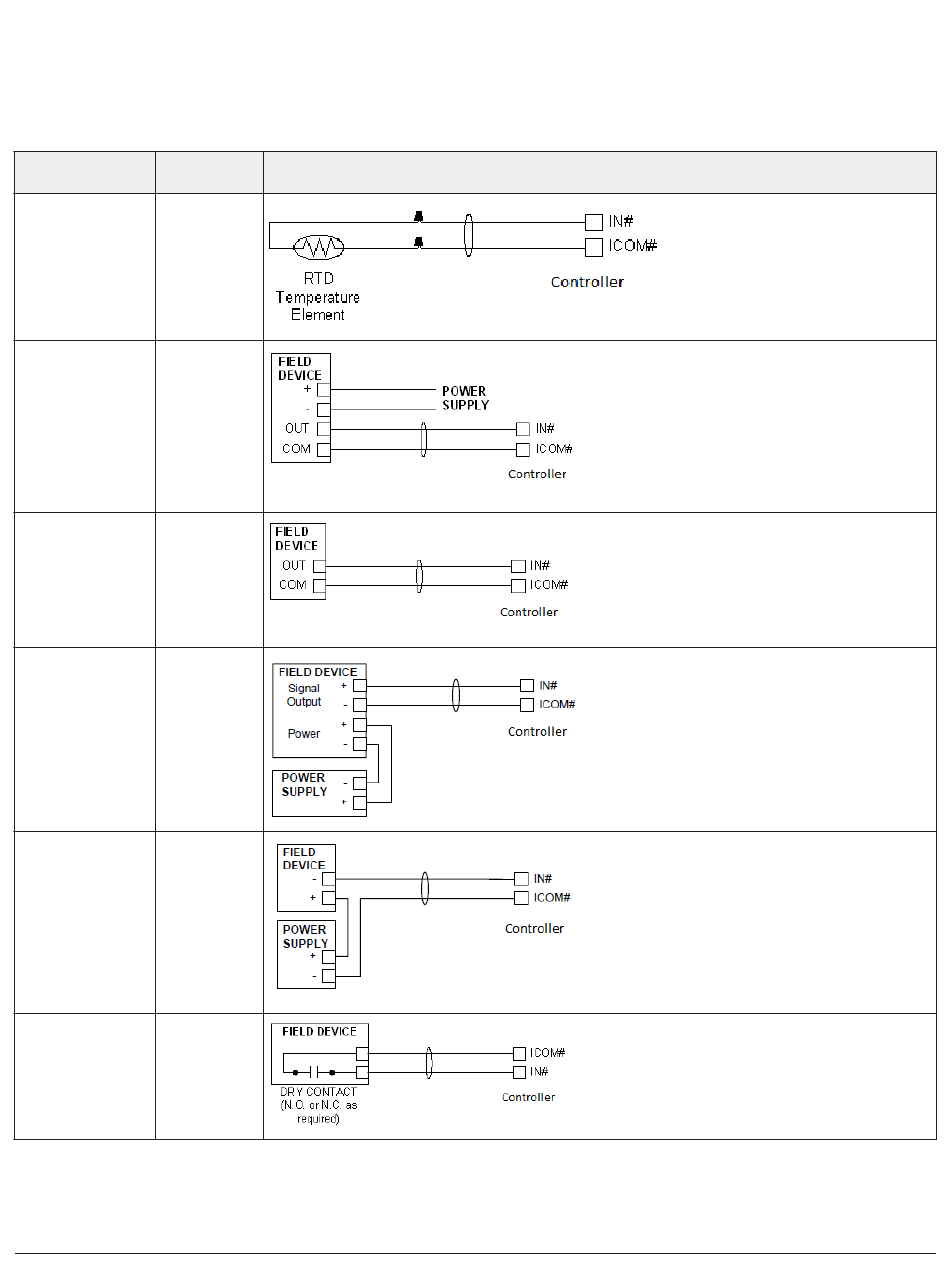

Table 5: Termination diagrams
Type of Field Type of Input/
Device Output
Temperature
UI
Sensor
Voltage Input -
UI
External Source
Voltage Input
UI
(Self-Powered)
Current Input -
External Source UI
(Isolated)
Current Input -
External Source (in UI
Loop)
Dry Contact
UI or BI
(Binary Input)
Termination Diagrams
