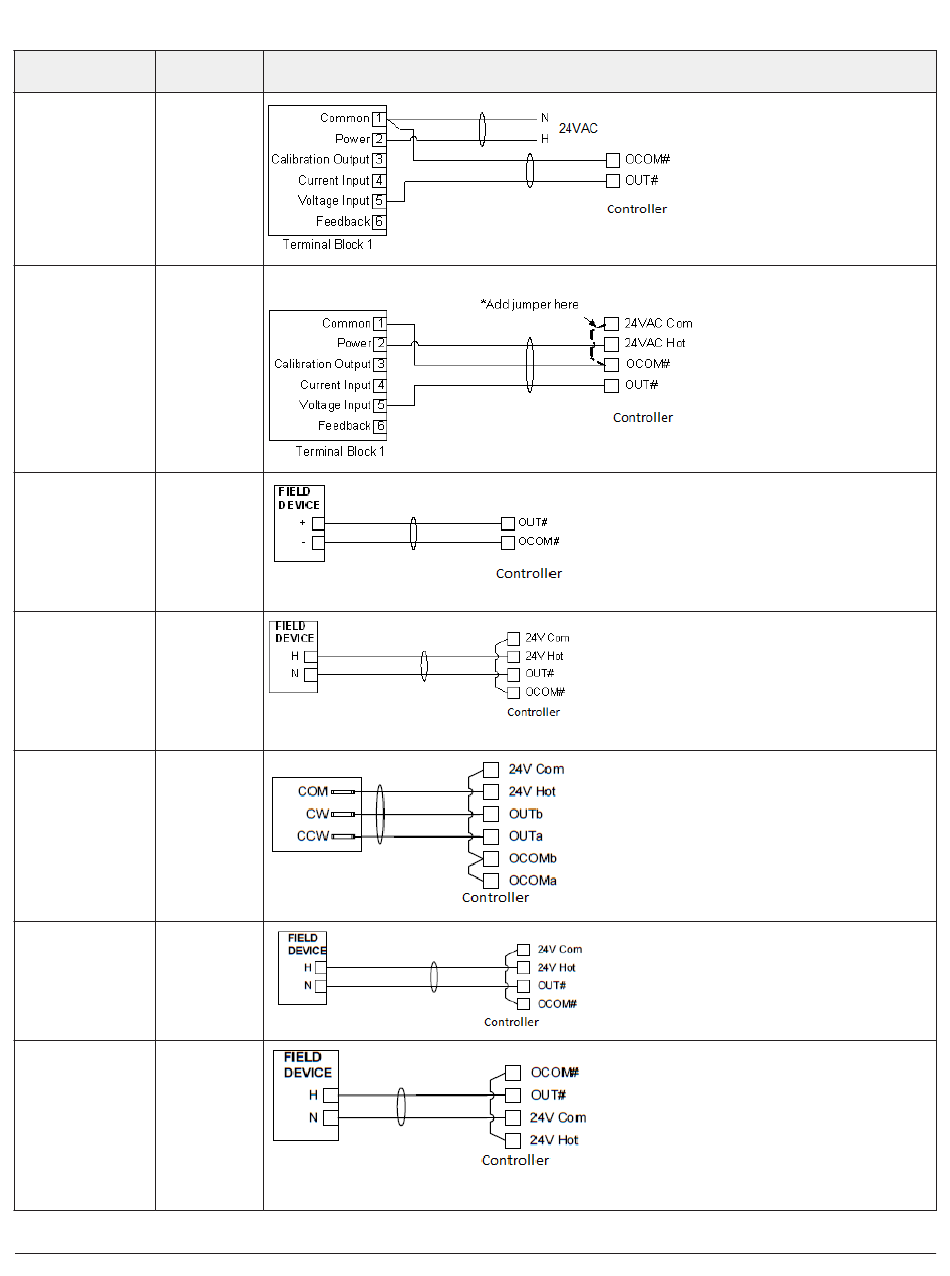

Table 5: Termination diagrams
Type of Field Type of Input/
Device Output
0–10 VDC Output
to Actuator CO
(External Source)
0–10 VDC Output
to Actuator CO
(Internal Source)
Current Output CO
24 VAC Triac
Output (Switch
CO
Low, External
Source)
Incremental
Control to
Actuator (Switch
BO
Low, Externally
Sourced)
(Triac Jumpers
where applicable)
24 VAC Binary
Output (Switch
Low, Externally
BO
Sourced)
(Triac Jumpers
where applicable)
24 VAC Binary
Output (Switch
High, Externally
BO
Sourced)
(Triac Jumpers
where applicable)
