Johnson Controls ATC1510 Installation Manual page 11

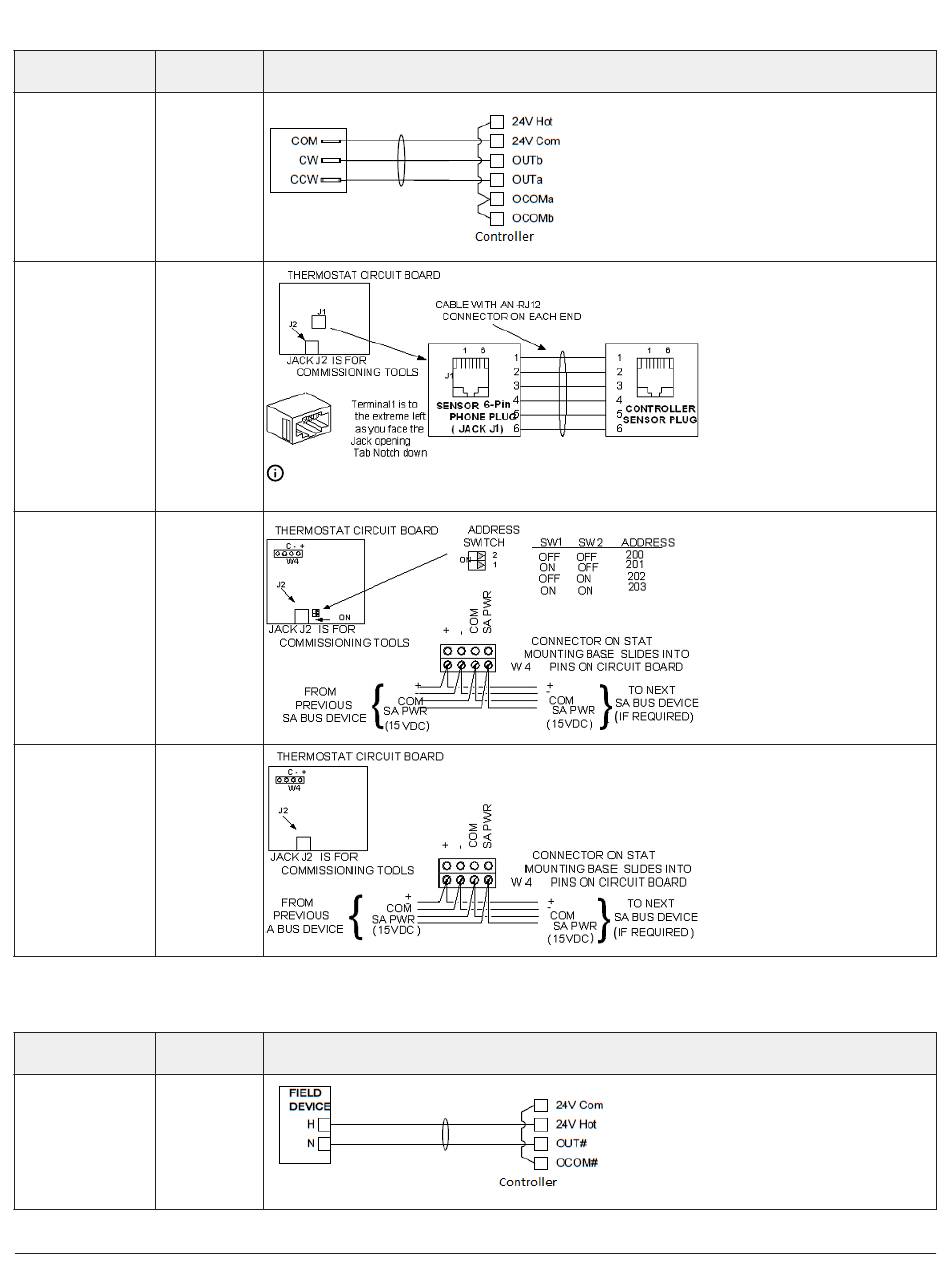

Table 5: Termination diagrams
Type of Field Type of Input/
Device Output
Incremental
Control to
Actuator (Switch
BO
High, Externally
Sourced)
(Triac Jumpers
where applicable)
Network Stat with
Phone Jack (Fixed SA Bus
Address = 199)
Network Stat
with Terminals SA Bus
Addressable
Network Stat with
Terminals (Fixed SA Bus
Address = 199)
The following table contains termination diagrams or terminology that is UNIQUE to specific controller
documents.
Type of Field Type of Input/
Device Output
Relay Output
(Switch Low,
RO
Externally
Sourced)
Termination Diagrams
Note: The bottom jack (J2) on the TE-700 and TE-6x00 Series Sensors is not
usable as a zone bus or an SAB connection.
Termination Diagrams
ATC1510 Advanced Terminal Unit Controller Installation Guide 11
