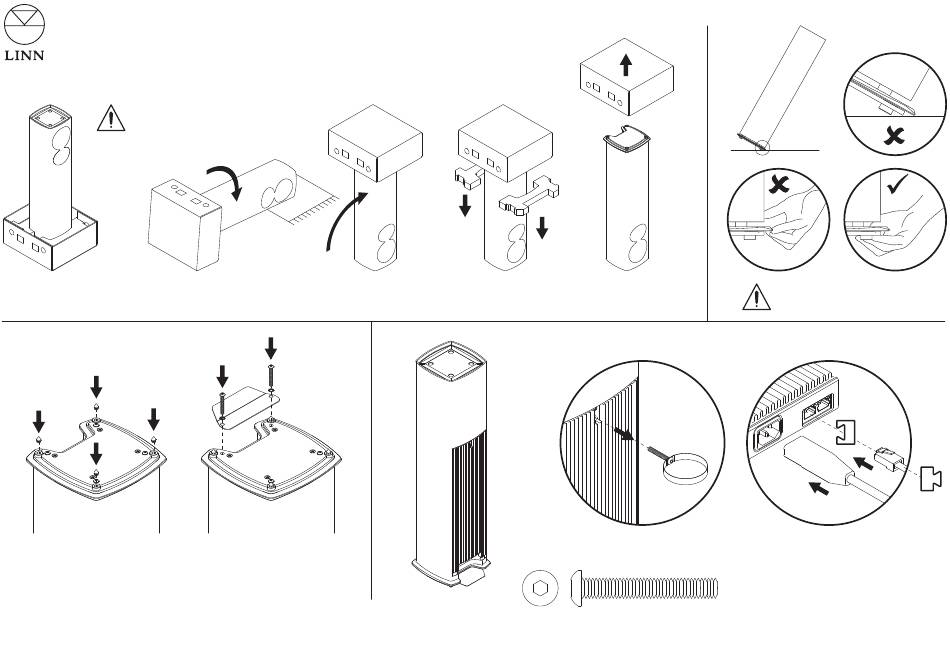

SERIES 5 QUICKSTART
PRODUCT SHOWN IS 520 SPEAKER.
DO NOT ATTEMPT TO LIFT SPEAKER ALONE.
ALWAYS LIFT WITH 2 PEOPLE.
SUPPORT SPEAKER AT BOTH ENDS
WHILST TILTING.
FOR ADDITIONAL STABILITY,
SPEAKER MUST BE FITTED
WITH ANTI-TILT BAR.
(520 SPEAKER ONLY)
REMOVE TRANSIT SCREW
M6 x 40 (YELLOW TAG)
4
PACK 1787
1/2
ALWAYS LIFT BY THE METAL BASE,
NOT BY THE GLASS PANEL.
CONSULT YOUR LINN SPECIALIST FOR
CONFIGURING THE LOUDSPEAKERS
THROUGH KONFIG.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Linn 5 Series
Summary of Contents for Linn 5 Series
- Page 1 SUPPORT SPEAKER AT BOTH ENDS WHILST TILTING. ALWAYS LIFT BY THE METAL BASE, NOT BY THE GLASS PANEL. REMOVE TRANSIT SCREW CONSULT YOUR LINN SPECIALIST FOR FOR ADDITIONAL STABILITY, M6 x 40 (YELLOW TAG) CONFIGURING THE LOUDSPEAKERS SPEAKER MUST BE FITTED THROUGH KONFIG.
- Page 2 PACK 1787 SERIES 5 QUICKSTART PRODUCT SHOWN IS 520 SPEAKER. PLEASE ALSO REFER TO www.linn.co.uk/guide HOLD THE FABRIC IN PLACE AROUND THE BOTTOM OF THE ARRAY TRIM WHILE PULLING THE COVER OVER THE SPEAKER REMOVING THE COVER HOLD THE FABRIC IN PLACE...
