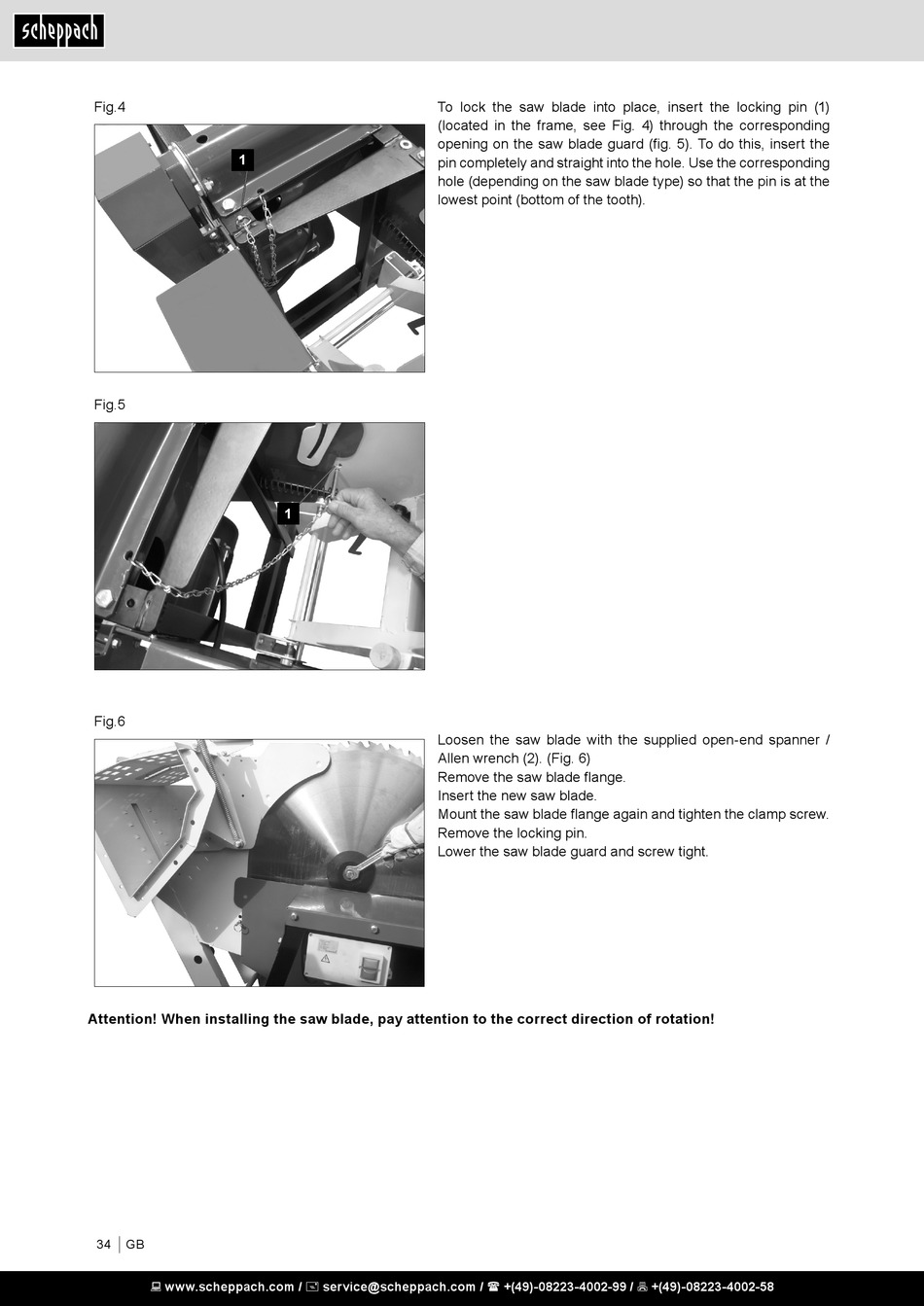

Scheppach kw 7.0 Translation Of The Original Instruction Manual page 34

Fig.4
1
Fig.5
Fig.6
Attention! When installing the saw blade, pay attention to the correct direction of rotation!
34 GB
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
To lock the saw blade into place, insert the locking pin (1)
(located in the frame, see Fig. 4) through the corresponding
opening on the saw blade guard (fig. 5). To do this, insert the
pin completely and straight into the hole. Use the corresponding
hole (depending on the saw blade type) so that the pin is at the
lowest point (bottom of the tooth).
1
Loosen the saw blade with the supplied open-end spanner /
Allen wrench (2). (Fig. 6)
Remove the saw blade flange.
Insert the new saw blade.
Mount the saw blade flange again and tighten the clamp screw.
Remove the locking pin.
Lower the saw blade guard and screw tight.
