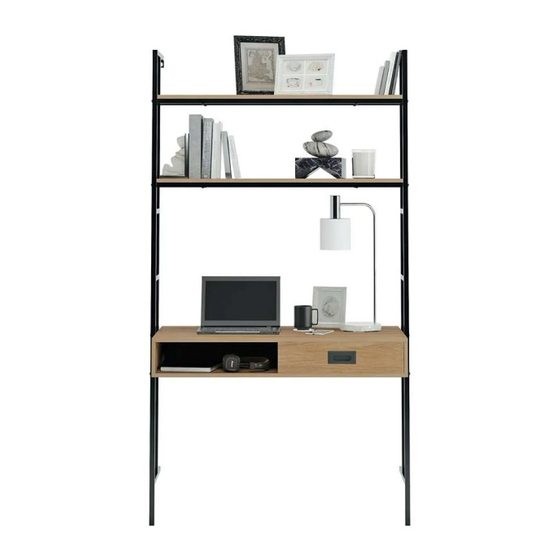

- Page 1 Sit and surf. Hythe Wall Mounted Desk NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. Model 5426439 PLEASE READ AND KEEP FOR FUTURE REFERENCE.
- Page 2 Table of Contents Assembly Tools Required Part Identifi cation No. 2 Phillips Screwdriver Tip Shown Actual Size Hardware Identifi cation Assembly Steps 5-18 Straight Edge Screwdriver Français 19-21 Español 22-24 Electric drill with 5/16" bit (ONLY in indicated step) Safety 25-26 Warranty Page 2...
- Page 3 Now you know Part Identifi cation our ABCs. å While not all parts are labeled, some of the parts will have a label or an inked letter on the edge to help distinguish similar parts from each other. Use this part identifi cation to help identify similar parts. DESK TOP (1) BACK (1) DOOR (1)
- Page 4 Hardware Identifi cation å Screws are shown actual size. You may receive extra hardware with your unit. WOOD DOWEL - 12 HIDDEN CAM - 6 CAM SCREW - 6 UPPER GUIDE - 2 PULL - 1 LOWER GUIDE - 2 APPLIQUE CARD - 1 L-WRENCH - 1 WALL ANCHOR - 2...
- Page 5 Hardware Usage Guide HOW TO USE A HIDDEN CAM & CAM SCREW OR CAM DOWEL NOTE: Various CAM SCREWS or a CAM DOWEL may be used. Turn the CAM SCREW or gently tap the CAM DOWEL until the shoulder is against the surface of the part.
- Page 6 Step 1 Assemble your unit on a carpeted fl oor or on the empty å carton to avoid scratching your unit or the fl oor. Push six HIDDEN CAMS (1) into the ENDS (B and C) and å UPRIGHT (D). Turn six CAM SCREWS (2) into the DESK TOP (A).
- Page 7 Step 2 Insert six WOOD DOWELS (3) into the DESK TOP (A). å Fasten the ENDS (B and C) and UPRIGHT (D) to the å DESK TOP (A). Tighten six HIDDEN CAMS. NOTE: Be sure the WOOD DOWELS in the DESK TOP å...
- Page 8 Step 3 Slide the BACK (E) into the grooves of the ENDS (B and C) å and DESK TOP (A). F i n i s h e u r f a Page 8...
- Page 9 Step 4 Insert six WOOD DOWELS (3) into the ENDS (B and C) å and UPRIGHT (D). Fasten the BOTTOM (F) to the ENDS (B and C) and å UPRIGHT (D). Use six 1-9/16" PAN HEAD SCREWS (11). NOTE: Be sure the WOOD DOWELS in the ENDS and å...
- Page 10 Step 5 Fasten two BRACES (G) to the BOTTOM (F). Tighten four å 1-3/16" HEX HEAD SCREWS (12) using the L-WRENCH (9). 1-3/16" HEX HEAD SCREW (4 used in this step) Page 10...
- Page 11 Step 6 Fasten two BRACES (G) to a SHELF (H). Tighten four å 1-3/16" HEX HEAD SCREWS (12) using the L-WRENCH (9). Repeat this step. å 1-3/16" HEX HEAD SCREW (8 used in this step) Page 11...
- Page 12 Step 7 Insert the tab of the UPPER FRAME (K) into the LOWER å FRAME (L). Fasten the UPPER FRAME (K) to the LOWER FRAME (L). Tighten å four 1/2" HEX HEAD SCREWS (13) using the L-WRENCH (9). Repeat this step. å...
- Page 13 Step 8 Fasten the BRACES (G) on the SHELVES (H) to an UPPER å FRAME (K). Tighten four 1-3/16" HEX HEAD SCREWS (12) using the L-WRENCH (9). Fasten the BRACES (G) on the BOTTOM (F) to the LOWER å FRAME (L). Tighten two 1-3/16" HEX HEAD SCREWS (12) using the L-WRENCH (9).
- Page 14 Step 9 Fasten remaining END FRAMES (K and L) to the BRACES (G) å on the BOTTOM (F) and SHELVES (H). Tighten six 1-3/16" HEX HEAD SCREWS (12) using the L-WRENCH (9). Fasten the LOWER FRAME (L) to the DESK TOP (A). Use two å...
- Page 15 Step 10 -Carefully stand your unit upright against the wall in its fi nal location. Strike a mark through the center of the hole in å the UPPER FRAMES (K). Lay your unit down. -Drill a 5/16" hole on the marks. å...
- Page 16 Step 11 Fasten the LOWER GLIDES (5) to one long edge of the DOOR (J). Use four 1/2" FLAT HEAD SCREWS (14). å Fasten the UPPER GLIDES (4) to the opposite long edge of the DOOR (J). Use four 1/2" FLAT HEAD SCREWS (14). å...
- Page 17 Step 12 1. The UPPER GUIDE (4) tabs should be down before starting this step. å 2. Insert the LOWER GUIDES (5) in the DOOR (J) at an angle into the groove in the BOTTOM (F). Then, tilt the DOOR å...
- Page 18 Step 13 Peel APPLIQUES from the APPLIQUE CARD (7) and stick them onto each visible HIDDEN CAM. å NOTE: Please read the back pages of the instruction booklet for important safety information. å This completes assembly. Clean with a damp cloth. Wipe dry. å...
- Page 19 WARNING Please use your furniture correctly and safely. Improper use can cause safety hazards, or damage to your furniture or household items. Carefully read the following chart. Look out for: What can happen: How to avoid the problem: • Overloaded shelves. •...
