Entertainment Credenza
Orchard Hills Collection | 401346
Need help? Visit Sauder.com to view video assembly tips or chat with a live rep.
Prefer the phone? Call 1-800-523-3987.
Share your journey!
Entertaining what
entertains you.
NOTE: THIS INSTRUCTION
BOOKLET CONTAINS IMPORTANT
SAFETY INFORMATION.
PLEASE READ AND KEEP FOR
FUTURE REFERENCE.
English pg 1-24
Français pg 25-28
Español pg 29-32
Lot # 364443
09/24/14
Purchased: __________________
Be sure to give us a ring before
making any returns. 1-800-523-3987

Advertisement

loading
Need help?

Need help?

Do you have a question about the Orchard Hills 401346 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sauder Orchard Hills 401346

Summary of Contents for Sauder Orchard Hills 401346

  • Page 1 Orchard Hills Collection | 401346 NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. Need help? Visit Sauder.com to view video assembly tips or chat with a live rep. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Prefer the phone? Call 1-800-523-3987.

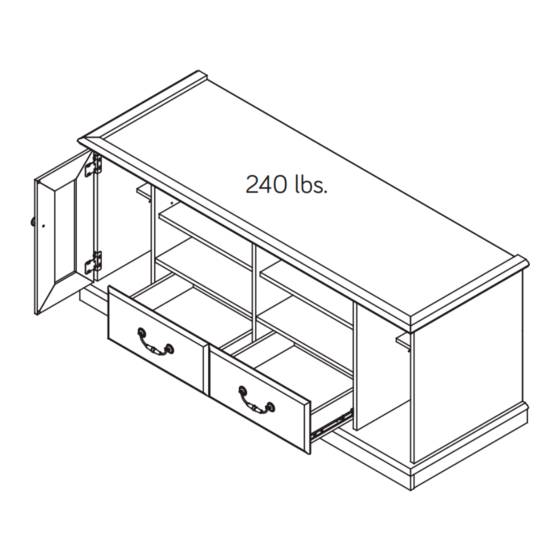

  • Page 2 • Check the size and weight of your TV. Compare it to the diagram below – before you begin assembly! • This Sauder unit is designed for use with televisions weighing less than 240 pounds. Never use with a TV that weighs more.

  • Page 3: Part Identification

    LEFT DOOR (1) D107 RIGHT DRAWER SIDE (2) TOP (1) DRAWER FRONT (2) D108 LEFT DRAWER SIDE (2) SHELF (2) FRONT MOLDING (1) D962 DRAWER BOTTOM (2) LARGE ADJUSTABLE SHELF (2) RIGHT MOLDING (1) D107 D108 D962 www.sauder.com/services 401346 Page 3...

  • Page 4: Hardware Identification

    -Refer to instruction book for complete safety information. Note: This is a permanent label. Do not try to remove. Surface will be damaged. 269336 (Refer to Step 15 for proper location and application) Page 4 401346 www.sauder.com/services...
  • Page 5 GOLD 9/16" LARGE HEAD SCREW - 26 BLACK 9/16" WAFER HEAD SCREW - 2 XX GOLD 5/16" FLAT HEAD SCREW - 16 NAIL - 46 30S BLACK 1-9/16" FLAT HEAD SCREW - 8 BLACK 1-1/8" PAN HEAD SCREW - 2 www.sauder.com/services 401346 Page 5...
  • Page 6 Look for this icon. It means a Step 1 video assembly tip is available at www.sauder.com/services/tips Assemble your unit on a carpeted fl oor or on the å empty carton to avoid scratching your unit or the fl oor. Push sixteen HIDDEN CAMS (1F) into the ENDS (A å...
  • Page 7 SCREW into this hole. Push the release lever in and pull the SLIDE from the RAIL. Finished edge Open end Finished edge Open end Finished edge GOLD 5/16" FLAT HEAD SCREW (8 used in this step) Open end www.sauder.com/services 401346 Page 7...
  • Page 8 Step 3 Tap the MOLDING CONNECTORS (LL) into the notches in å the MOLDINGS (S, T, and U). Use your hammer to tap the MOLDING CONNECTORS (LL) into the notches in the MOLDINGS. Flat end Flat end Page 8 401346 www.sauder.com/services...
  • Page 9 Step 4 Fasten the TOP (F) to the MOLDINGS (S, T, and U). Use å nine SILVER 1-1/8" FLAT HEAD SCREWS (SS). SILVER 1-1/8" FLAT HEAD SCREW (9 used in this step) Unfi nished edge www.sauder.com/services 401346 Page 9...
  • Page 10 Tighten Risk of damage or Arrow injury. HIDDEN CAMS must be completely Arrow Maximum tightened. HIDDEN 210 degrees CAMS that are not completely tightened may loosen, and parts may separate. To Minimum completely tighten: 190 degrees Page 10 401346 www.sauder.com/services...
  • Page 11 Fasten the END (B) to the TOP (F). Tighten two å HIDDEN CAMS. Finished edge i t h f a c S u r D E N H I D Maximum Arrow 210 degrees Minimum 190 degrees www.sauder.com/services 401346 Page 11...
  • Page 12 Step 7 Insert two METAL PINS (OO) into the edge of the å CENTER UPRIGHT (E), then push them into the holes in the TOP (F). Finished edge Page 12 401346 www.sauder.com/services...
  • Page 13 Fasten the UPRIGHTS (C and D) to the TOP (F) and å SHELVES (G). Tighten eight HIDDEN CAMS. Finished edge r f a w i t r f a w i t Maximum Arrow 210 degrees Minimum 190 degrees www.sauder.com/services 401346 Page 13...
  • Page 14 Step 9 Fasten the BOTTOM (J2) to the ENDS (A and B) and å UPRIGHTS (C, D, and E). Use ten BLACK 1-7/8" FLAT HEAD SCREWS (RR). BLACK 1-7/8" FLAT HEAD SCREW (10 used in this step) Page 14 401346 www.sauder.com/services...
  • Page 15 NOTE: Perforations have been provided for access å through the BACK. Carefully cut out the holes needed. NAIL (46 used in this step) These holes must line up over the UPRIGHTS (C, D, and E) and SHELVES (G). www.sauder.com/services 401346 Page 15...
  • Page 16 CORNER CAPS (AAA) to the CORNER BRACKETS (BBB) with two BLACK 1-1/ 8" PAN HEAD SCREWS (ZZ). GOLD 9/16" LARGE HEAD SCREW (4 used for the CORNER BRACKETS) BLACK 1-1/8" PAN HEAD SCREW (2 used for the CORNER CAPS) Page 16 401346 www.sauder.com/services...
  • Page 17 FRONT SKIRT (V). Use six GOLD 9/16" LARGE HEAD SCREWS (VV). Push two CENTER FEET (Z) into the holes in the BOTTOM (J2). å BLACK 9/16" WAFER HEAD SCREW (2 used for the SIDE FEET) GOLD 9/16" LARGE HEAD SCREW (6 used for the ANGLE BRACKETS) www.sauder.com/services 401346 Page 17...
  • Page 18 Step 13 Fasten two HINGES (FF) to each DOOR (L and M). Use å eight GOLD 9/16" LARGE HEAD SCREWS (VV). GOLD 9/16" LARGE HEAD SCREW (8 used in this step) Page 18 401346 www.sauder.com/services...
  • Page 19 Fasten a BACKPLATE (HH) and KNOB (II) to each DOOR. å Use two BLACK 1-1/8" MACHINE SCREWS (TT). GOLD 9/16" LARGE HEAD SCREW (8 used for the HINGES) BLACK 1-1/8" MACHINE SCREW (2 used for the PULLS and BACKPLATES) www.sauder.com/services 401346 Page 19...
  • Page 20 - The base of the TV must be able to sit completely on this shelf. Refer to instruction book for complete safety information. Note: This is a permanent label. Do not try to remove. Surface will be damaged. Page 20 401346 www.sauder.com/services...
  • Page 21 SIDES (D107 and D108). Use four BLACK 1-9/16" FLAT HEAD SCREWS (30S). NOTE: Be sure the DRAWER BOTTOM (D962) inserts into å the groove of the DRAWER BACK (D65). Repeat this step for the other drawer. å www.sauder.com/services 401346 Page 21...
  • Page 22 Screw head - turn CAM to line up holes in the SLIDES with holes in DRAWER SIDES D108 Open end D107 SILVER 5/8" MACHINE SCREW (4 used for the HANDLES and HANDLE MOUNTS) GOLD 5/16" FLAT HEAD SCREW (8 used for the SLIDES) Page 22 401346 www.sauder.com/services...
  • Page 23 Set the ADJUSTABLE SHELVES (H and I) onto the METAL PINS. 15 lbs. 240 lbs. 25 lbs. 35 lbs. 40 lbs. 25 lbs. 15 lbs. 20 lbs. 35 lbs. 20 lbs. (16 used) 40 lbs. www.sauder.com/services 401346 Page 23...
  • Page 24 The higher the screw in the oblong hole, the higher your drawer front will be. The lower the screw, the lower the drawer front. Page 24 401346 www.sauder.com/services...

  • Page 25: Liste De Pièces

    EXTRÉMITÉ DROITE ..........1 CONSOLE À ÉQUERRE .........3 pour future référence. EXTRÉMITÉ GAUCHE ..........1 EXCENTRIQUE ESCAMOTABLE ....16 Pour contacter Sauder MONTANT DROIT ............1 CHEVILLE D'EXCENTRIQUE ......16 en ce qui concerne cet élément, faire référence MONTANT GAUCHE ..........1 CHARNIÈRE ..............4...
  • Page 26 Fixer le DESSUS (F) aux MOULURES (S, T et U). Utiliser neuf VIS ÉTAPE 9 ARGENTÉES TÊTE PLATE 28 mm (SS). Fixer le DESSOUS (J2) aux EXTRÉMITÉS (A et B) et aux MONTANTS (C, D et E). Utiliser dix VIS NOIRES TÊTE PLATE 48 mm (RR). Page 26 401346 www.sauder.com/services...
  • Page 27 CONSOLES DE COIN (BBB) en utilisant deux VIS NOIRES Fixer une FERRURE (HH) et un BOUTON (II) à chaque PORTE. TÊTE GOUTTE DE SUIF 28 mm (ZZ). Utiliser deux VIS NOIRES À MÉTAUX 28 mm (TT). www.sauder.com/services 401346 Page 27...
  • Page 28 REMARQUE : La tête de vis dans l’EXCENTRIQUE doit être visible à travers le trou fendu dans la COULISSE. Fixer deux MONTURES DE POIGNÉE (JJ) et une POIGNÉE (KK) à chaque DEVANT DE TIROIR (N). Utiliser quatre VIS ARGENTÉES À MÉTAUX 16 mm (UU). Page 28 401346 www.sauder.com/services...

  • Page 29: Lista De Partes

    EXTREMO IZQUIERDO ..........1 POMO ..................2 pour future référence. PARAL DERECHO ............1 MONTAJE DE MANILLA ........4 Pour contacter Sauder PARAL IZQUIERDO .............1 MANILLA ................2 en ce qui concerne cet PARAL CENTRAL ............1 CONECTOR DE MOLDURA ........2 élément, faire référence PANEL SUPERIOR ............1...
  • Page 30 Utilice nuevo TORNILLOS PLATEADOS DE CABEZA PERDIDA Fije el FONDO (J2) a los EXTREMOS (A y B) y a los de 28 mm (SS). PARALES (C, D y E). Utilice diez TORNILLOS NEGROS DE CABEZA PERDIDA de 48 mm (RR). Page 30 401346 www.sauder.com/services...
  • Page 31 MÉNSULAS DE ESQUINA (BBB) con dos TORNILLOS Fije una PLACA DE TIRADOR (HH) y un POMO (II) a cada PUERTA. Utilice dos TORNILLOS NEGROS PARA METAL de 28 mm (TT). NEGROS DE CABEZA REDONDA de 28 mm (ZZ). www.sauder.com/services 401346 Page 31...
  • Page 32 Seque con un paño. través del agujero alargado de la CORREDERA. Fije dos MONTAJES DE MANILLA (JJ) y una MANILLA (KK) a cada CARA DE CAJÓN (N). Utilice cuatro TORNILLOS PLATEADOS DE METAL DE 16 mm(UU). Page 32 401346 www.sauder.com/services...
  • Page 33 équipé. • Blessure physique. Le mobilier peut être très lourd. • Ne pas pousser le mobilier, surtout sur la moquette. Se faire aider par une autre personne pour soulever l’élément et le mettre en place. www.sauder.com/services 401346 Page 33...
  • Page 34 • Lesión física. El mobiliario puede ser • No empuje la unidad, especialmente muy pesado. sobre un piso alfombrado. Pide la ayuda de otra persona en levantar la unidad y colocarla en lugar. Page 34 401346 www.sauder.com/services...

  • Page 35: Year Limited Warranty

    GARANTIE LIMITÉE DE 5 ANS 1. Sauder Woodworking Co. (Sauder®) off re une couverture de garantie limitée à l’ a cheteur 4. La présente garantie ne s’ a pplique qu’ a ux défauts garantis qui se produisent pour initial du présent produit pendant une période de cinq ans à...
