System Design - Valcom V-2000 Manual

E-KEY
OR PABX
NOTE; Additional power supplies required for large numbers of speakers.
Dimensions/Weight
•
7.75"H x 5.8"W x 2.6"D
(19.69cm H x 14.73cm W x 6.6cm D)
•
2.6 lbs. (1.18 kg)
Nominal Power Requirements
•
Voltage: 115 Vac
•
Current: .35 Amp
Environment
•
Temperature:
•
Humidity:
Nominal Specifications
Input Impedance:
Input Level:
Music Source Input Impedance:
Voice Switch Sensitivity:
Music Input Level:
Output Impedance:
Output Level:
DC Output:

SYSTEM DESIGN

General
The Valcom V-2000 Integrated Single Zone Page
Control Unit provides access to paging from a
standard PABX loop start trunk port, an Electronic
Key System C. O. line button, or a 1A2 Key System
C. O. line button (a 400 type line card is required). In
most cases access is also possible from a PABX or
Electronic Key System page port.
Electronic Key or PABX Access
When using the V-2000 with an electronic key system
or PABX the following equipment will be needed:
V-2000
INTEGRATED
SINGLE ZONE
PAGE SYSTEM

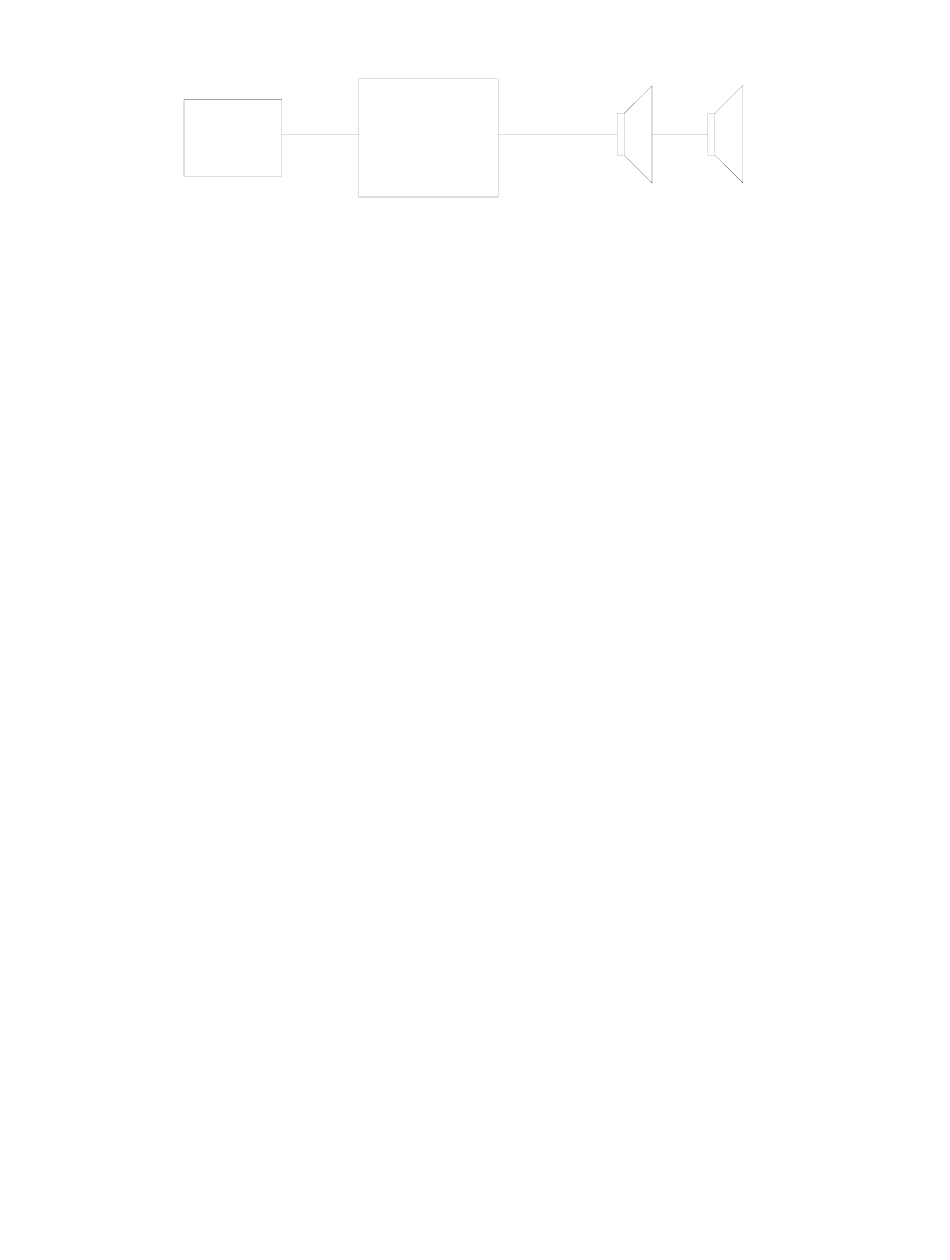

FIGURE 1 - TYPICAL INSTALLATION
0 to 40 Degrees C
0-85% non-precipitating
600 Ohms
-10dBm nominal
8 to 600 Ohms
-21dBm
-10dBm nominal
8 Ohms
-10dBm nominal
-24 Vdc at 600 mA
VALCOM ONE-WAY
AMPLIFIED SPEAKERS
1) 1 - V-2000 Integrated Single Zone Page Control
Unit
2) 1 - C. O. Line Circuit (Electronic key system) or
1 Loop Start Trunk Circuit (PABX)
3) Valcom One-Way Amplified Speaker Assemblies
(quantity and style determined by specific
installation).
Operation: Press the appropriate line key (electronic
key system) or dial the appropriate trunk access code
(PABX). You will immediately be connected to the
paging speakers. Make announcement. The V-2000
will automatically disconnect when you hang up.
Page Port Access
When accessing the V-2000 from a page port the
following equipment will be required:
1) 1 - V-2000 Integrated Single Zone Page Control
Unit
2) Telephone system page card (if required for
external page outputs).
3) Valcom One-Way
Assemblies (quantity and style determined by
specific installation).
Operation: Follow the telephone manufacturers
directions on how to access external paging. You
will immediately be connected to the paging speakers.
Make announcement. The V-2000 will automatically
disconnect when you hang up.
Background Music
Background music may be connected to the V-2000
when using any of the above configurations. The
background music will cut off automatically when the
party making the page is speaking.
2
Amplified Speaker
