Page 2: Table Of Contents

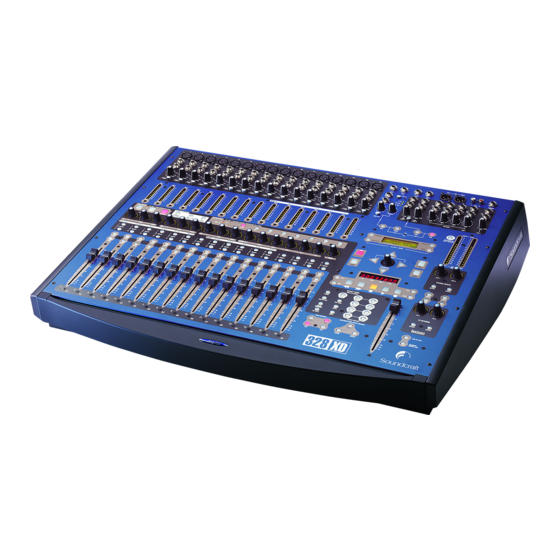

328XD AND 328XD AND 328XD AND KORG 1212 KORG 1212 KORG 1212 KORG 1212 Connecting the system 328XD Configuration Korg 1212 Configuration Using the 1212 with the 328XD Additional Information 1 1 1 1 Soundcraft 328XD and Korg 1212 Setup Guide... -
Page 3: Connecting The System
Besides the audio connections, the 328XD wordclock output should be connected to the 1212 wordclock input, to enable the 1212 to synchronize to the 328XD wordclock. In this configuration, the 328XD is wordclock master, and the 1212 is the wordclock client. 2 2 2 2 Soundcraft 328XD and Korg 1212 Setup Guide... -
Page 4: 328Xd Configuration
Set the desired wordlength on the 328XD with the PARAM encoder. Press the <MENU> button to return to the main menu. 3 3 3 3 Soundcraft 328XD and Korg 1212 Setup Guide... - Page 5 <ENTER> to confirm the setting. Press <MENU> to return to the menu pages. NOTE: If the S/PDIF input is not required, NOWHERE should be selected in the menu. 4 4 4 4 Soundcraft 328XD and Korg 1212 Setup Guide...
-
Page 6: Korg 1212 Configuration
The 1212 must be set up to receive the wordclock transmitted by the 328XD (via the BNC connection). Open the Korg 1212 Utility program, accessed via the Korg ‘1212 IO’ program group on the taskbar: 5 5 5 5 Soundcraft 328XD and Korg 1212 Setup Guide... - Page 7 Now the 1212 must be configured to playback at the same sample rate as the 328. Click on the ‘Sample Rate’ pull-down menu in the ‘Word Clock & Sample Rate’ section. Here the sample rate which the 1212 plays back can be set between 44.1kHz and 48kHz: 6 6 6 6 Soundcraft 328XD and Korg 1212 Setup Guide...
- Page 8 Now, every time that Windows is loaded the Korg 1212 will be automatically set to receive wordclock from its BNC input, and play back at the desired sample rate. 7 7 7 7 Soundcraft 328XD and Korg 1212 Setup Guide...
-
Page 9: Using The 1212 With The 328Xd
The desired setting can be configured via the ‘S/PDIF O/P Setup’ menu on the 328XD (see the 328XD User Guide for full instructions). Again, ensure that the relevant Korg drivers are fully installed for the software application to correctly access the 1212 S/PDIF I/O. 8 8 8 8 Soundcraft 328XD and Korg 1212 Setup Guide... -
Page 10: Additional Information
ADDITIONAL INFORMATION If used in conjunction with an ADAT, the system should be connected as follows: 9 9 9 9 Soundcraft 328XD and Korg 1212 Setup Guide... - Page 11 POTTERS BAR HERTS EN6 3JN UK TEL: +44 (0) 1707 665000 FAX: +44 (0) 1707 660742 EMAIL: info@soundcraft.com SOUNDCRAFT USA 1449 DONELSON PIKE NASHVILLE TN 37217 USA TEL: 1-615-360-0471 FAX: 1-615-360-0273 EMAIL: soundcraft-usa@harman.com www.soundcraft.com Soundcraft 328XD and Korg 1212 Setup Guide...
