Mercury MTM01 User Manual

Hide thumbs Also See for MTM01:
Table of Contents

Advertisement

Quick Links

Item ref: 600.100UK

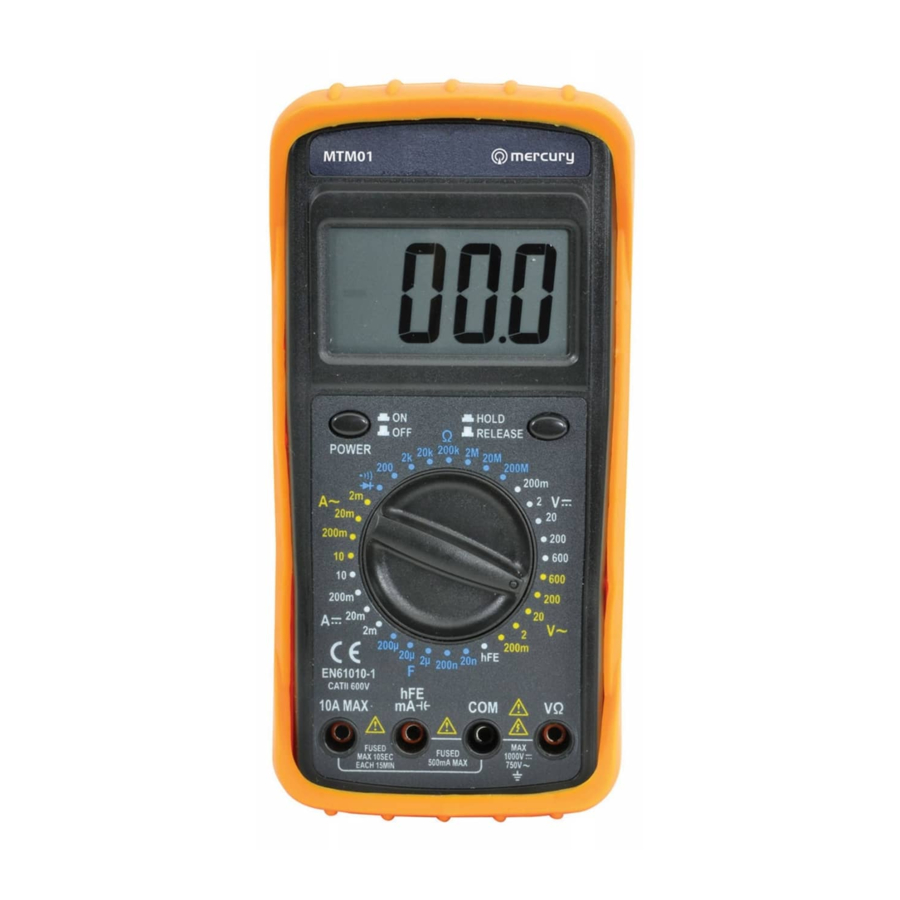

MTM01
Digital Multimeter
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MTM01 and is the answer not in the manual?

Questions and answers

Related Manuals for Mercury MTM01

Summary of Contents for Mercury MTM01

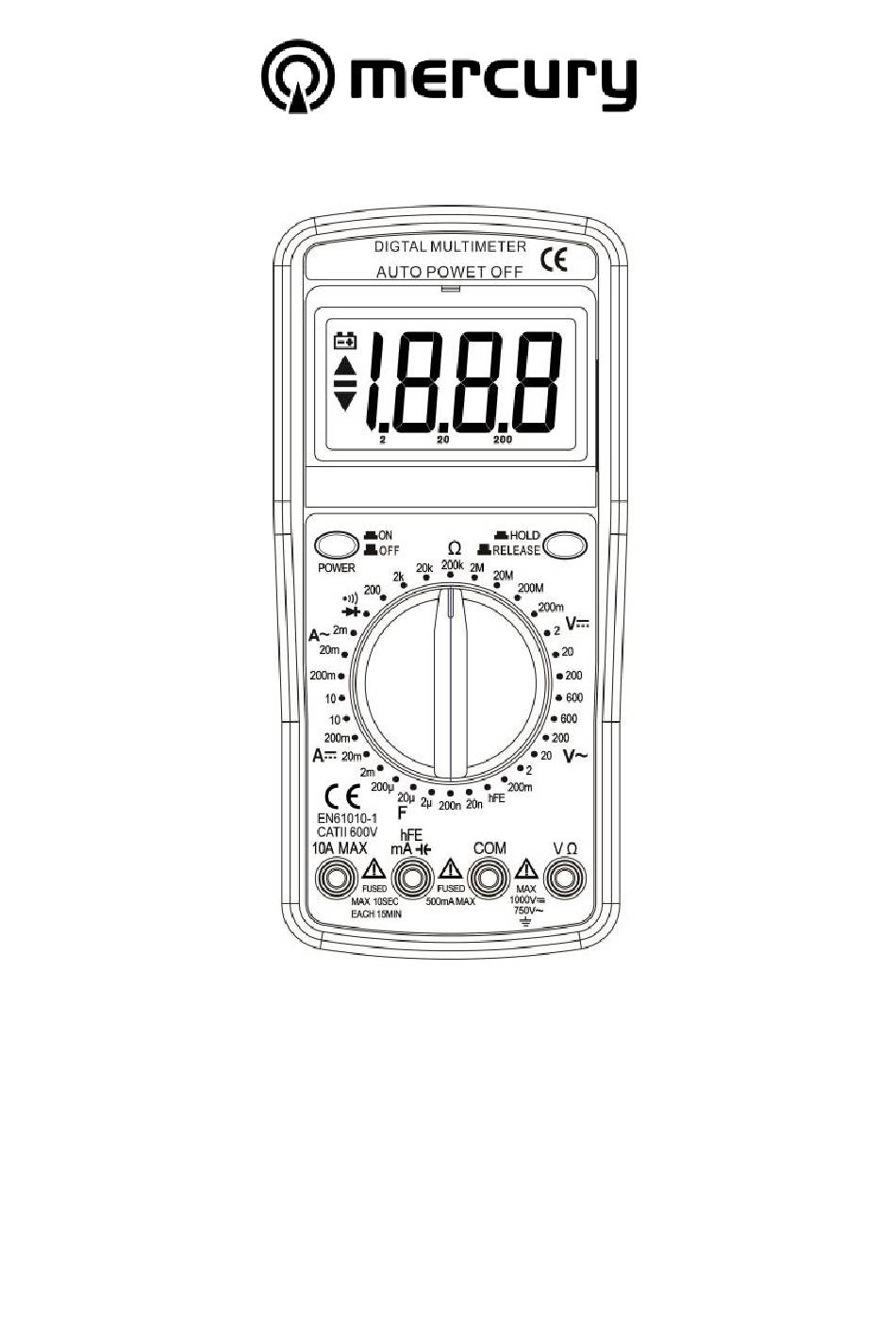

  • Page 1 Item ref: 600.100UK MTM01 Digital Multimeter User Manual...
  • Page 2 The performance of the tester may deteriorate after being exposed to any of these elements. • When using the test leads, keep your fingers behind the finger guards. • Disconnect circuit power and discharge all high-voltage capacitors before testing resistance, continuity, diodes.F 600.100UK MTM01 User Manual...
  • Page 3 Over-load indication: “1” is displayed Operating Environment: 0ºC-40ºC, at <80%RH Storage Environment: -10ºC-50ºC, at <85%RH Power: 9Vdc (1 x PP3 battery supplied) Low battery indication: “ ” Dimensions: 190 x 90 x 33mm Weight: 190g (including battery) 600.100UK MTM01 User Manual...
  • Page 4 Power HOLD Button Button Range switch A/mA terminal terminal VΩ terminal terminal Multi-function adapter 600.100UK MTM01 User Manual...

  • Page 5: Resolution Accuracy

    500V ±(2.0% of rdg + 10D) Input Impedance: 10MΩ Frequency Range: 40Hz ~ 400Hz Overload Protection: 1000V DC or 750V AC rms Response: Average, calibrated in rms of sine wave Max. Input voltage: 750V AC rms 600.100UK MTM01 User Manual...

  • Page 6: Range Description

    ±(2.0% of rdg + 2D) 10mA ±(2.5 of rdg + 10D) Overload Protection: mA: F0.5A/600V fuse (DT9205A, DT9207A, DT9208A) 10A: F10A/600V fuse Voltage Drop: 200mV Frequency Range: 40Hz ~ 400Hz Response: Average, calibrated in rms of sine wave 600.100UK MTM01 User Manual...
  • Page 7 ±[5%*(rdg-10) + 10D) Open Circuit Voltage: about 3V Overload Protection: 250V DC/AC rms Capacitance RANGE RESOLUTION ACCURACY 20nF 10pF ±(4.0% of rdg + 5D) 200nF 100pF 20uF 10nF Overload Protection: F0.5A/600V fuse Over-load protect: 250V DC/AC rms 600.100UK MTM01 User Manual...

  • Page 8: Voltage Measurement

    AC voltage measurement). CURRENT MEASUREMENT 1. For reading less than 200mA connect red lead to “mA” and black lead to “COM” (for measurements between 200mA and 10A, connect red lead to “10A”) ensure jacks are fully depressed. 600.100UK MTM01 User Manual...

  • Page 9: Resistance Measurement

    For resistance measurements >1MΩ, the meter may take a few seconds to stabilize reading. This is normal for high-resistance measurement. • When the input is not connected, i.e. at open circuit, the symbol “1” will be displayed as an over range indicator. 600.100UK MTM01 User Manual...

  • Page 10: Capacity Measurement

    1. Connect red lead to “VΩmA”, black lead to “COM”. 2. Set RANGE switch to “ ” position. 3. Connect the red test lead to the anode of the diode to be measured and black test lead to cathode. 600.100UK MTM01 User Manual...

  • Page 11: Transistor Hfe Measurement

    4) The meter is protected by fuse: A) mA: F0.5A/600V Fast, Breaking capacity is 10KA, dimensions are 20 x 5mmØ. B) 10A: F10A/600V Fast, Breaking capacity is 10KA, dimensions are 20 x 5mmØ. 600.100UK MTM01 User Manual...
  • Page 12 The goods must be disposed of according to your local council guidelines. Errors and omissions excepted. Copyright© 2020 AVSL Group Ltd, Unit 2 Bridgewater Park, Taylor Road, Trafford Park, Manchester. M41 7JQ. 600.100UK MTM01 User Manual...
