Summary of Contents for Mercury CMT01

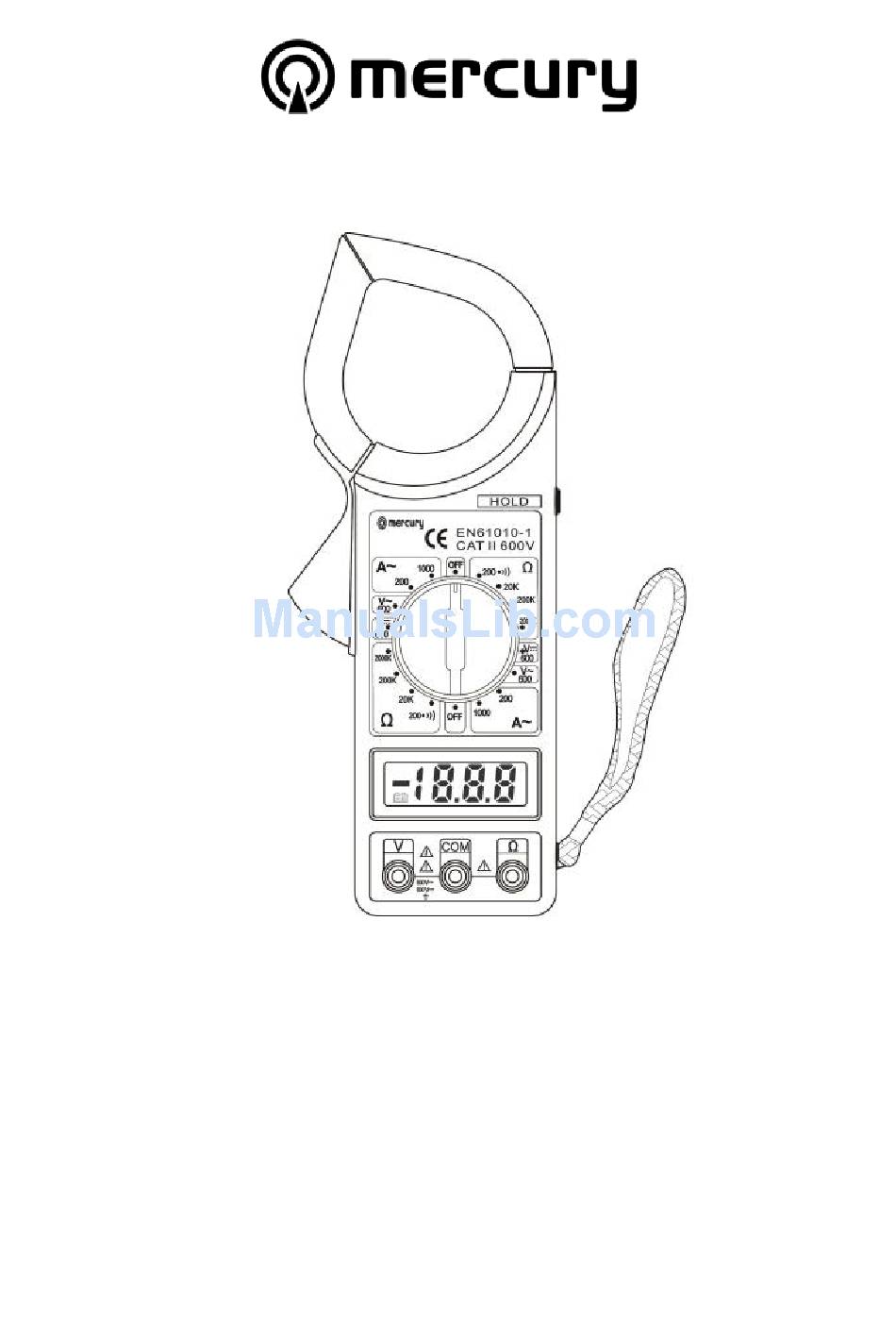

- Page 1 Item ref: 600.103UK CMT01 DIGITAL CLAMP MULTITESTER User Manual...
- Page 2 The performance of the tester may deteriorate after being exposed to any of these elements. When using the test leads, keep your fingers behind the finger guards. Disconnect circuit power and discharge all high-voltage capacitors before testing resistance, continuity, diodes. CMT01 User Manual...
-
Page 3: General Specifications
2 times per second Over-load indication: “1” is displayed Operating Environment: 0ºC-40ºC, at <80%RH Storage Environment: -10ºC-50ºC, at <85%RH Power: 9Vdc (1 x PP3 battery supplied) Low battery indication: “ ” Dimensions: 230 x 68 x 37mm Weight: 203g CMT01 User Manual... - Page 4 Transformer Data hold button Trigger Hand Strap COM jack Ω jack V jack Multitester compatible table CMT01 User Manual...
-
Page 5: Audible Continuity
± (1.2% of rdg + 5D) Frequency Range: 45Hz ~ 450Hz Overload Protection: 250Vrms AC Response: Average, calibrated in rms of sine wave Audible Continuity RANGE DESCRIPTION Built-in buzzer sounds if resistance is less than 30±20Ω Overload Protection: 250V DC/AC rms CMT01 User Manual... -
Page 6: Operating Instructions
3. Connect test leads to device or circuit being measured. 4. Turn on power of the device or circuit being measured voltage value will appear on Digital Display along with the voltage polarity. CMT01 User Manual... - Page 7 If the circuit resistance is lower than about 30±20Ω, the built-in buzzer will sound. BATTERY REPLACEMENT 1) Battery and fuse replacement should only be done after the test leads have been disconnected and power is off. 2) Loosen screw with suitable screwdriver and remove case. CMT01 User Manual...
- Page 8 The goods must be disposed of according to your local council guidelines. Errors and omissions excepted. Copyright© 2014. AVSL Group Ltd. CMT01 User Manual...
