INSTALLATION OVERVIEW
1.
Choose the position of firebox and flue ensuring that you follow
the clearances described within this section
2.
Install the suspension bracket
3.
Install the internal lower flue
4.
Install the flue connector
5.
Install the external insulated flue & anti-down draught cowl
6.
Engage the firebox
7.
Ensure the floor has adequate protection
14
installation and user manual

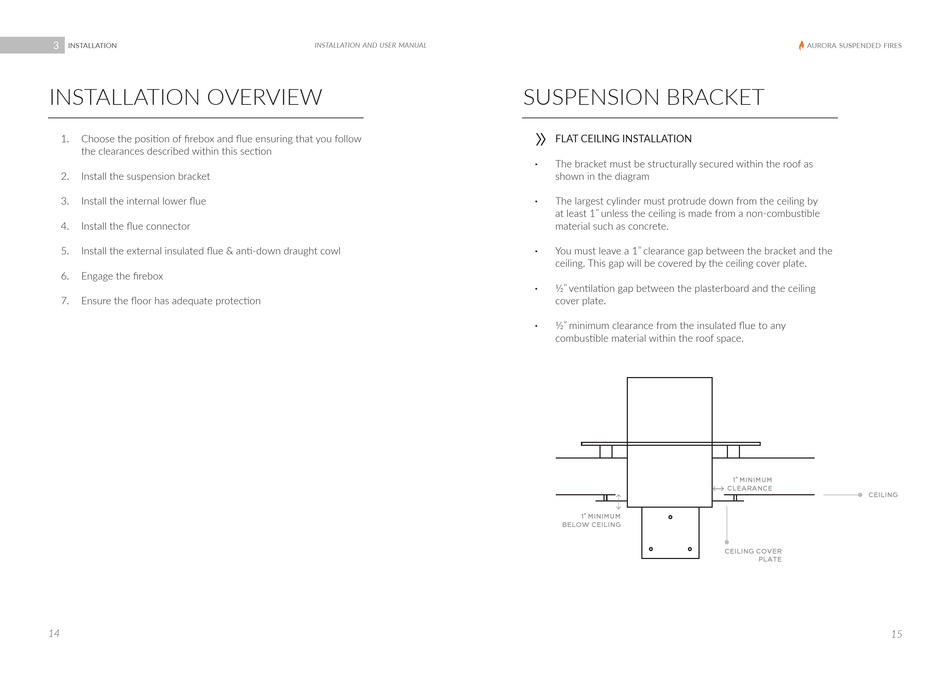

SUSPENSION BRACKET
»
FLAT CEILING INSTALLATION
·
· ·
The bracket must be structurally secured within the roof as
shown in the diagram
·
· ·
The largest cylinder must protrude down from the ceiling by
at least 1͈ unless the ceiling is made from a non-combustible
material such as concrete.
·
· ·
You must leave a 1͈ clearance gap between the bracket and the
ceiling. This gap will be covered by the ceiling cover plate.
·
· ·
1/2͈ ventilation gap between the plasterboard and the ceiling
cover plate.
·
· ·
1/2͈ minimum clearance from the insulated flue to any
combustible material within the roof space.
1̎ MINIMUM
BELOW CEILING
aurora suspended fires
1̎ MINIMUM
CLEARANCE
CEILING
CEILING COVER
PLATE
15
