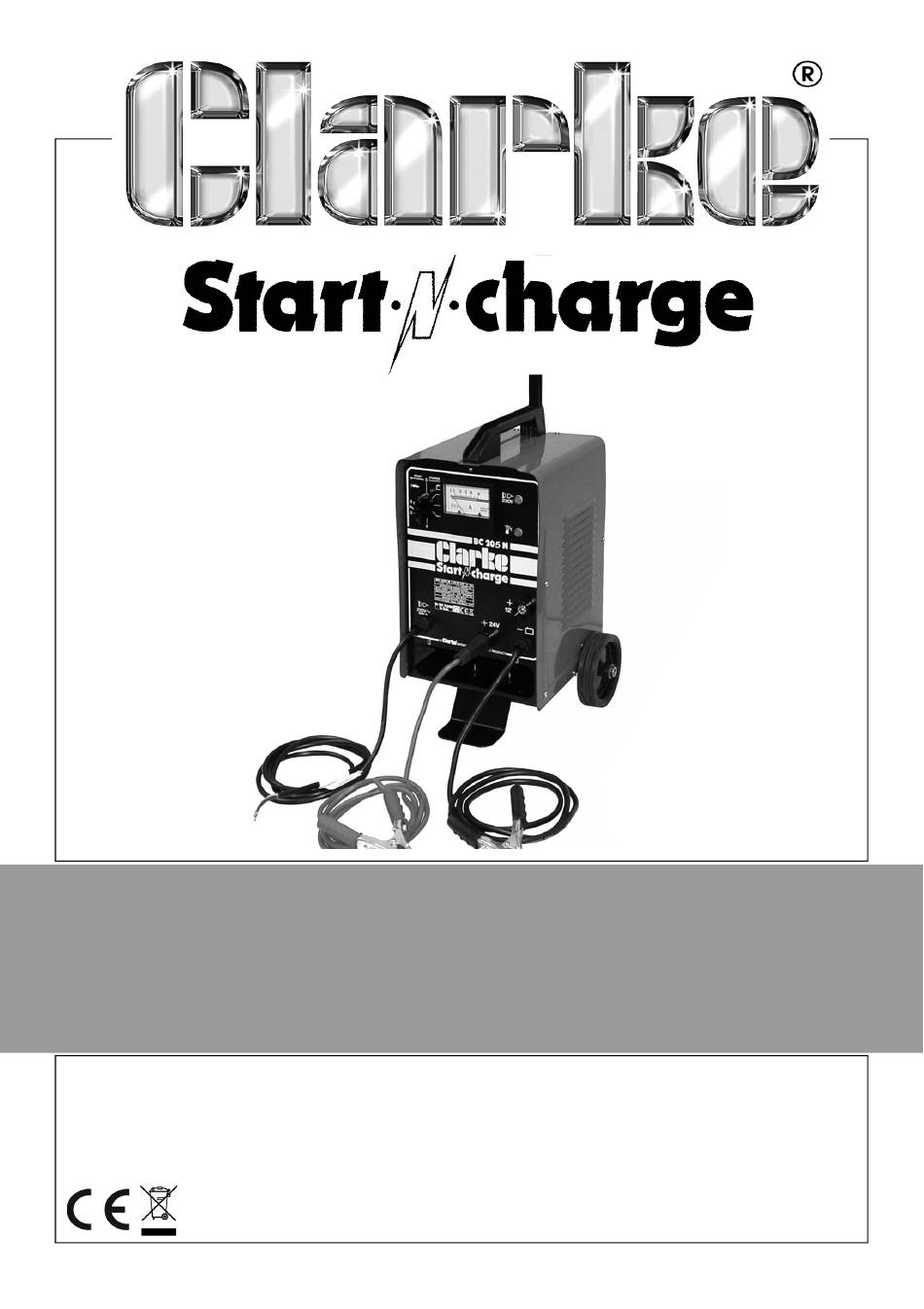

- Page 1 STARTER/CHARGER MODEL NO: BC205N PART NO: 6261032 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC01/19...
-
Page 2: Environmental Recycling Policy
INTRODUCTION Thank you for purchasing this CLARKE Starter/ Charger. This unit is suitable for charging both 12 Volt and 24 Volt lead acid batteries and for providing a boost charge in the case of a flat battery. Please read this manual thoroughly before attempting to operate and carefully follow all instructions given. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS WARNING: HIGHLY INFLAMMABLE HYDROGEN GAS IS RELEASED IN THE PROCESS OF BATTERY CHARGING. ALWAYS REMEMBER TO SWITCH OFF THE CHARGER/STARTER FIRST TO AVOID SPARKING. Battery acid is very corrosive. If spilled, clean the area immediately and wash with water. If battery acid comes into contact with the eyes, get medical help immediately. -
Page 4: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE HEATER TO THE MAINS SUPPLY. Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved 13 amp BS 1363 plug or a suitably fused isolator switch. If the plug has to be changed because it is not suitable for your socket, or because of damage, it must be removed and a replacement fitted, following the wiring instructions shown below. - Page 5 OVERVIEW The unit is provided with a pair of leads complete with clamps for connection to a car battery and is provided with appropriate outlet connections as shown below. The charging rate as displayed on the ammeter. The illustration below identifies the various components. ASSEMBLY 1.
- Page 6 PROCEDURE FOR NORMAL CHARGING WARNING: NEVERATTEMPT TO RE-CHARGE NON-RECHARGEABLE BATTERIES. CAUTION: SOME ELECTRONIC EQUIPMENT CAN BE DAMAGED BY CHARGING OR USE OF START FACILITY. CHECK YOUR VEHICLE HANDBOOK BEFORE USING YOUR STARTER/CHARGER. IF IN DOUBT CONSULT THE VEHICLE MANUFACTURER. NOTE: Before charging or boosting, ensure that, where applicable, the cells are filled with electrolyte to the correct level, by adding distilled water.
- Page 7 NOTES ON CHARGING PROCEDURE • A complete charge is best done slowly in order to protect your battery so we recommend the MIN setting as described above. A complete charge may take up to 10 hours. • If a low amperage reading (2 amps or less) is registered on the gauge at either the MIN or MAX setting, this may indicate that the battery is either (a) already fully charged or (b) at the end of its useful life and in need of replacement.
- Page 8 IMPORTANT: You must switch the amperage control switch back to the off position after a maximum of 10 seconds on boost start - wait at least 30 seconds before repeating. Failure to do this may damage your battery and the charger unit, and may invalidate your guarantee. THERMAL OVERLOAD If the starter/charger is overloaded at any time, a thermal cut out will automatically come into operation, rendering it inoperative.
-
Page 9: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 10 PARTS LIST - BC205N No Description Part No No Description Part No Upper panel EM33705007 16 Earth clamp 120A EM22110067 Handle EM21600004 17 Red cable EM43200026 Back panel EM33715037 18 Dinse plug EM22100001 Rectifier pms EM22400096 19 Orange pilot lamp EM22610012 Thermostat EM04600113...
-
Page 11: Specifications
WIRING CIRCUIT DIAGRAM BC205N SPECIFICATIONS Part No 6261032 Dimensions (D x W x H) 345 x 390 x 822 mm Weight 21 kg Supply Voltage @50Hz 230 V AC Max charge 30A (continuous) Max Boost 200A Boost/Charge 12V/24V Duty Cycle Max 10 secs on /30 secs off Parts &...
